Cisco WS-C2960-48TC-S Catalyst 2960 48-Port Gigabit Ethernet Switch

Share to:

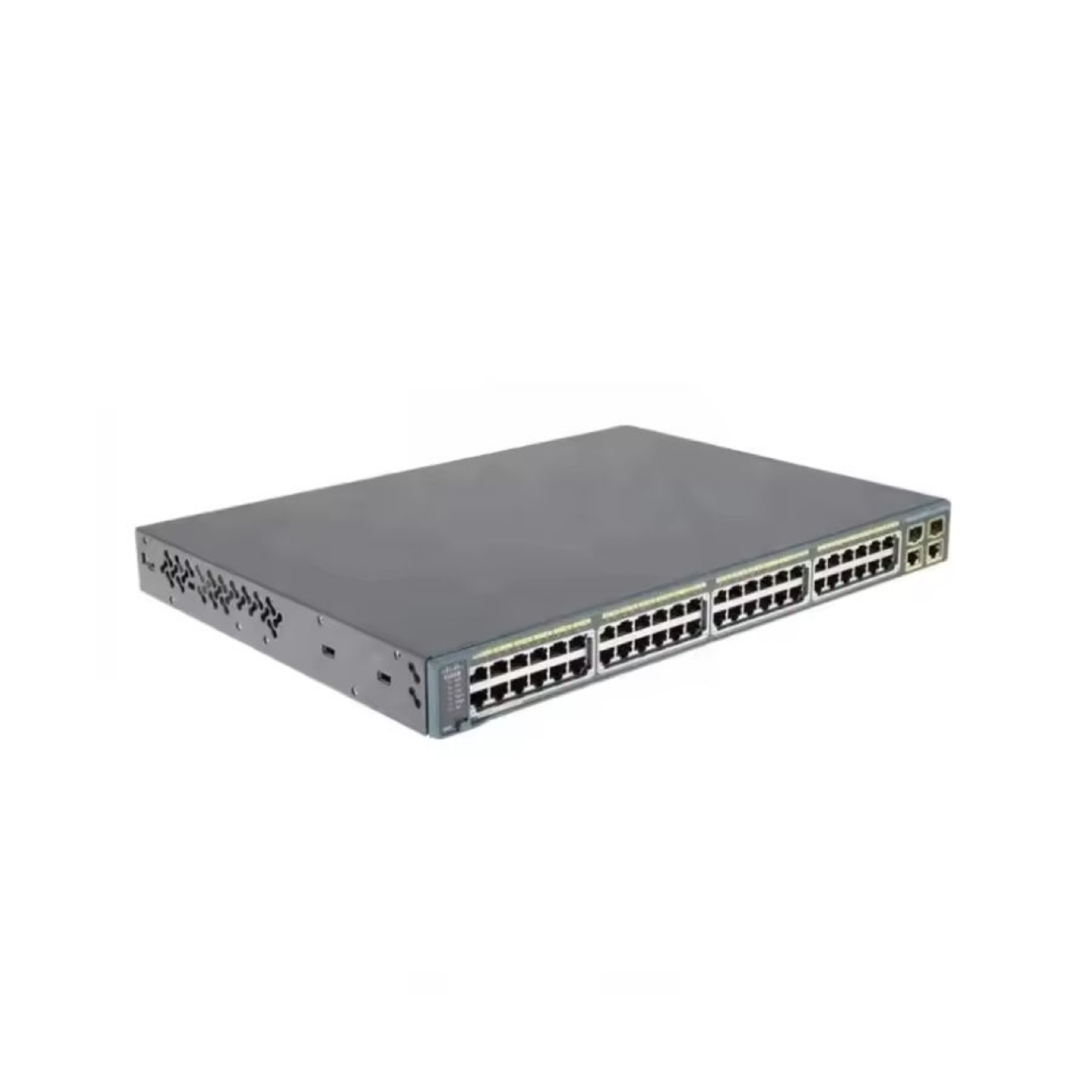

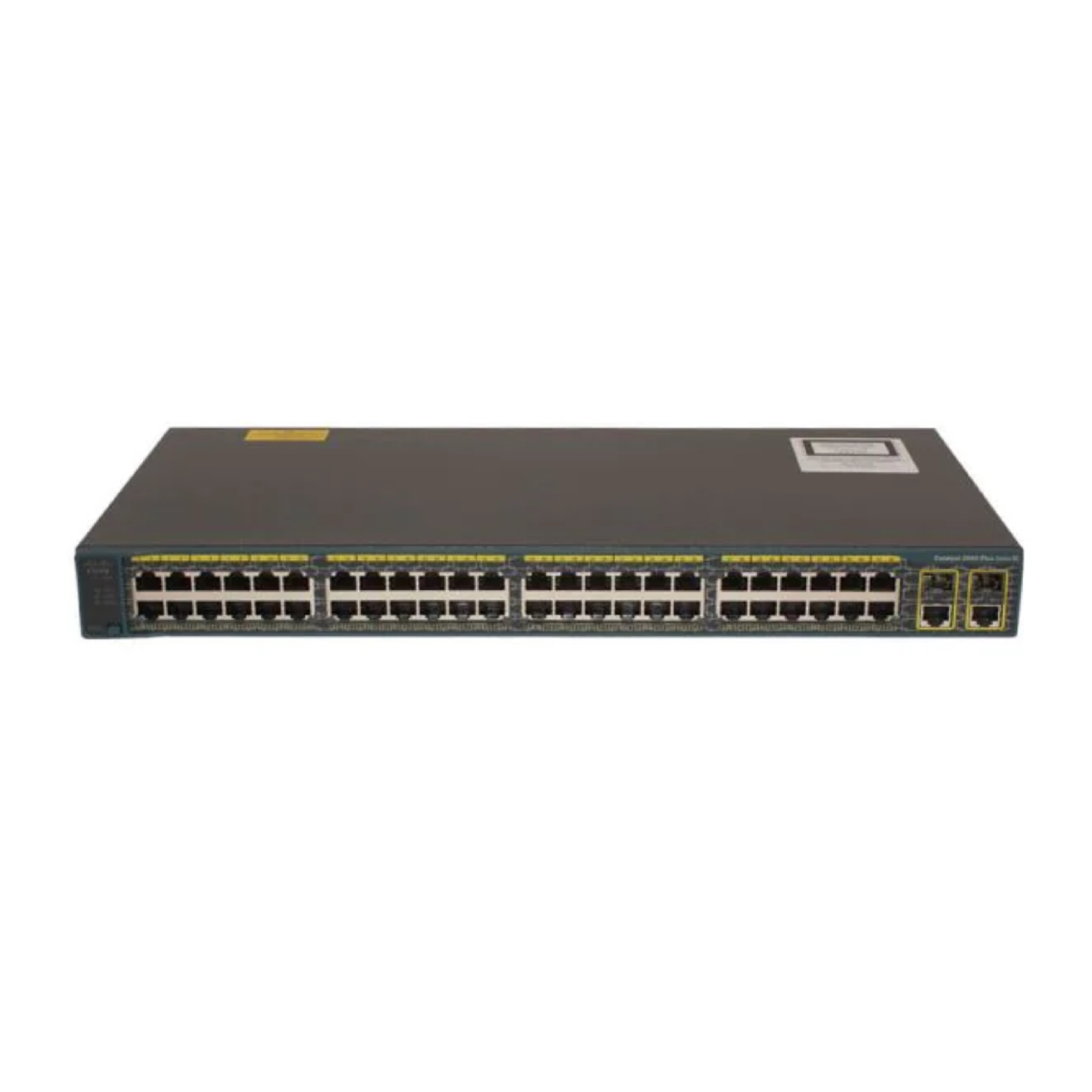

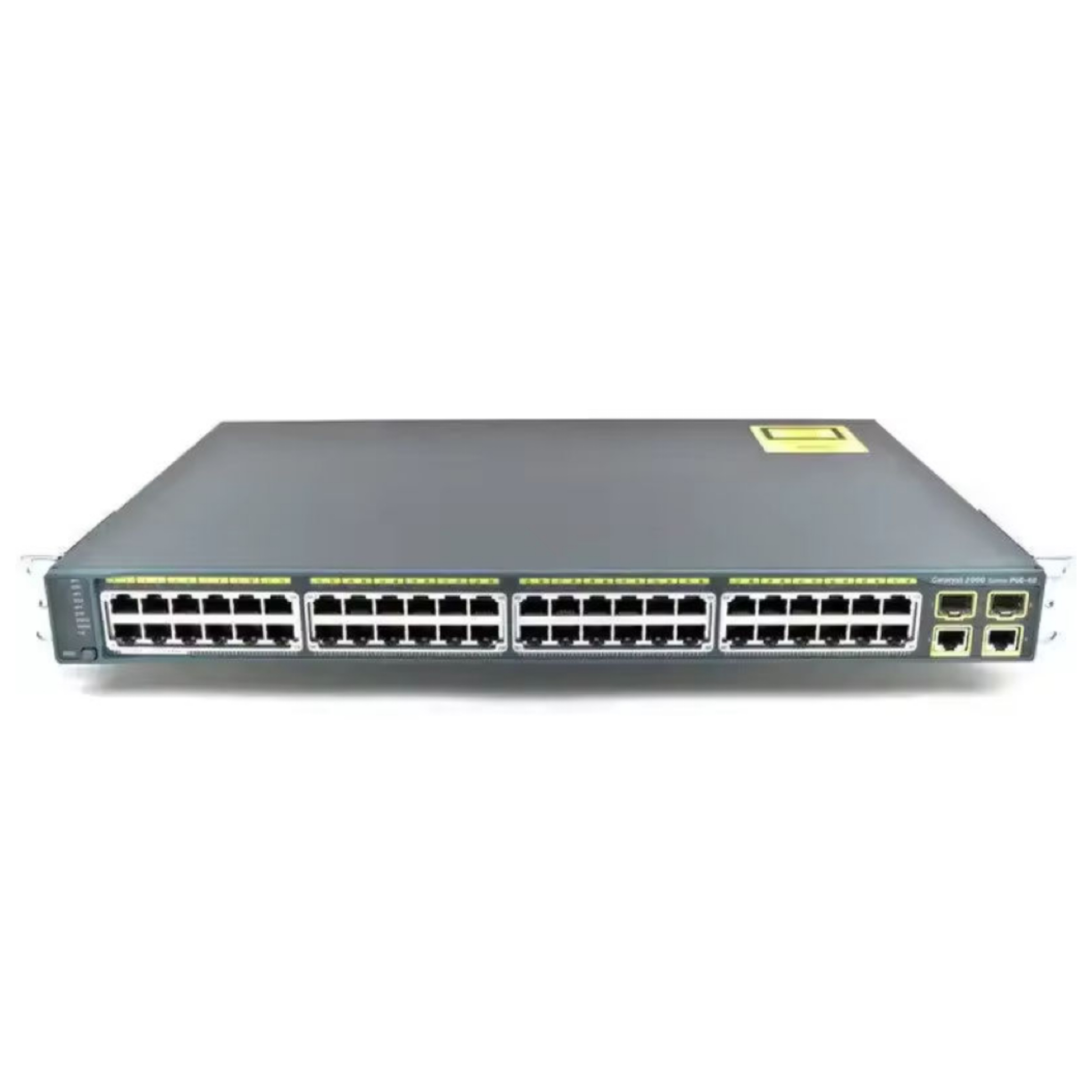

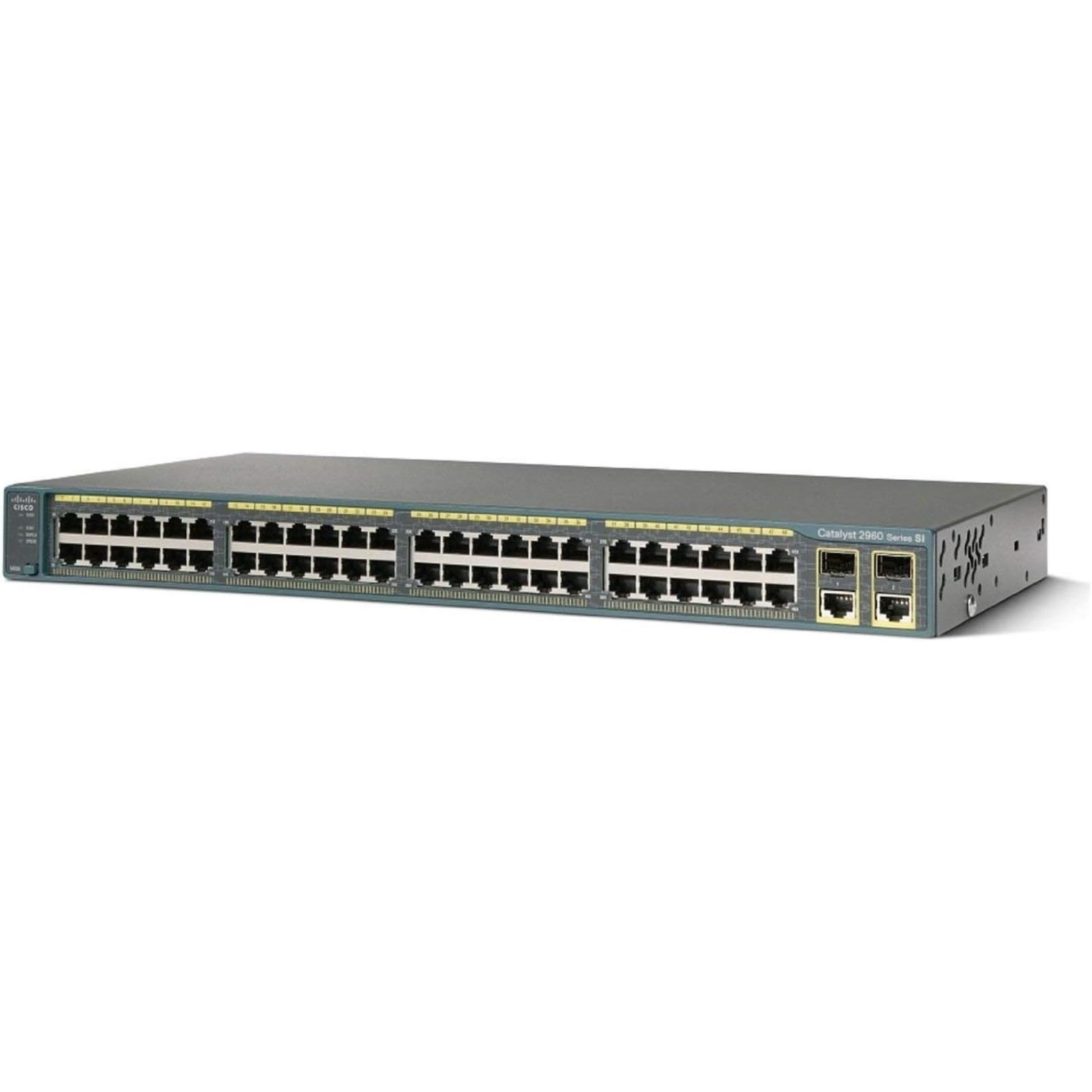

Cisco WS-C2960-48TC-S Catalyst 2960 48-Port Gigabit Ethernet Switch

The Cisco WS-C2960-48TC-S is a reliable Layer 2 managed Ethernet switch designed to provide secure, high-performance network access for small and medium-sized businesses, enterprise branch offices, educational institutions, and commercial environments. Equipped with 48 Fast Ethernet (10/100 Mbps) ports and 2 dual-purpose uplink ports (10/100/1000 RJ-45 or SFP), it offers flexible connectivity for expanding network infrastructure while ensuring stable and efficient data transmission. Powered by Cisco IOS Software, the WS-C2960-48TC-S supports advanced features such as VLANs, QoS, Access Control Lists (ACLs), Spanning Tree Protocol (STP), port security, IGMP snooping, and comprehensive network management through CLI, SNMP, and Cisco Network Assistant. Its enterprise-grade security and intelligent traffic management help optimize network performance, protect sensitive data, and simplify administration. Built with Cisco's proven hardware reliability and energy-efficient design, the switch delivers long-term operational stability and low maintenance costs, making it an ideal solution for edge access networks, office LAN deployments, IP telephony, wireless access, and surveillance applications. As an experienced global supplier, we provide genuine Cisco WS-C2960-48TC-S switches with competitive pricing, fast worldwide shipping, professional technical support, and flexible solutions for distributors, system integrators, resellers, and enterprise customers.

Model:
WS-C2960-48TC-S
Brand:
Cisco
Condition:
Original Used
Warranty:
3 months

Availability:

Quantity:



Inquire Add to Basket

Item	Official Specification
Model Number	WS-C2960-48TC-S
Product Series	Cisco Catalyst 2960 Plus Layer 2 Managed Switch
IOS Image	LAN Lite IOS Software
Application Scenarios	Small Office, Branch Workgroup, Desktop Access, Low-Density Office Network
Warranty	90-Day Cisco Limited Hardware Warranty
Management Methods	Web UI, CLI, RJ45 Console Port, SNMP v1/v2c/v3, Cisco Network Assistant
Stacking Support	Non-stackable
Access Ports	48 × 10/100BASE-TX Fast Ethernet RJ45 (No PoE)
Uplink Ports	2 × Dual-purpose Combo GE Ports (10/100/1000BASE-T RJ45 + 1G SFP slot, one active at a time)
PoE Support	No PoE capability, zero PoE power budget
Supported Cabling	Cat5, Cat5e, Cat6
Switching Capacity	16 Gbps
64-byte Packet Forwarding Rate	10.1 Mpps
MAC Address Table	8,000 MAC entries
System Memory	128 MB DRAM, 64 MB Flash Memory
Jumbo Frame	Up to 9016 bytes
QoS	4 hardware queues per port, WRR scheduling, 802.1p DSCP mapping
VLAN Support	Max 4096 VLAN IDs, up to 64 active VLANs, 802.1Q tagging
Spanning Tree	STP, RSTP, PVST+
Link Aggregation	IEEE 802.3ad LACP, up to 6 LAG groups
Multicast	IGMP Snooping v1/v2
Port Features	Port mirroring, port isolation, broadcast storm control, port speed limitation
Security Functions	802.1X authentication, port security, SSH, HTTPS, ACL, DoS protection
Cooling	Internal fixed-speed fan
Physical Dimensions (H × W × D)	4.4 cm × 45.0 cm × 33.2 cm (1.73 in × 17.70 in × 13.07 in), 1U rackmount
Net Weight	4.54 kg (10.0 lbs)
Power Input	Built-in universal AC power supply, 100–240V AC, 50/60Hz
Typical Power Consumption	32W
Operating Environment	Temperature: 0°C ~ 45°C; Humidity: 10%–90% non-condensing; Max altitude 3000m
Storage Environment	Temperature: -25°C ~ 70°C; Humidity: 10%–95% non-condensing
Regulatory Certifications	CE, FCC Class A, UL, cUL, CSA, TUV GS, VCCI, IEC 60950-1
