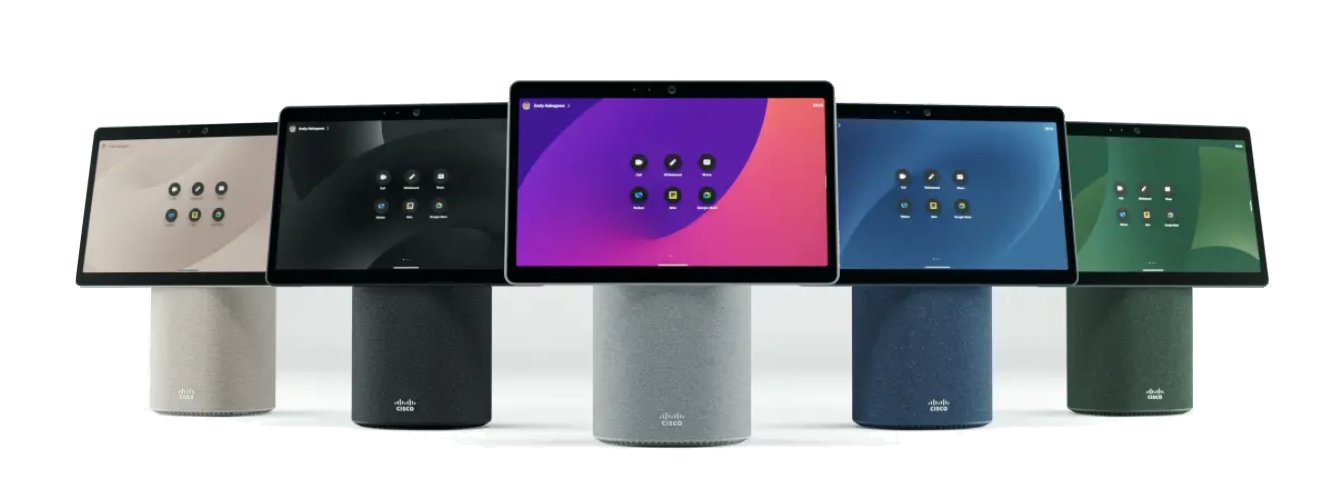

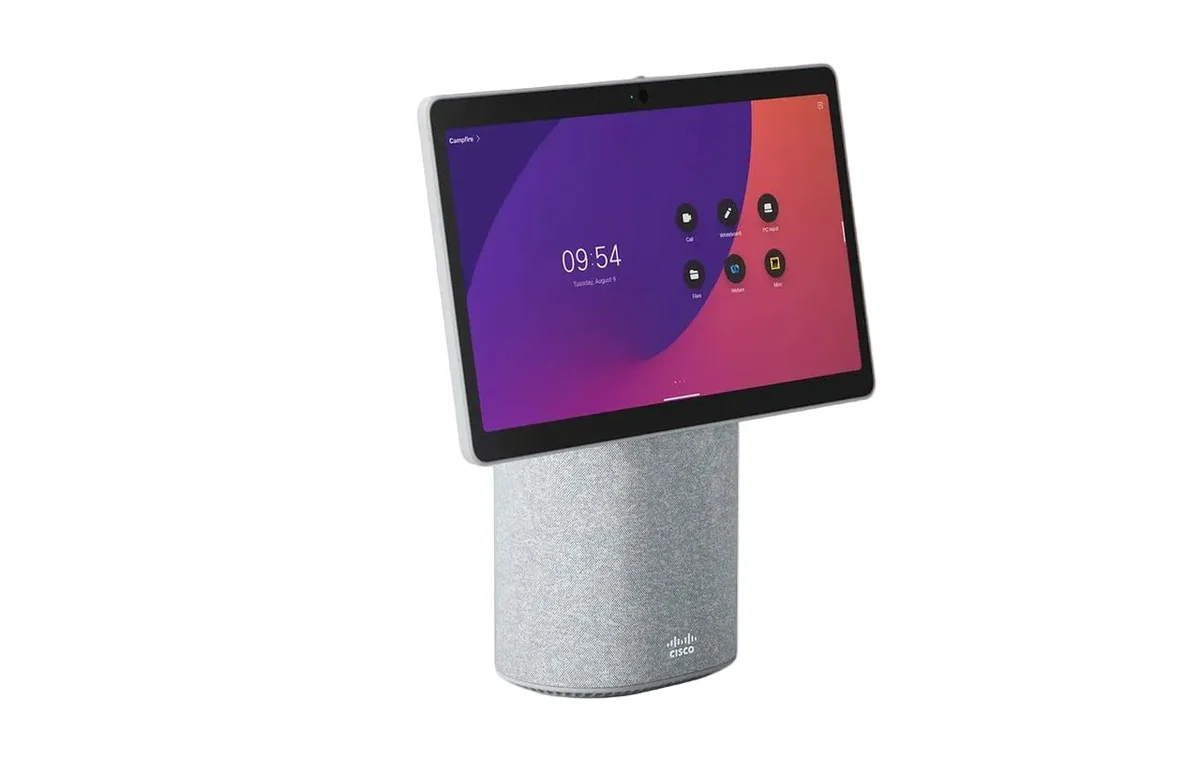

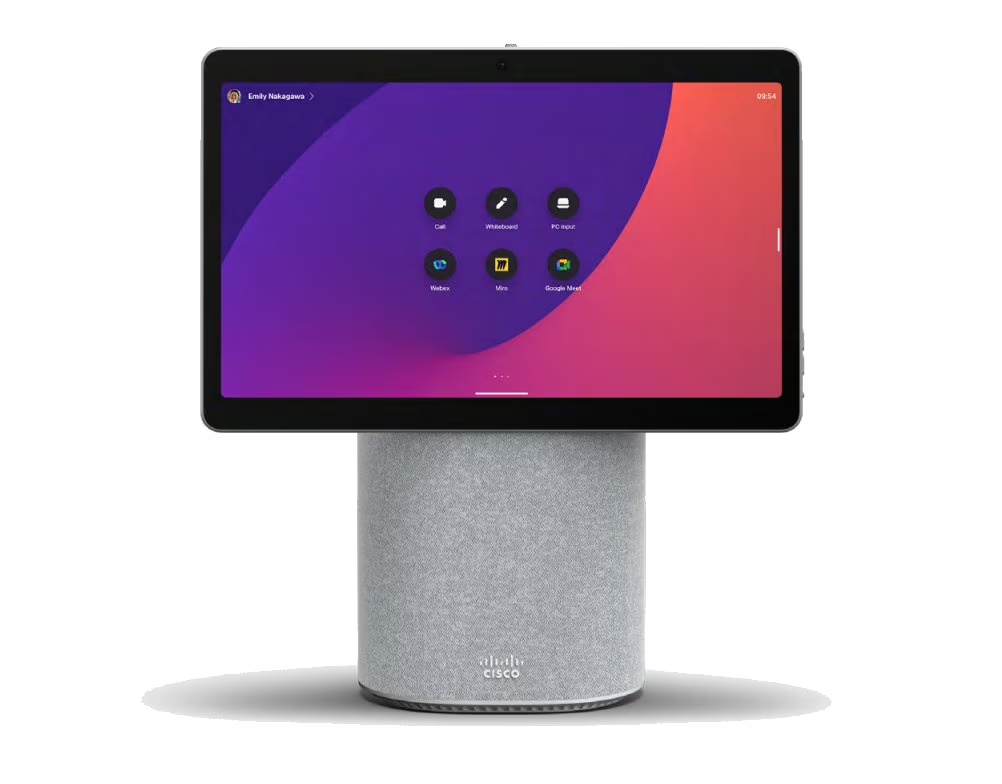

The Cisco CS-DESKMINI-K9 is a compact all-in-one collaboration endpoint designed to deliver high-quality video conferencing, wireless content sharing, and intelligent meeting experiences for personal workspaces, executive offices, focus rooms, and small meeting spaces. Featuring an integrated high-definition camera, crystal-clear audio system, and AI-powered collaboration capabilities, it enables users to participate in virtual meetings with exceptional video and voice quality while minimizing background noise and distractions. Seamlessly compatible with Cisco collaboration solutions and supporting interoperability with leading unified communications platforms, the CS-DESKMINI-K9 provides a flexible and secure meeting experience for hybrid work environments. Its sleek, space-saving design simplifies deployment, reduces desktop clutter, and offers intuitive plug-and-play operation, making it an ideal solution for modern enterprises seeking reliable, professional-grade desktop collaboration. Built with Cisco's industry-leading security, enterprise-class reliability, and centralized management capabilities, the Cisco CS-DESKMINI-K9 helps organizations improve communication efficiency, enhance team productivity, and deliver a consistent collaboration experience across distributed workforces.
CS-DESKMINI-K9
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Part Number | CS-DESKMINI-K9 |
Product Name | Cisco Webex Desk Mini All-in-One Video Conferencing Device |
Primary Application | Personal Remote Workstation, Huddle Rooms, Office Individual Desks, Hybrid Meeting Spaces |
Operating System | Cisco RoomOS |
Display Panel | 15.6-inch IPS LCD, 16:9 Aspect Ratio, 1920×1080 Full HD Resolution |
Display Parameters | 250 cd/m² Brightness, 700:1 Contrast Ratio, ±85° Horizontal/Vertical View Angle, 72% NTSC / 95% sRGB Color Gamut, 16.7M Colors |
Touch Screen | Projected Capacitive Multi-Touch |
Integrated Camera | 8MP 1/3.2" CMOS Sensor, 64° Horizontal / 50° Vertical FOV, f/2.0 Aperture, Auto Focus & Auto Light Correction, Physical Privacy Shutter with Status LED |
Camera AI Functions | Auto Framing, Speaker Tracking, Intelligent Low-Light Optimization |
Live Video Output | Up to 1080p30 |
Content Sharing Resolution | Up to 4K UHD (3840×2160) at 30fps |
Video Codecs | H.263, H.264 AVC |
Audio Hardware | 3-Element Beamforming Microphone Array, Built-in Stereo Speakers, Noise & Echo Cancellation |
Supported Audio Codecs | G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
Network Connectivity | 1× Gigabit RJ45 Ethernet (10/100/1000 Mbps), Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0 |
Supported Call Protocols | SIP, H.323, WebRTC |

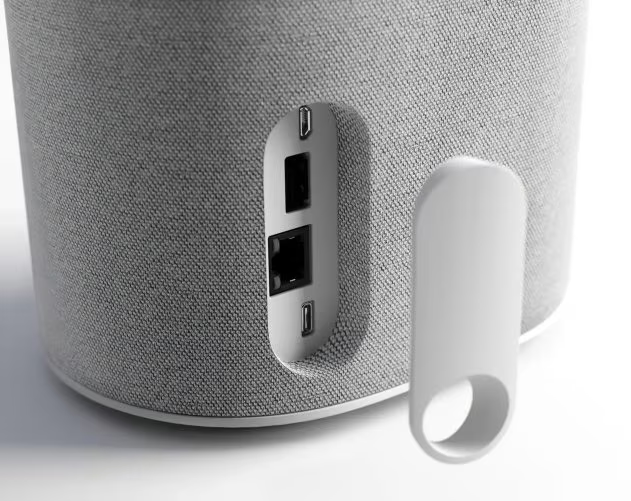

Physical Ports | 1× USB-C (BYOD Video/Audio/Data), 1× USB Type-A, 1× Micro-B USB (Service Only), Kensington Lock Slot |
Compatible Meeting Platforms | Native Webex, Microsoft Teams, Zoom, Google Meet, Third-Party WebRTC Applications |
Device Management | Cisco Control Hub Cloud Management, Local Web Admin Interface, SSH |
Physical Dimension (W × D × H) | 371 mm × 135 mm × 413 mm (14.6 × 5.3 × 16.25 in) |
Unit Net Weight | 3.9 kg (8.5 lbs) |
Package Dimension | 546 mm × 480 mm × 280 mm (21.4 × 18.8 × 11 in) |
Package Gross Weight | 8.04 kg (17 lbs) |
Available Colors | Carbon Black, First Light Gray |
Power Supply | Built-in Universal AC Power, 100–240V AC, 50/60Hz |
Typical Power Consumption | 7.5 W |
Operating Environment | 0°C ~ 35°C Ambient Temperature, 20%–90% Non-Condensing Humidity |
Storage & Transport Temp | -20°C ~ 60°C, 10%–90% Non-Condensing Humidity |
Standard Warranty | 1-Year Cisco Hardware Limited Warranty |
Regulatory Certifications | CE, FCC, UL, RoHS Compliant |
Standard Box Contents | Webex Desk Mini Host, USB-C Cable, AC Power Cable, Ethernet Cable |
