Deliver a Complete Video Solution for Medium and Large Rooms ZVC500 For Yealink

  • ZVC500

  • Yealink

  • Original New

  • 1 Year

Availability:
Quantity:

Product Descriptio

Deliver a Complete Video Solution for Medium and Large Rooms
ZVC500
In partnership with Zoom, the Yealink video solution ZVC500 & ZVC800 Zoom Rooms Kits come fully integrated with Zoom Rooms and include pre-installed Zoom Rooms software. Certified by Zoom, Yealink offers the Zoom Rooms kits to fit the meeting scenario needs in medium and large rooms. The solution delivers premium audio and video quality thanks to the combination of the Yealink CP960 Conference Phone and Yealink UVC50/UVC80 optical PTZ cameras, which work in tandem to provide users a native Zoom Rooms experience.

Key Features
1.Total Device Package Offer
Yealink delivers a complete Zoom Rooms package containing a full hardware suite (MCore, camera, audio devices) as well as the requisite software and license, simplifying the purchasing process and deployment while making the after-sales service experience more convenient than ever.
2.Simple to Deploy, Easy to Use
Yealink one-cable technology eliminates the need for a traditional USB cable from the television area to the conference table area, greatly simplifying deployment. The Yealink CP960 Conference Phone further declutters the conference area by uniting microphones, speaker and meeting console into a single package. When serving as a meeting console, the five-inch multi-touch screen display allows users to join the meeting, add participants, adjust volume and control the PTZ (Pan, Tilt, Zoom) of the camera, making meeting management a snap
3.Premium Audio and Video Meeting Experience
Featuring a built-in three-microphone array, the Yealink CP960 Conference Phone ensures a 360-degree voice pickup range with up to a 20-foot (six-meter) radius. Thanks to Yealink Noise Proof Technology, background noise is minimized so that everyone in the room can be heard clearly. By adding the two CPW90 wireless expansion microphones, the CP960 can provide up to a 40-foot (12-meter) voice pickup radius without any additional wiring. Yealink UVC50/UVC80 optical PTZ camera delivers sharp, smooth and stable video with a deep focus field. The wide-angle horizontal field-of-view lens and adjustable camera angle provide a broad view of the conference room. The auto-framing and camera presets provide users with a smarter and simpler camera control experience.
4.Manage Your Devices Remotely
Yealink Device Management Platform or cloud service can manage the Yealink ZVC500 & ZVC800 Zoom Rooms Kits, allowing administrators to remotely control devices with ease. The platform supports remote configuration, firmware upgrading, monitoring and diagnosis. Through Windows Update, users can get the latest version of the UVC camera driver and Yealink Plug-in for Zoom Rooms, further enhancing the user's Zoom Rooms experience.

Specification
MCore Package
• 8th-gen Intel® QUAD-CORE i5
• Memory: 8GB (2 x 4GB)
• Storage: 128GB SSD
• 2 x HDMI video output (CEC supported)
• Bluetooth and Wi-Fi
• 4 x USB3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot
• Built-in cable management

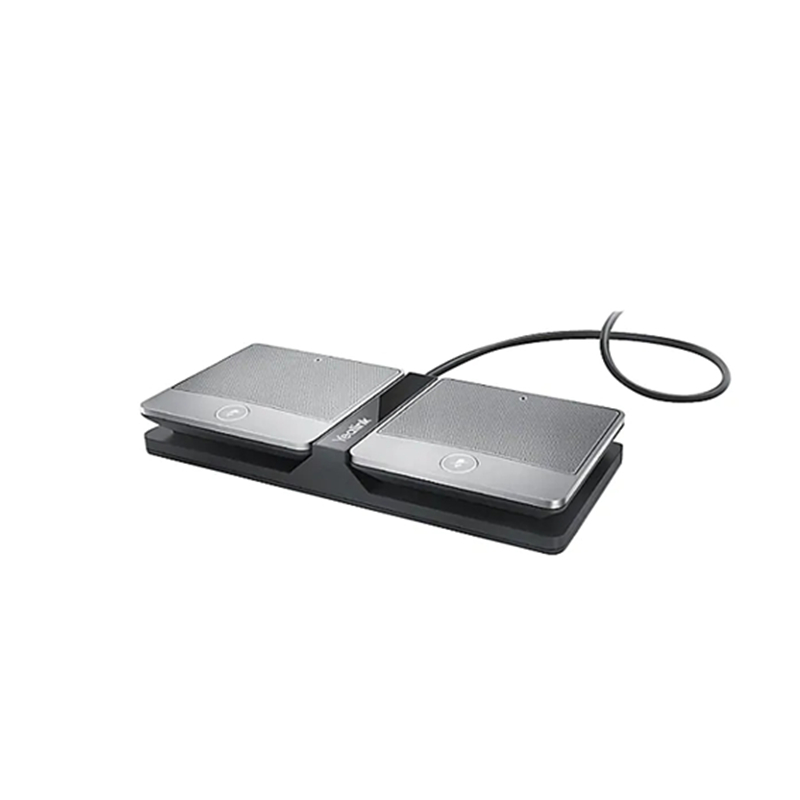

CPW90 Wireless Microphones (optional) • DECT technology, up to 50 meters distance
• 10ft (3-meter) voice pickup range of every microphone unit
• Built-in Li-battery, 11 days standby, 19 hours talking time
• Charging cradle, charging any time
CP960 Conference Phone
• 5" 720x1280 capacitive touch screen
• 1 x RJ45 10/100M Ethernet port
• Power over Ethernet (IEEE 802.3af ), class 4
• 2 x Wired MIC port
• 2 x USB 2.0 port
• 1 x 3.5mm audio-out port
• 1 x USB 2.0 Micro-B device port
• 1 x Security slot
UVC50 USB PTZ Camera
• 1920 x 1080 video resolution
• 60 frame rate
• 5x optical zoom
• Field of view (diagonal): 91°
• Auto-framing
• Camera presets
• Pan range: 60°
• Tilt range: 40°
• 1 x Line-in (3.5mm)
• 1 x Line-out (3.5mm)
• 1 x Yealink Microphone port (RJ-45)
• 1 x USB 2.0 Type-B
• 1 x USB 2.0 Type-A
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot
UVC80 USB PTZ Camera
• 1920 x 1080 video resolution
• 60 frame rate
• 12x optical zoom
• Field of view (diagonal): 78.5°
• Auto-framing
• Camera presets
• Pan angle range: 200°
• Tilt angle range: 60°
• 1 x Line-in (3.5mm)
• 1 x Line-out (3.5mm)
• 1 x Yealink Microphone port (RJ-45)
• 1 x USB 2.0 Type-B
• 1 x USB 2.0 Type-A
• 1 x Security lock slot
• 1 x Reset slot
Package Features
• Operating humidity: 10~95%
• Operating temperature: 0~40°C
• Storage temperature: -30~70°C
• N.W/CTN: 6.9 Kg (ZVC500 Zoom Rooms Kit)
• G.W/CTN: 8.0 Kg (ZVC500 Zoom Rooms Kit)
• N.W/CTN: 7.6 Kg (ZVC800 Zoom Rooms Kit)
• G.W/CTN: 8.7 Kg (ZVC800 Zoom Rooms Kit)

Yealink-ZVC500&ZVC800-Datasheet.pdf

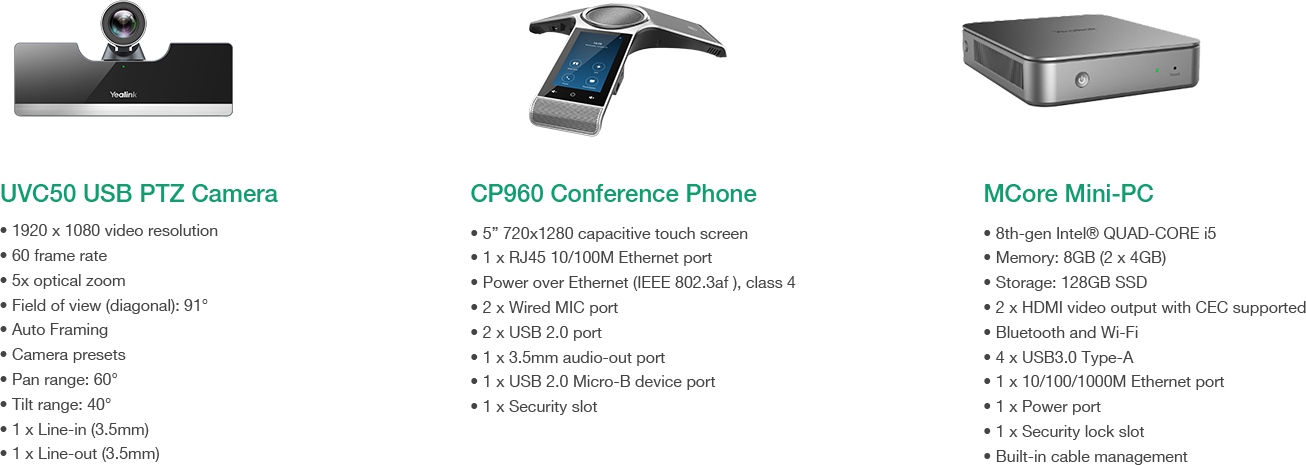

ZVC500 Zoom Rooms Kit Package and Specifications
