R660
Dell
100% Original Brand
1 Year
| Color: | |
|---|---|
| Size: | |
| Quantity: | |

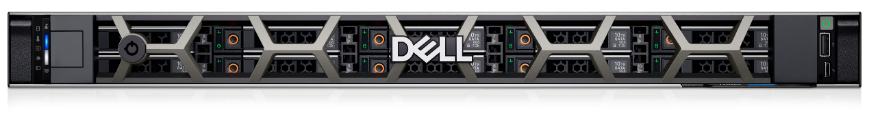

Dell PowerEdge R660 is an evolution of Dell’s previous generation PowerEdge R650. This 1U rackmount server is aimed at everything from general-purpose usage to HCI/HPC. Key features include support for two processors (dual sockets), 32 RDIMMs, and three graphics cards.
The R660’s biggest advancement over the R650 is that it’s based on Intel “Sapphire Rapids” fourth-generation Xeon Scalable processors. These new chips scale to 56 scores, use DDR5 memory and support Gen5 storage.
Storage configurations are also one of this server’s strengths. Conventional storage scales up to ten 2.5-inch SAS/SATA drives, but it can also use Gen5 NVMe SSDs. Additionally, a new backplane option includes support for up to 16x E3.S (7mm) drives. There are also rear-drive options for boot which includes the new NVMe BOSS drive.
The PowerEdge R660 has the following specifications:
| CPU | Sapphire Rapid (Bronze, Silver, Gold5, Gold6, Platinum) with up to 56 cores per processor Support for up to 2x 350W processors Direct Liquid Cooling support |
| Memory | Up to 32 x DDR5 RDIMMs DIMM Speed: Up to 4800 MT/s |
| Storage | Up to 10 x 2.5” SAS/SATA HDD/SSD; or NVMe SSD Up to 16 x E3.S NVMe Gen5 DUAL PERC* Up to 14 x E3.S NVMe Gen5 direct attach* Up to 2 x 2.5” (rear) SAS/SATA HDD/SSD; or NVMe SSD Up to 2 x E3.S(rear) NVMe Gen5* Rear BOSS-N1 (2xM.2 NVMe) for boot Internal: USB Bandwidth: SAS4-24Gb, SAS3-12Gb, SATA-6Gb |
| Storage Controller | HW RAID: PERC 11 & 12 (dual PERC option) HW SAS4/SATA/NVMe RAID (PERC12) SW RAID: Yes |
| Network | Optional 2 x 1GbE LOM and/or 1 x OCP 3.0 |
| PCIe Slots | Up to 3 x PCIe Slots (with up to 2 PCIe Gen5), SNAP I/O option |
| GPU | 3x SW GPUs* |
| Integrated Ports | Front: 1 x USB 2.0, 1 x iDRAC Direct (Micro-AB USB) port, 1 x VGA Rear: 1 x Dedicated iDRAC Ethernet port, 1 x Serial (optional), 1x USB 2.0, 1 x USB 3.0, 1 x VGA (optional for Liquid Cooling configurations) Internal: 1x USB 3.0 (optional) |
| System Management | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless module, OpenManage Enterprise and Plugins (Power Manager, SupportAssist, Update Manager), OpenManage Mobile |
| High Availability | Hot-plug redundant hard drives, PSU. Hot-plug fans. Hot-plug BOSS |
| Power Supplies | AC (Platinum): 800W, 1400W AC (Titanium): 700W, 1100W, 1800W LVDC @-48VDC Input: 1100W |
| Dimensions | H x W x D: 42.8mm x 482mm x 809mm (without bezel) |
| Form Factor | 1U Rack Server |
