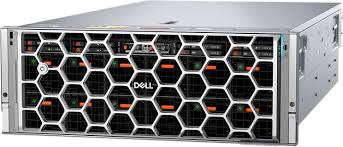

XE7745
Dell
New
1 Year
| Color: | |
|---|---|
| Quantity: | |
Two AMD EPYC 9005 Series processor with up to 192 Zen5 cores per processor
Canonical Ubuntu Server LTS
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMWare ESXi
AMD chipset
8x PCIe Gen 5 x16 DW up to 600W or 16x PCIe Gen 5 x16 SW up to 75W
DIMM Speed
Up to 6000 MT/s
Memory Type
RDIMM
Memory Module Slots
24 DDR5 DIMM slot
Maximum RAM
RDIMM 3.072 TB
Front Bays
Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB
Mid Bay
N/A
Rear Bay
N/A
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs
USB
Internal controllers
NA
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt) (available with future releases)
Secure Boot
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
Secure Erase
System Lockdown (requires iDRAC10 Enterprise or Datacenter) (available with future releases)
TPM 2.0 FIPS, CC-TCG certified
AMD Secure Memory Encryption (SME)
AMD Secure Encrypted Virtualization (SEV)
Embedded / At-the-Server
iDRAC10*
iDRAC Direct
iDRAC RESTful API with Redfish
Tools
Dell Repository Manager
Dell System Update
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
*Expected to be available in the first half of 2025. Planned Offerings are subject to change and may not be released as originally designed.
3200 W Titanium 200—240 VAC or 240 VDC
Fans
Up to four sets of high performance (HPR) platinum grade fans (dual fan module) installed in mid tray
Up to twelve high performance (HPR) platinum grade fans installed on the front of the system
Network Options
OCP NIC card 3.1
Front Ports
1 x USB 2.0 Type A port
1 x USB 2.0 Type A port (iDRAC/BMC Direct)
1 x Mini-DisplayPort (optional)
Rear Ports
1 x Dedicated ethernet port for iDRAC management
1 x VGA
2 x USB 3.1 Type A ports
Internal Ports
1 x USB 3.1 Type A port (optional)
PCIe
Up to 8 x 16 lane PCIe slots (in addition to 16 internal GPU PCIe slots)
Video Card
1 x VGA
Bezel
Optional security bezel
4U rack server
Height
174.3 mm (6.86")
Width
482 mm (18.98")
Depth
899.56 mm (35.42") with bezel
886.73 mm (34.91") without bezel
Weight
68.5 Kg (151.02 pounds)
Generic Tool-less stab-in sliding rail, Support for tool-less installation in 19"" EIA-310-E compliant square hole and unthreaded round hole 4-post racks.
Support for full extension of the system out of the rack to allow serviceability of key internal components.
