FG-3100D
Fortinet
Original New
1 year
| Quantity: | |
|---|---|

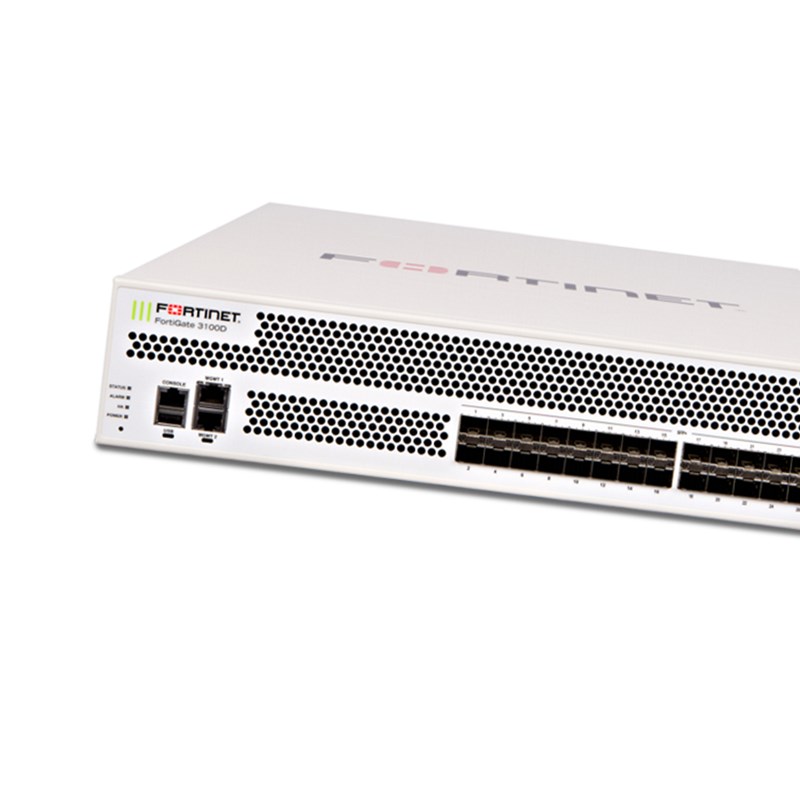

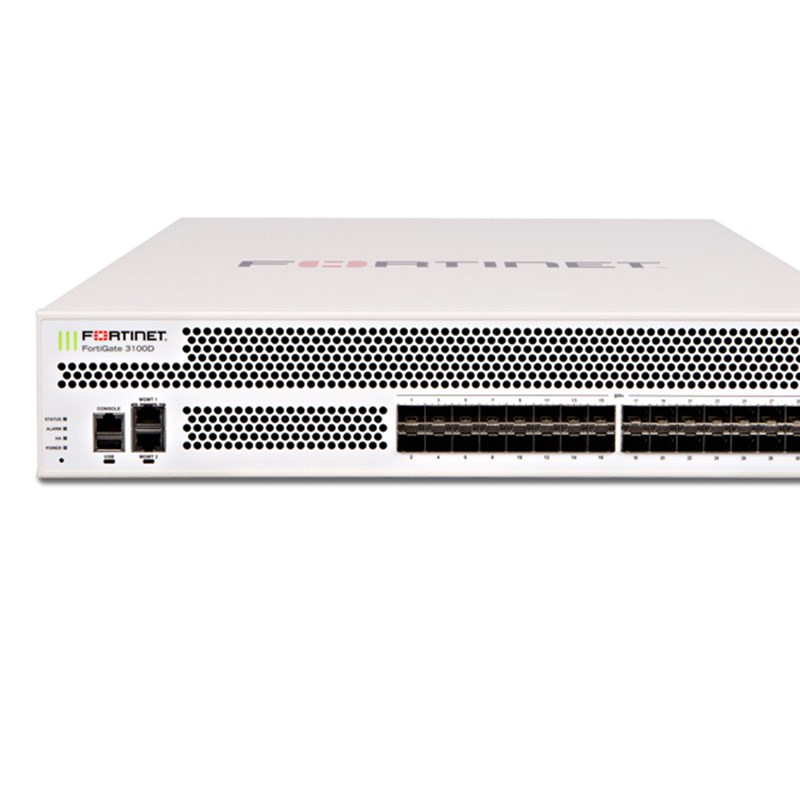

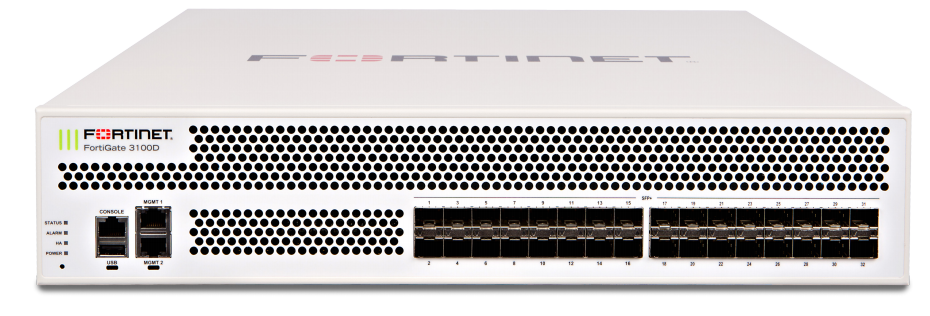

Fortigate 3100D

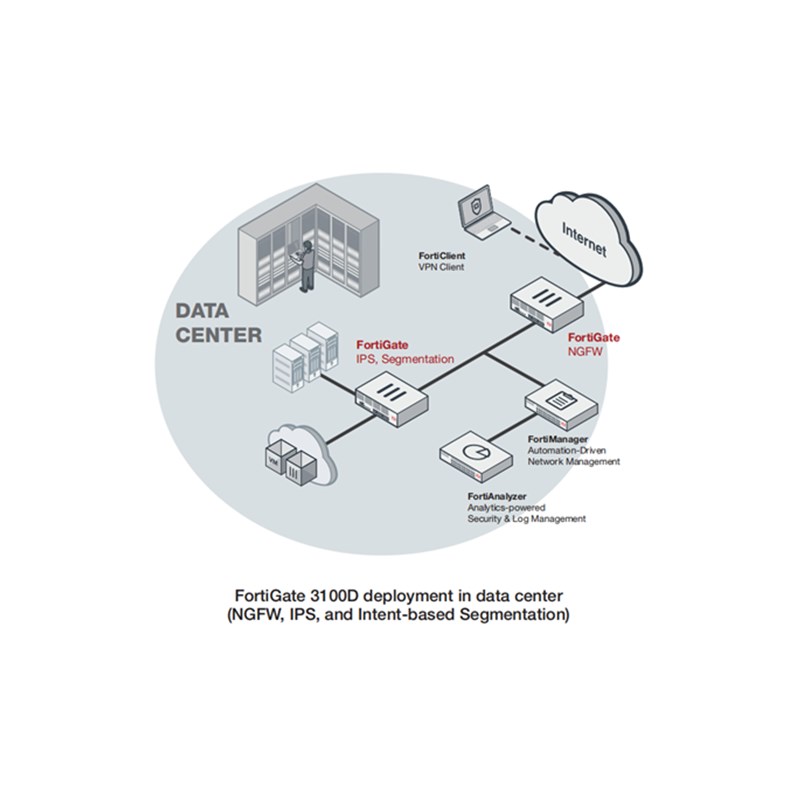

The FortiGate 3100D series delivers high performance next generation firewall (NGFW) capabilities for large enterprises and service providers. With multiple high-speed interfaces, high-port density, and high-throughput, ideal deployments are at the enterprise edge, hybrid data center core, and across internal segments. Leverage industry-leading IPS, SSL inspection, and advanced threat protection to optimize your network's performance. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.
Fortigate 3100D

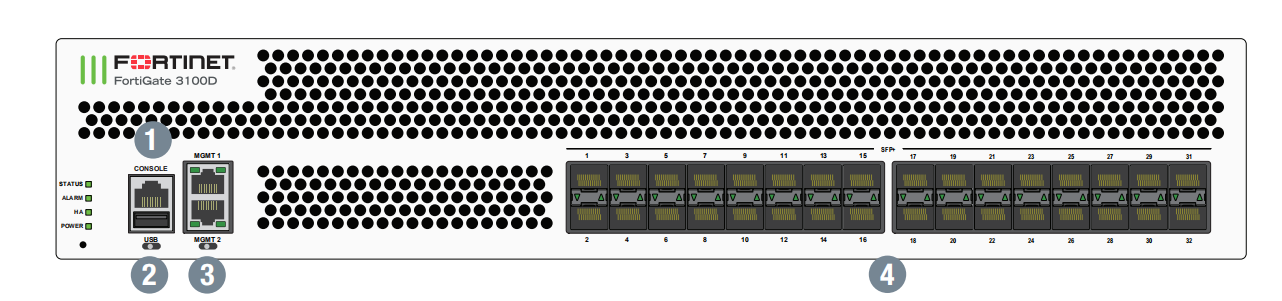

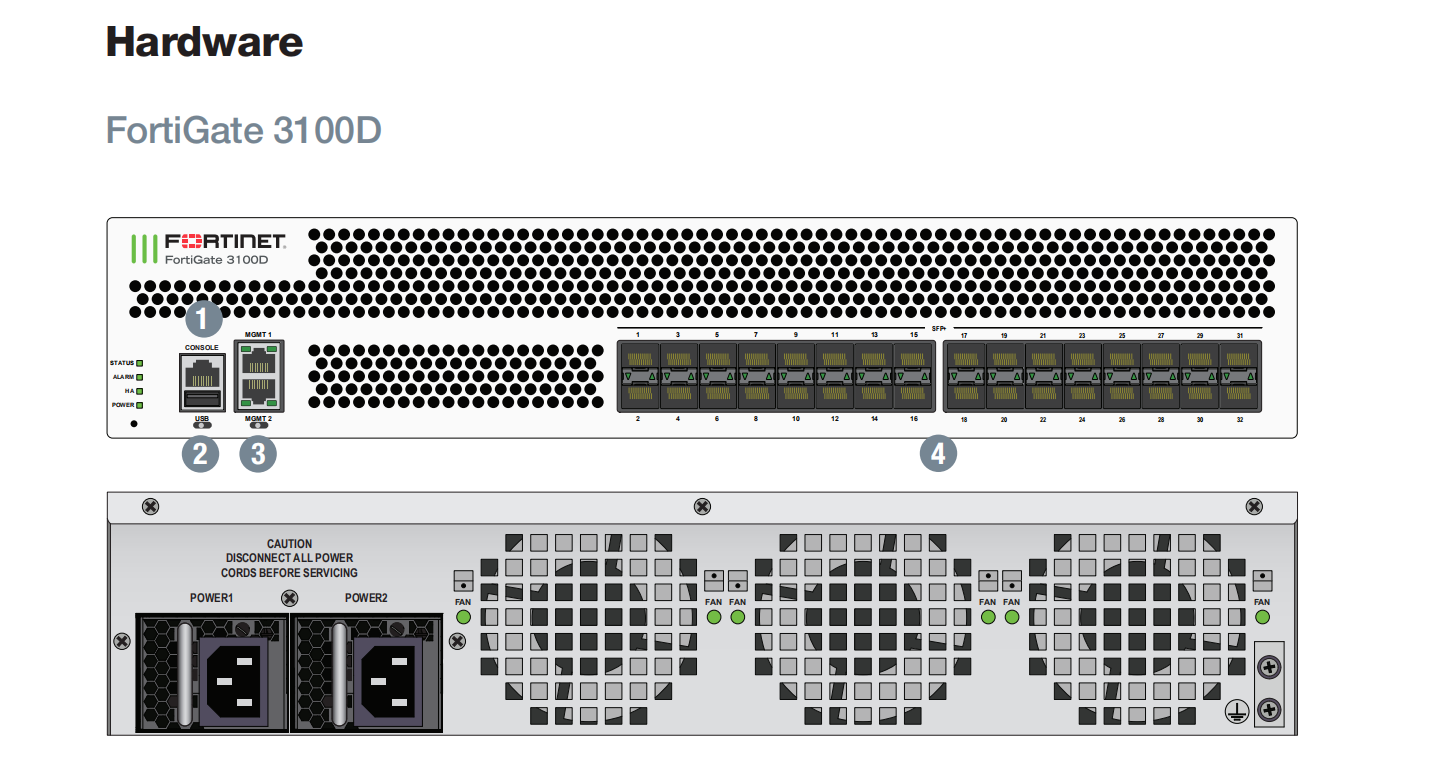

| (1) | Console Port |
| (2) | USB Management Port |
| (3) | 2x GE RJ45 Management Ports |
| (4) | 32x 10G SFP+/GE SFP Slots |
Product Specifications
| FortiGate 3100D | |
| Interfaces and Modules | |
| 10 GE SFP+ / GE SFP Slots | 32 |
| GE RJ45 Management Ports | 2 |
| USB Ports (Client / Server) | 1 / 1 |
| Console Port | 1 |
| Internal Storage | 1x 480 GB SSD |
| Included Transceivers | 2x SFP+ (SR 10 GE) |
| System Performance - Enterprise Traffic Mix | |
| IPS Throughput | 22 Gbps |
| NGFW Throughput | 18 Gbps |
| Threat Protection Throughput | 13 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 80 / 80 / 50 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 80 / 80 / 50 Gbps |
| Firewall Latency (64 byte, UDP) | 3 µs |
| Firewall Throughput (Packet per Second) | 75 Mpps |
| Concurrent Sessions (TCP) | 50 Million |
| New Sessions/Second (TCP) | 400,000 |
| Firewall Policies | 200,000 |
| IPsec VPN Throughput (512 byte) | 50 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 |
| Client-to-Gateway IPsec VPN Tunnels | 200,000 |
| SSL-VPN Throughput | 8 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 16 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 10,000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 3.5 Million |
| Application Control Throughput (HTTP 64K) | 40 Gbps |
| CAPWAP Throughput (HTTP 64K) | 22 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiSwitches Supported | 300 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 4,096 / 2,048 |
| Maximum Number of FortiTokens | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions and Power | |
| Height x Width x Length (inches) | 3.5 x 17.4 x 21.9 |
| Height x Width x Length (mm) | 88 x 442 x 555 |
| Weight | 37.69 lbs (17.1 kg) |
| Form Factor (supports EIA / non-EIA standards) | Rack Mount, 2 RU |
| Power Input | 100-240V AC, 50-60 Hz |
| Power Consumption (Average / Maximum) | 10A@100VAC, 5A@240VAC |
| Current (Maximum) | 337 W / 520 W |
| Heat Dissipation | 1775 BTU/h |

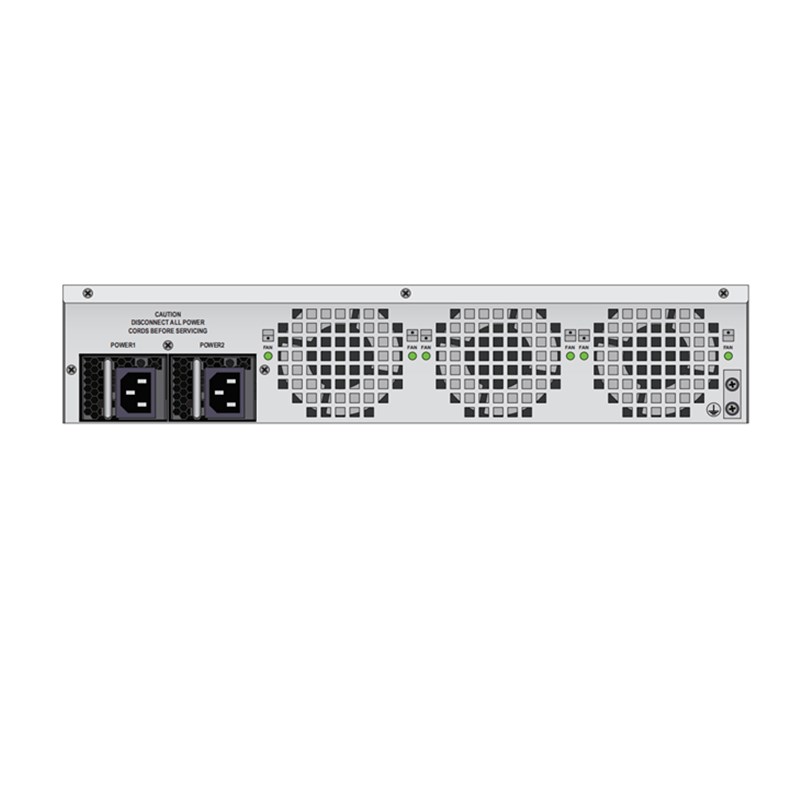

| Redundant Power Supplies | Yes (Hot Swappable) |
| Operating Environment and Certifications | |
| Operating Temperature | 32-104°F (0-40°C) |
| Storage Temperature | -31-158°F (-35-70°C) |
| Humidity | 10-90% non-condensing |
| Noise Level | 50 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
