FG-400F
Fortinet
100% Original Brand
1 Year
| Color: | |
|---|---|
| Size: | |
| Quantity: | |

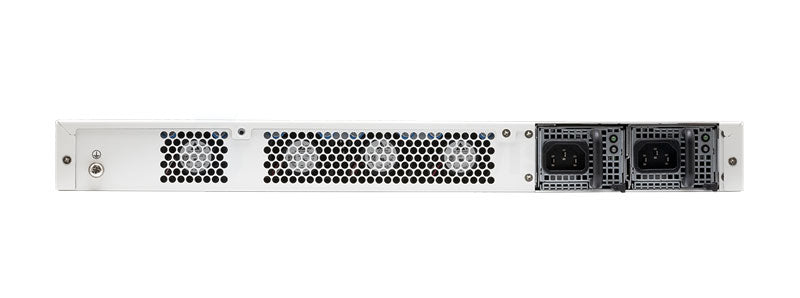

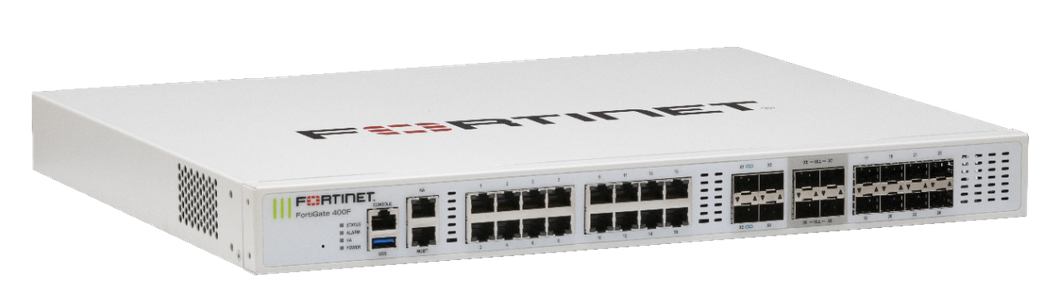

The FG-400F is a high-performance firewall designed to provide robust network security and advanced threat protection. With 18 GE RJ45 ports, 8 GE SFP slots, and 8 10GE SFP+ slots, it offers flexible connectivity options for various network environments. The appliance is equipped with SPU NP7 and CP9 hardware acceleration, ensuring efficient processing of network traffic and delivering high throughput.
Table 1 shows the quick spec of the FG-400F.
| Parameter | Description |
|---|---|
| Hardware Accelerated GE RJ45 Interfaces | 16 |
| USB Ports | 1 |
| Number of 10GE SFP+ Slots | 8 |
| Power Supplies | Dual AC |
Robust network security
Advanced threat protection
Flexible connectivity options
High-performance hardware acceleration
Dual AC power supplies for redundancy
Enterprise networks
Data centers
Service providers
Table 2 shows the comparison to similar items of the FG-400F.
| Model | Differences |
|---|---|
| FG-200F | Lower number of ports |
| FG-600F | Higher throughput capacity |
| FG-1000F | Additional hardware acceleration features |
FG-400F Specifications | |
| Specification | Description |
|---|---|
| Model | FG-400F |
| Number of GE RJ45 Ports | 16 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated 10GE SFP+ Slots | 4 |
| USB Ports | 1 |
| RJ45 Console Port | 1 |
| IPS Throughput | 12 Gbps |
| NGFW Throughput | 10 Gbps |
| Threat Protection Throughput | 9 Gbps |
| IPv4 Firewall Throughput | 79.5 / 78.5 / 70 Gbps |
| Firewall Policies | 10,000 |
| SSL-VPN Throughput | 3.6 Gbps |
| Height x Width x Length (inches) | 1.75 x 17.0 x 15.0 |
| Power Source | 100–240V AC, 50/60Hz |
| Humidity | 5–90% non-condensing |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6 |
| Dimensions (H x W x D) | 1.73 x 17.2 x 16.7 inches |
| Weight | 16.75 lbs (7.6 kg) |
