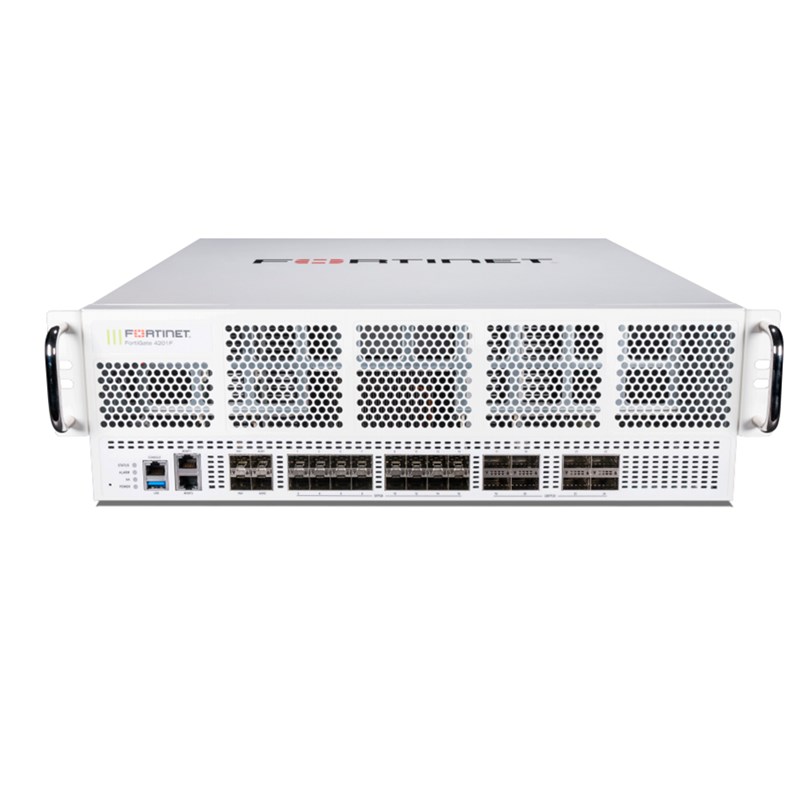

FG-4200F New Original Fortinet Fortigate 4200F series Network Security Firewall

The FortiGate 4200F series delivers high performance next generation firewall (NGFW) capabilities for large enterprises and service providers.
  • FG-4200F

  • Fortinet

  • Original New

  • 1 year

Availability:
Quantity:
Product Description

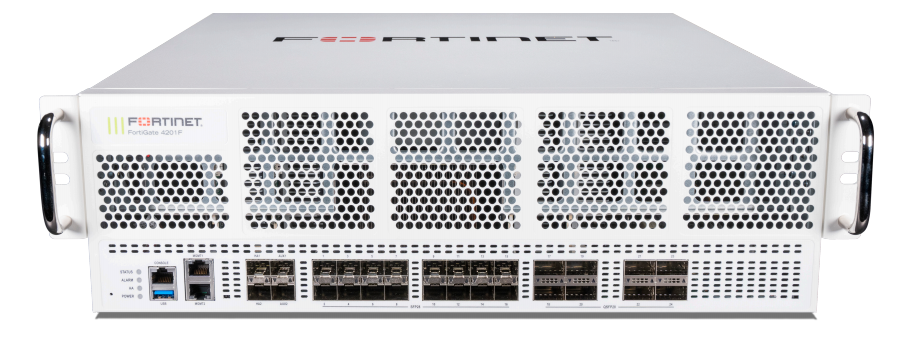

FortiGate 4200F

The FortiGate 4200F series delivers high performance next generation firewall (NGFW) capabilities for large enterprises and service providers. With multiple high-speed interfaces, high-port density, and high throughput, ideal deployments are at the enterprise edge, hybrid data center core, and across internal segments. Leverage industry-leading IPS, SSL inspection, and advanced threat protection to optimize your network performance. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.



1609317344

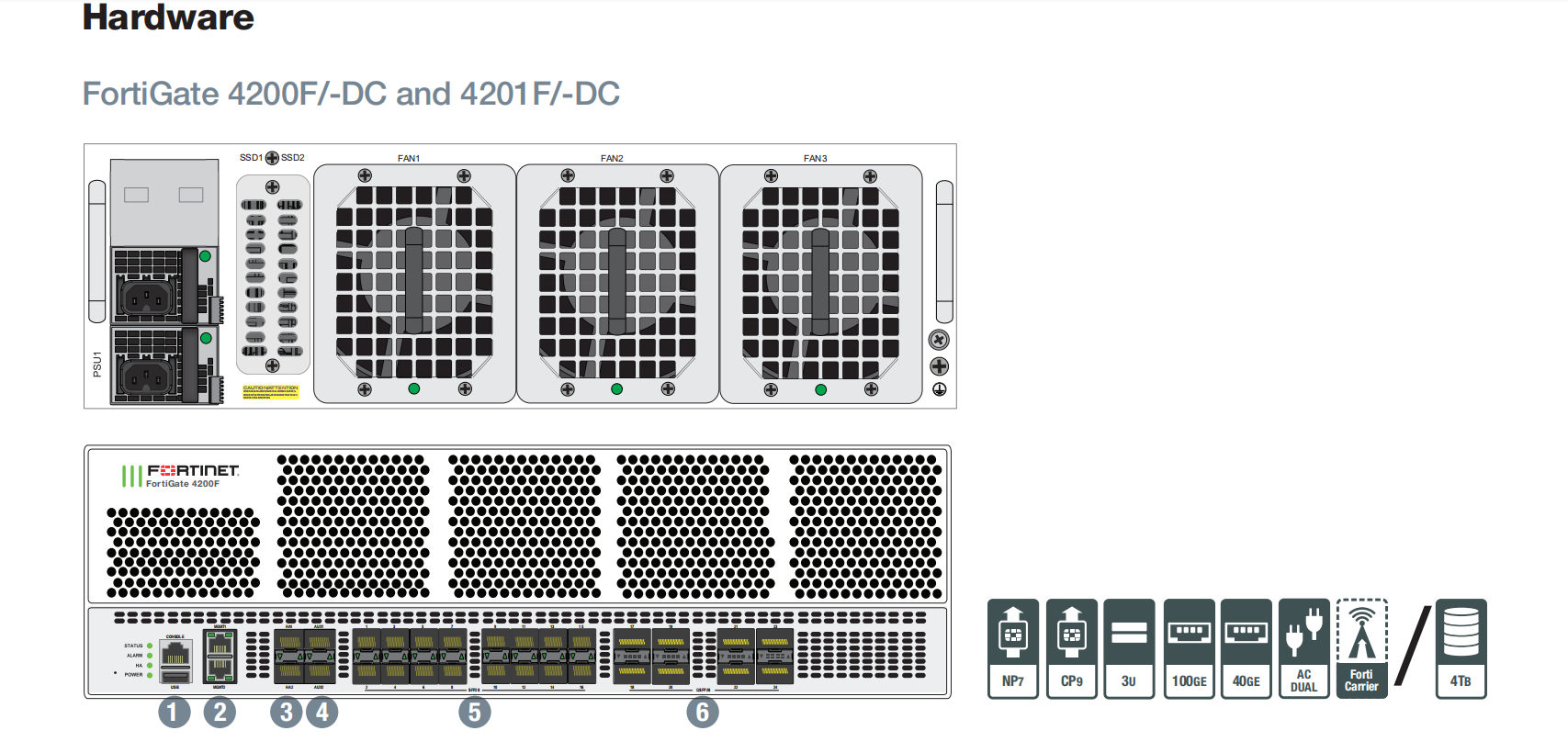

FortiGate 4200F

(1) 1x USB Management and Console Port
(2) 2x GE RJ45 Management Ports
(3) 2x 25 GE SFP28 / 10 GE SFP+ / GE SFP High Availability Slots
(4) 2x 25 GE SFP28 / 10 GE SFP+ / GE SFP AUX Slots
(5) 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots
(6) 8x 100 GE QSFP28 / 40 GE QSFP+ Slots



Product Specifications


1609317384(1)


FortiGate 4200F
Interfaces and Modules
100 GE QSFP28 / 40 GE QSFP+ Slots 8
25 GE SFP28 / 10 GE SFP+ / GE SFP Slots 16
25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots 2
25 GE SFP28 / 10 GE SFP+ / GE SFP AUX Slots 2
GE RJ45 Management Ports 2
USB Ports 1
Console Port 1
Included Transceivers 2x SFP+ (SR 10GE)
System Performance - Enterprise Traffic Mix
IPS Throughput 52 Gbps
NGFW Throughput 47 Gbps
Threat Protection Throughput 45 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 800 / 788 / 400 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) 800 / 788 / 400 Gbps
Firewall Latency (64 byte, UDP) 3.02 µs
Firewall Throughput (Packet per Second) 600 Mpps
Concurrent Sessions (TCP) 210 Million / 450 Million
New Sessions/Second (TCP) 1 Million / 7 Million
Firewall Policies 200,000
IPsec VPN Throughput (512 byte) 210 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 40,000
Client-to-Gateway IPsec VPN Tunnels 200,000
SSL-VPN Throughput 16 Gbps
Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode)
30,000
SSL Inspection Throughput (IPS, avg. HTTPS) 50 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 34,000
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 9 Million
Application Control Throughput (HTTP 64K) 135 Gbps
CAPWAP Throughput (HTTP 64K) 47 Gbps
Virtual Domains (Default / Maximum) 10 / 500
Maximum Number of FortiSwitches Supported 300
Maximum Number of FortiAPs (Total / Tunnel Mode) 8,192 / 4,096
Maximum Number of FortiTokens 20,000
Maximum Number of Registered FortiClients 50,000
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions and Power
Height x Width x Length (inches) 5.22 x 17.20 x 26.17
Height x Width x Length (mm) 132.5 x 437 x 664.8
Weight 59.75 lbs (27.10 kg)
Form Factor (supports EIA / non-EIA standards) Rack Mount, 3 RU
AC Power Input 100-240V AC, 50/60 Hz
AC Current (Maximum) 13.5A@120V, 5.5A@240V
Power Consumption (Average/ Maximum) 931 W / 1291 W
Heat Dissipation 4405 BTU/h
DC Power Supply -48V to -60V DC
DC Current (Maximum Rated) 25A to 32A per PSU
Redundant Power Supplies Default 1+1 Redundant, Hot Swappable
Operating Environment and Certifications
Operating Temperature 32-104°F (0-40°C)
Storage Temperature -31-158°F (-35-70°C)
Humidity 10-90% non-condensing
Noise Level 57 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
