FG-800D
Fortinet
Original New
1 year
| Quantity: | |
|---|---|

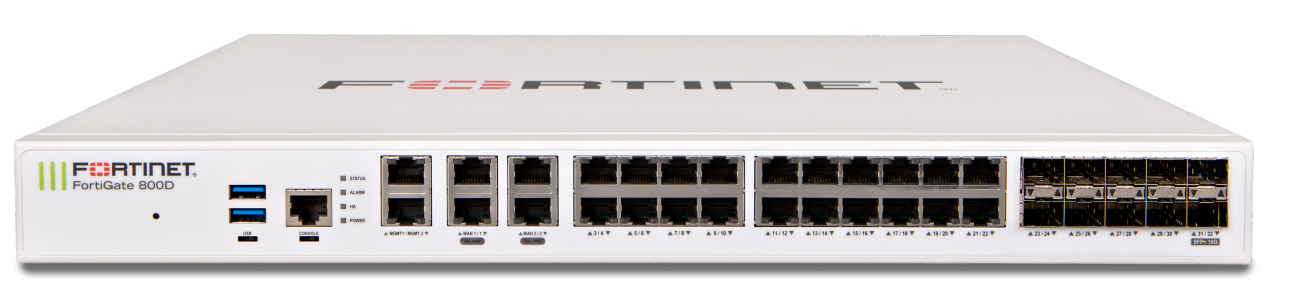

Fortigate 800D

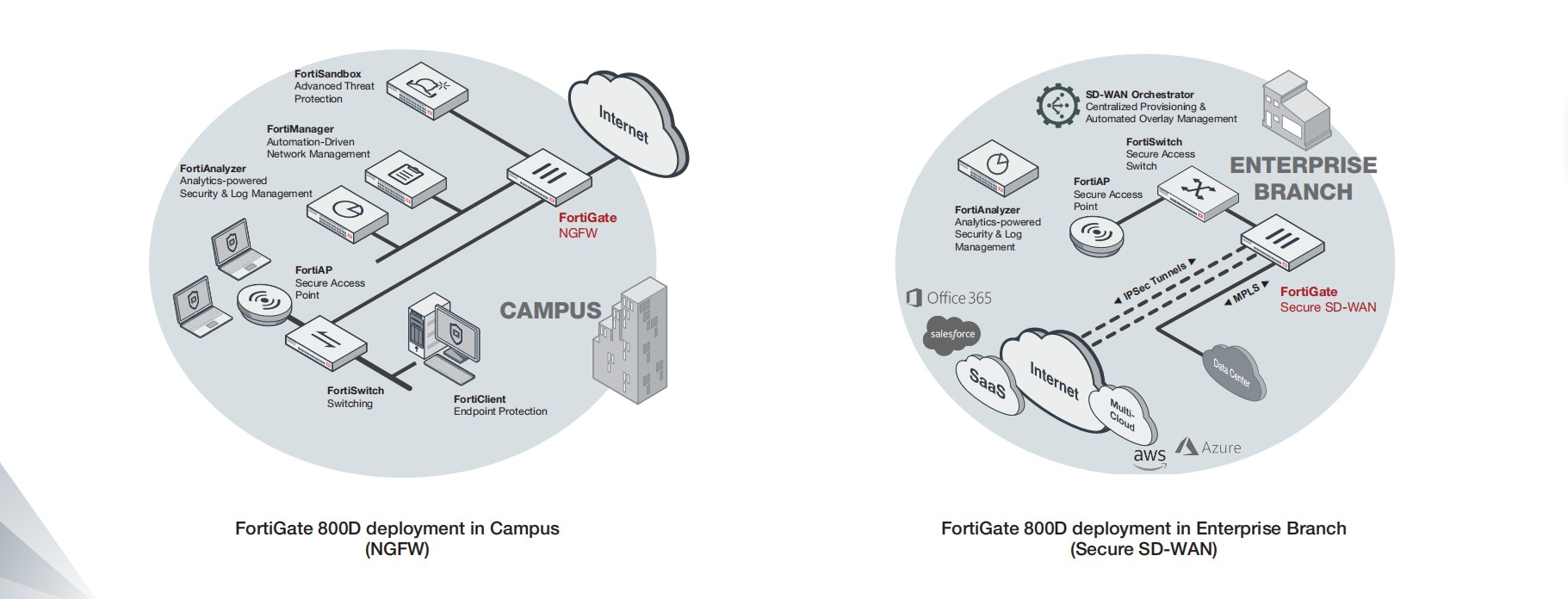

The FortiGate 800D series provides an application-centric, scalable and secure SD-WAN solution with next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with system-on-a-chip acceleration and industry leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.

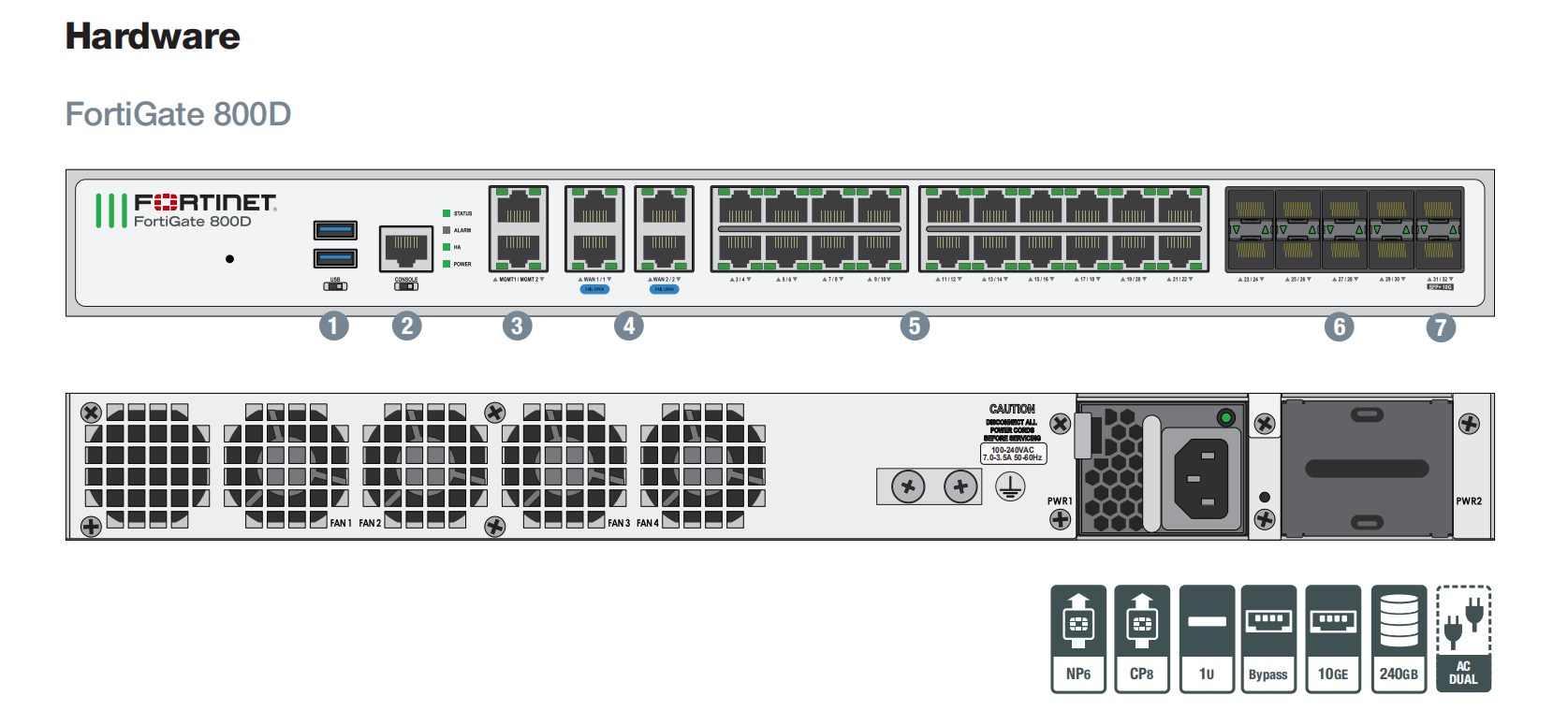

Fortigate 800D
| (1) | USB Ports |
| (2) | Console Port |
| (3) | 2x GE RJ45 Management Ports |
| (4) | 2x Bypass GE RJ45 Pairs |
| (5) | 20x GE RJ45 Ports |
| (6) | 8x GE SFP Slots |
| (7) | 2x 10 GE SFP+ Slots |
Product Specifications
| FortiGate 800D | |
| Interfaces and Modules | |
| Hardware Accelerated 10 GE SFP+ Slots | 2 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated GE RJ45 Ports | 20 |
| Accelerated GE RJ45 Bypass Interfaces | 4 |
| GE RJ45 Management / HA Ports | 2 |
| USB Ports (Client / Server) | 1 / 2 |
| Console Port | 1 |
| Onboard Storage | 1x 240 GB SSD |
| Included Transceivers | 2x SFP (SX 1 GE) |
| System Performance - Enterprise Traffic Mix | |
| IPS Throughput | 4.2 Gbps |
| NGFW Throughput | 4 Gbps |
| Threat Protection Throughput | 3 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 36 / 36 / 22 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 36 / 36 / 22 Gbps |
| Firewall Latency (64 byte, UDP) | 3 μs |
| Firewall Throughput (Packet per Second) | 33 Mpps |
| Concurrent Sessions (TCP) | 5 Million |
| New Sessions/Second (TCP) | 280,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) | 20 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 2.2 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 5,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 3.9 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 2,400 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 380,000 |
| Application Control Throughput (HTTP 64K) | 9 Gbps |
| CAPWAP Throughput (HTTP 64K) | 5.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 64 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 1024 / 512 |
| Maximum Number of FortiTokens | 5,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions and Power | |
| Height x Width x Length (inches) | 1.75 x 17.0 x 16.4 |
| Height x Width x Length (mm) | 44.45 x 432 x 416 |
| Weight | 19.0 lbs (8.6 kg) |
| Form Factor (supports EIA / non-EIA standards) | Rack Mount, 1 RU |
| Wall Mountable | No |
| Power Input | 100-240V AC, 50-60 Hz |
| Power Consumption (Average / Maximum) | 128 W / 187 W |
| Current (Maximum) | 110V/7A, 220V/3.5A |
| Heat Dissipation | 636 BTU/h |
| Redundant Power Supplies | (Hot Swappable) optional |
| Operating Environment and Certifications | |
| Operating Temperature | 32-104°F (0-40°C) |
| Storage Temperature | -31-158°F (-35-70°C) |
| Humidity | 10-90% non-condensing |
| Noise Level | 55 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
Fortigate 800D
The FortiGate 800D series provides an application-centric, scalable and secure SD-WAN solution with next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with system-on-a-chip acceleration and industry leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.
Fortigate 800D
| (1) | USB Ports |
| (2) | Console Port |
| (3) | 2x GE RJ45 Management Ports |
| (4) | 2x Bypass GE RJ45 Pairs |
| (5) | 20x GE RJ45 Ports |
| (6) | 8x GE SFP Slots |
| (7) | 2x 10 GE SFP+ Slots |
Product Specifications
| FortiGate 800D | |
| Interfaces and Modules | |
| Hardware Accelerated 10 GE SFP+ Slots | 2 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated GE RJ45 Ports | 20 |
| Accelerated GE RJ45 Bypass Interfaces | 4 |
| GE RJ45 Management / HA Ports | 2 |
| USB Ports (Client / Server) | 1 / 2 |
| Console Port | 1 |
| Onboard Storage | 1x 240 GB SSD |
| Included Transceivers | 2x SFP (SX 1 GE) |
| System Performance - Enterprise Traffic Mix | |
| IPS Throughput | 4.2 Gbps |
| NGFW Throughput | 4 Gbps |
| Threat Protection Throughput | 3 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 36 / 36 / 22 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 36 / 36 / 22 Gbps |
| Firewall Latency (64 byte, UDP) | 3 μs |
| Firewall Throughput (Packet per Second) | 33 Mpps |
| Concurrent Sessions (TCP) | 5 Million |
| New Sessions/Second (TCP) | 280,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) | 20 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 2.2 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 5,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 3.9 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 2,400 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 380,000 |
| Application Control Throughput (HTTP 64K) | 9 Gbps |
| CAPWAP Throughput (HTTP 64K) | 5.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 64 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 1024 / 512 |
| Maximum Number of FortiTokens | 5,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions and Power | |
| Height x Width x Length (inches) | 1.75 x 17.0 x 16.4 |
| Height x Width x Length (mm) | 44.45 x 432 x 416 |
| Weight | 19.0 lbs (8.6 kg) |
| Form Factor (supports EIA / non-EIA standards) | Rack Mount, 1 RU |
| Wall Mountable | No |
| Power Input | 100-240V AC, 50-60 Hz |
| Power Consumption (Average / Maximum) | 128 W / 187 W |
| Current (Maximum) | 110V/7A, 220V/3.5A |
| Heat Dissipation | 636 BTU/h |
| Redundant Power Supplies | (Hot Swappable) optional |
| Operating Environment and Certifications | |
| Operating Temperature | 32-104°F (0-40°C) |
| Storage Temperature | -31-158°F (-35-70°C) |
| Humidity | 10-90% non-condensing |
| Noise Level | 55 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
