FG-100E Overview

FG-100E is the Fortinet NGFW Middle-range Series FortiGate 100E firewall. The FortiGate 100E series delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch.

Quick Spec

Table 1 shows the quick spec.

Sku	FG-100E
Firewall	7.4 Gbps
IPS	500 Mbps
NGFW	360 Mbps
Threat Protection	250 Mbps
Interfaces	2x GE RJ45 MGMT/DMZ Ports 2x GE RJ45 WAN Ports 2x GE RJ45 HA Ports 14x GE RJ45 Ports 2x GE RJ45/SFP Shared Media Pairs

Product Details

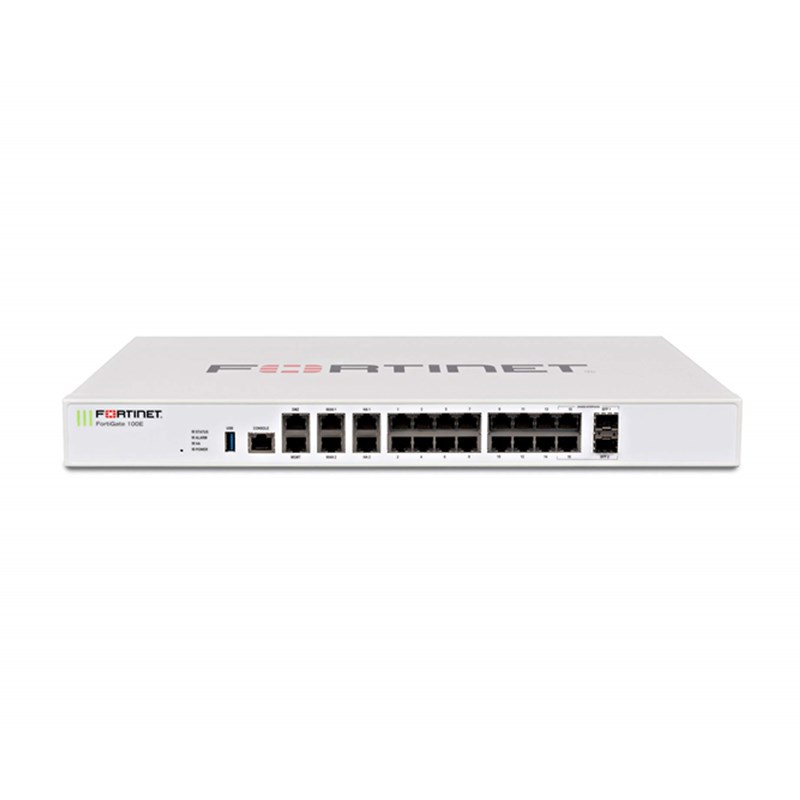

Figure 1 shows the front view of FG-100E.

Fortinet FG-100E Front View

Note:

①	USB Port
②	Console Port
③	2x GE RJ45 MGMT/DMZ Ports
④	2x GE RJ45 WAN Ports
⑤	2x GE RJ45 HA Ports
⑥	14x GE RJ45 Ports
⑦	2x GE RJ45/SFP Shared Media Pairs

The Optional Accessories & Spares

Table 2 shows the optional accessories or spares of FG-100E.

Optional Accessories & Spares	SKU	Description
1 GE SFP LX Transceiver Module	FG-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots
1 GE SFP RJ45 Transceiver Module	FG-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots
1 GE SFP SX Transceiver Module	FG-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
External redundant AC power supply	FRPS-100	External redundant AC power supply for up to 4 units: FG-100/101E, FG-300C, FG-310B, FS-348B and FS-448B. Up to 2 units: FG-200B, FG-200D, FG-200/201E, FG-240D and FG-300D, FG-400D, FG-500D, FG-600D, FHV-500D, FDD-200B, FDD-400B, FDD-600B and FDD-800B.

Related Products

Table 3 shows the bundle models and licenses of FG-100E.

Types	Model	Description
Basic Firewall	FG-100E	20 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 14 x switch ports), 2 x Shared Media pairs (Including 2 x GE RJ45 ports, 2 x SFP slots). Max managed FortiAPs (Total / Tunnel) 64 / 32
1 year bundle	FG-100E-BDL-950-12	FG-100E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-100E & FC-10-FG1HE-950-02-12)
1 year License	FC-10-FG1HE-950-02-12	1 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-100E
3 year bundle	FG-100E-BDL-950-36	FG-100E Hardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-100E & FC-10-FG1HE-950-02-36)
3 year License	FC-10-FG1HE-950-02-36	3 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-100E
5 year bundle	FG-100E-BDL-950-60	FG-100E Hardware plus 5 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-100E & FC-10-FG1HE-950-02-60)
5 year License	FC-10-FG1HE-950-02-60	5 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-100E

Compare to Similar Item

Table 4 shows the comparison of FG-100E and FG-101E.

Sku	FG-100E	FG-101E
Firewall	7.4 Gbps	7.4 Gbps
IPS	500 Mbps	500 Mbps
NGFW	360 Mbps	360 Mbps
Threat Protection	250 Mbps	250 Mbps
Interfaces	20 x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 14x switch ports), 2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots) 480 GB onboard storage. Maximum managed FortiAPs (Total / Tunnel) 64 / 32	20 x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 14x switch ports), 2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots) 480 GB onboard storage. Maximum managed FortiAPs (Total / Tunnel) 64 / 32
Internal Storage	N/A	1x 480 GB SSD
