FORTINET FortiGate-601E Network Security Appliance (FG-601E)

FG-601E Overview

FG-601E is the Fortinet NGFW Middle-range Series FortiGate 601E firewall. The FortiGate 600E /601E series delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch.

Quick Spec

Table 1 shows the quick spec.

Sku	FG-601E
Firewall	36 Gbps
IPS	10 Gbps
NGFW	9.5 Gbps
Threat Protection	7 Gbps
Interfaces	2 x 10GE SFP+ slots 8 x GE SFP slots 8 x GE RJ45 ports 2 x GE RJ45 management ports

Product Details

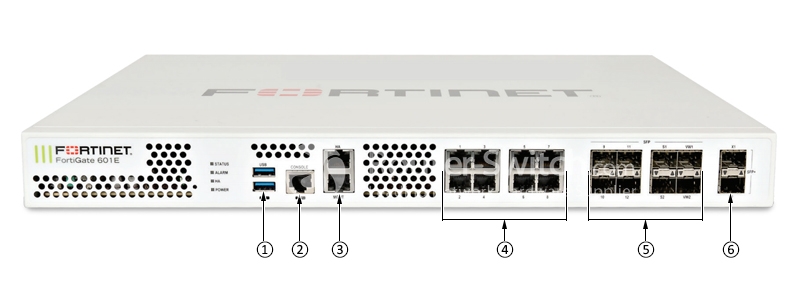

Figure 1 shows the front view of FG-601E.

Fortinet_FG-601E_Front_View

Note:

①	2 USB Ports
②	1 Console Port
③	2x GE RJ45 MGMT/HA Ports
④	8x GE SFP Slots
⑤	8x GE RJ45 Ports
⑥	2x 10 GE SFP+ Slots

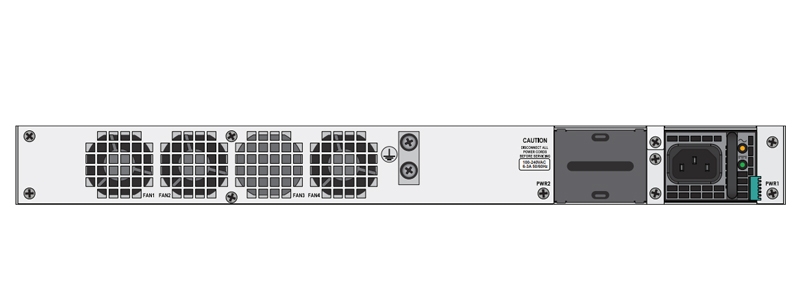

Figure 2 shows the rear view of FG-601E.

Fortinet_FG-601E_Rear_View

The Optional Accessories & Spares

Table 2 shows the optional accessories or spares of FG-601E.

Optional Accessories & Spares	SKU	Description
1 GE SFP LX Transceiver Module	FG-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots
1 GE SFP RJ45 Transceiver Module	FG-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots
1 GE SFP SX Transceiver Module	FG-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
10 GE SFP+ Transceiver Module, Short Range	FG-TRAN-SFP+SR	10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
10 GE SFP+ Transceiver Module, Long Range	FG-TRAN-SFP+LR	10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots
10 GE SFP+ Active Direct Attach Cable, 10m / 32.8 ft	SP-CABLE-ADASFP+	10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots
Optional Power Supply	SP-FG300E-PS	AC power supply for FG-300/301E, FG-400/401E, FG-500/501E, FG-600/601E, FAZ-200F/300F/800F and FMG-200F/300F

Related Products

Table 3 shows the bundle models and licenses of FG-601E.

Types	Model	Description
Basic Firewall	FG-601E	2x 10 GE SFP+ slots, 10x GE RJ45 ports (including 1x MGMT port, 1x HA port, 8x switch ports), 8x GE SFP slots, SPU NP6 and CP9 hardware accelerated, 2x 240 GB onboard SSD storage
1 year bundle	FG-601E-BDL-950-12	FG-601E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-601E & FC-10-F6H1E-950-02-12)
1 year License	FC-10-F6H1E-950-02-12	1 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-601E
3 year bundle	FG-601E-BDL-950-36	FG-601E Hardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-601E & FC-10-F6H1E-950-02-36)
3 year License	FC-10-F6H1E-950-02-36	3 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-601E
5 year bundle	FG-601E-BDL-950-60	FG-601E Hardware plus 5 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-601E & FC-10-F6H1E-950-02-60)
5 year License	FC-10-F6H1E-950-02-60	5 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-601E

Compare to Similar Item

Table 4 shows the comparison of FG-601E and FG-600E.

Sku	FG-601E	FG-600E
Firewall	36 Gbps	36 Gbps
IPS	10 Gbps	10 Gbps
NGFW	9.5 Gbps	9.5 Gbps
Threat Protection	7 Gbps	7 Gbps
Interfaces	2 x 10GE SFP+ slots 8 x GE SFP slots 8 x GE RJ45 ports 2 x GE RJ45 management ports	2 x 10GE SFP+ slots 8 x GE SFP slots 8 x GE RJ45 ports 2 x GE RJ45 management ports
Local Storage	2x 240 GB SSD	NIL
