erEdge T4eatures
Technical Specification
Processor
Up to one Intel® Xeon® E-2224G with up to 4 cores per processor
Memory
4x DDR4 DIMM slots, UDIMM, up to 2666MT/s, 64GB max
Supports ECC DDR4 DIMMs
Controllers
Software RAID: Intel® RSTe 4.7
Drive Bays
Up to 3 x 3.5" SATA (HDD), max 12TB*
Power Supplies
300W Bronze
Dimensions
Height: 335.0mm (13.2")
Width: 176.53mm (7.0")
Depth: 359.50mm (14.2")
Weight: 8.0Kg (17.6lbs)
Form Factor
Mini tower
Embedded Management
Intel Active Management Technology 12.0
Security
Cryptographically signed firmware
Intel® SGX (Software Guard Extensions)
Secure Boot
TPM 2.0

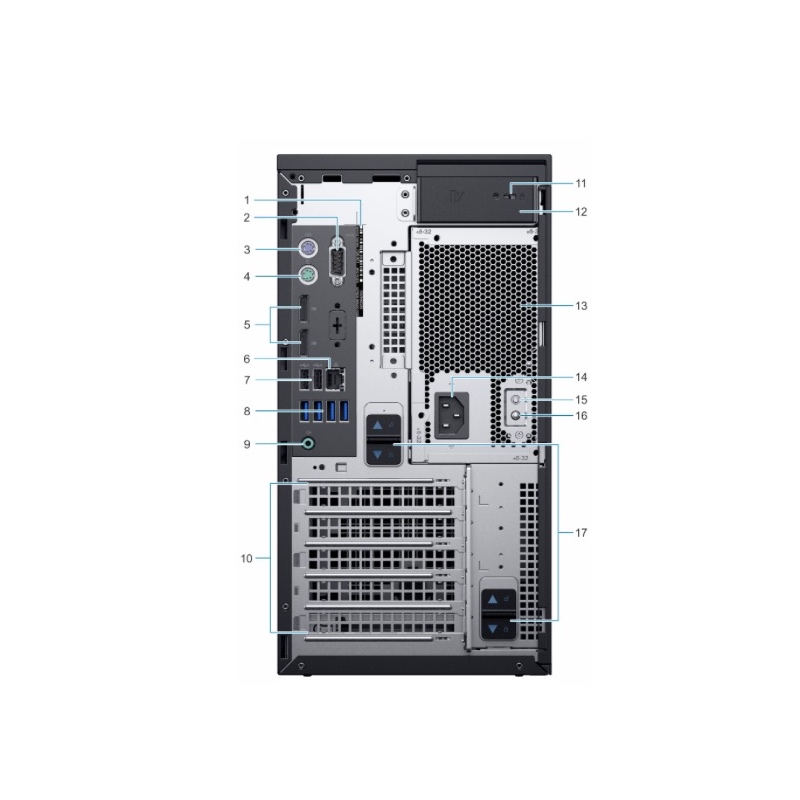

I/O & Ports
Network options: 1 x 1GbE
Front ports: 2 x USB 2.0, 2 x USB 3.1
Rear ports: 2 x PS2, 2 x DisplayPorts, 1 x Serial, 1 x Audio, 2 x USB 2.0,
4 x USB 3.1
PCIe:
1 x Gen3 slot (x16)
2X Gen3 slot (x4)
1 X PCI
Supported operating
systems
Canonical® Ubuntu® Server LTS
Microsoft® Windows Server® LTSC with Hyper-V
OEM-ready version
available
From bezel to BIOS to packaging, your servers can look and feel as if they were designed
Recommended services
ProSupport Plus for critical systems or ProSupport for comprehensive hardware and software support
End-to-end technology solutions
Reduce IT complexity, lower costs and eliminate inefficiencies by making IT and business solutions work harder for you.
*Additional hard drives combined with related carrier and cable are available. Please check with your sales representative for additional requests.
