A320i
Fanvil
New
1 Year
| Quantity: | |
|---|---|

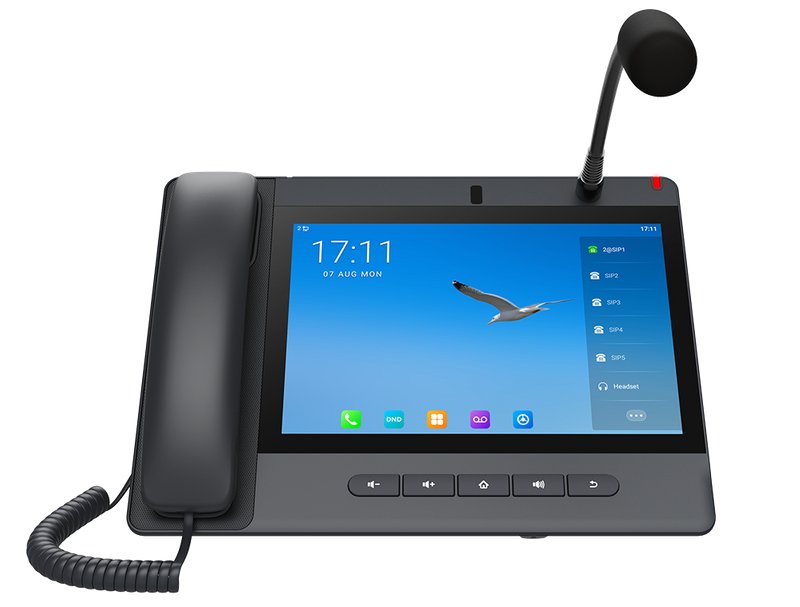

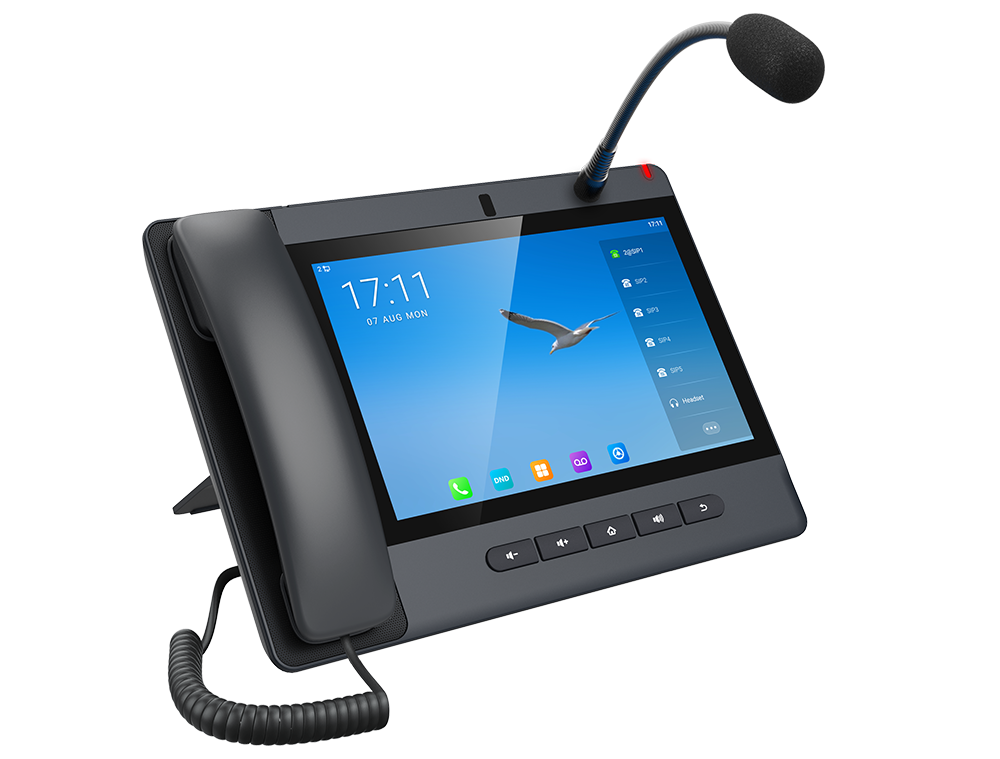

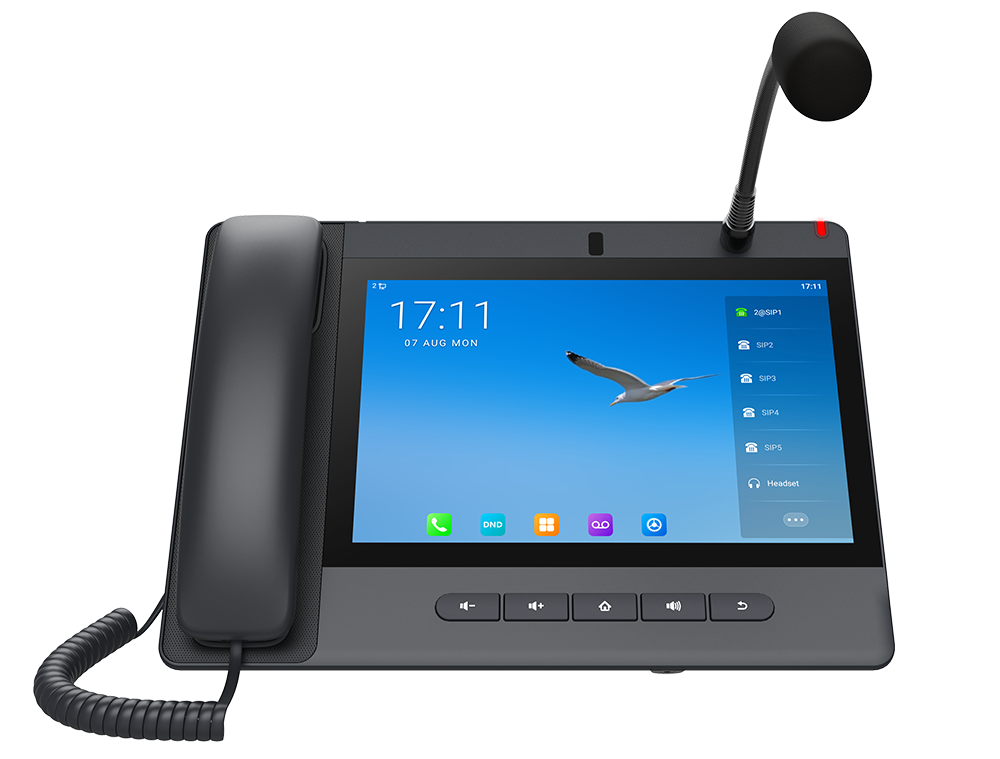

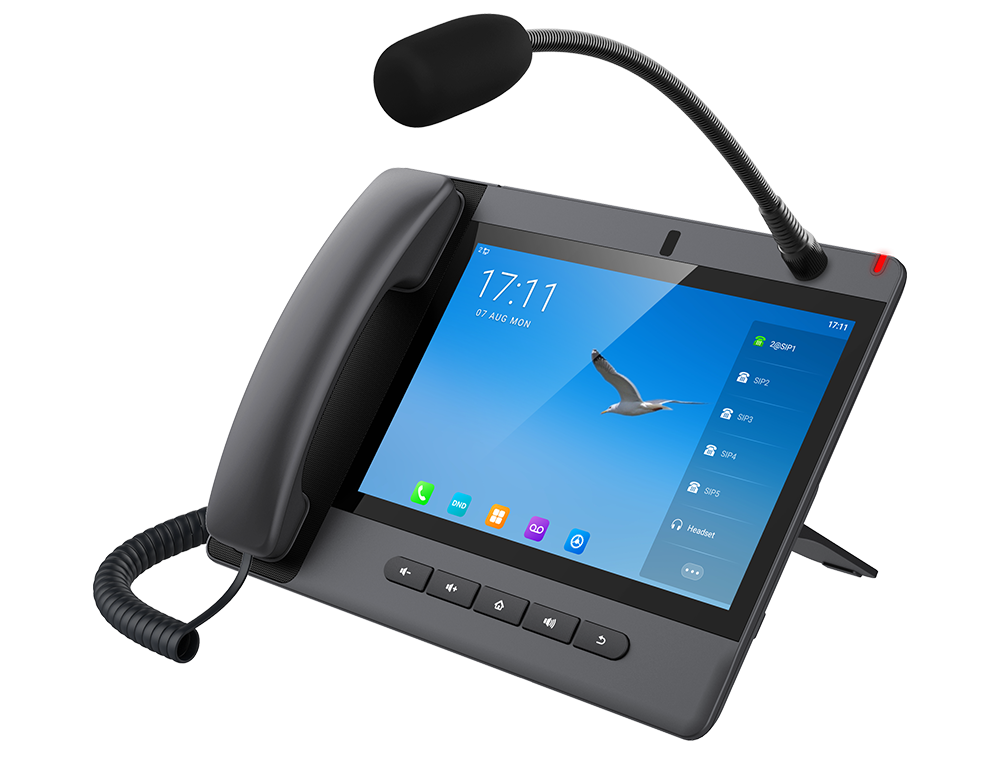

A320i is a visualization paging console phone for industry customers. It is equipped with a gooseneck microphone and supports HD hands-free calling. Featuring 112 DSS keys, a 10.1-inch color touch screen, Wi-Fi, and Bluetooth, the Fanvil A320i enables smart and simple daily communication. It has a built-in adjustable camera and an HD PTM handset, delivering a great audio and video experience for group conferences. Fanvil A320i has a built-in broadcasting system that is compatible with the standard SIP protocol, making it an ideal choice for management centers or command centers with functions such as making video call, two-way intercom, monitoring, and broadcasting.
Highlights
20 SIP lines, 10-party audio conference,3-party video conference
Equipped with a PTM handset, standard/PTT handset is optional
Equipped with a gooseneck microphone for further sound pickup distance
Integrate a public address software to build a broadcasting system
Built-in adjustable 8 mega-pixel camera with a privacy cover
112 DSS softkeys on 10.1” touch screen
HD audio on speaker and handset
Support Bluetooth 5.0 and 2.4G/5G Wi-Fi
Video Codec H.264, support video call.
Dual Gigabit ports, PoE Integrated.
Generic
20 SIP Lines
HD Voice
Support Video Call
PoE Enabled
10.1-inch (1280x800) touch screen
Handset / Hands-free / Headset mode
Intelligent DSS Keys (virtual buttons)
Optional External Power Supply
Operation System
Android 9.0 OS with higher security and better compatibility
Built-in applications: Files, Calendar, Gallery, Browser, Email, Calculator, Notepad, Sound Recorder, Clock, Video, Music Secondary development of API
Support third-party applications installation.
Phone Features
Local phonebook (2000 entries)
Remote phonebook (XML/LDAP, 2000 entries)
Intelligent search for contacts and call Log
Call logs (In/out/missed, 1000 entries)lack/White list call filter
Screen saver
Voice message waiting indication (VMWI)
Programmable DSS/Soft keys
Network time synchronization
Built-in Bluetooth 5.0
Built-in Wi-Fi :
2.4GHz, 802.11 b/g/n
5GHz, 802.11 a/n/ac
Action URL / Active URI
UaCSTA
Audio/Video recording
SIP Hotspot
Group broadcasting
Action plan
Group listening
Call Features
Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (On server)
10-party Audio Conference,3-party Video Conference
Hot Line
Hot desking
BLF
Video
Video decoding: H.264, H.265(optional)
Video call resolution: CIF/VGA/4CIF/720P/1080P
Image format: JPEG/PNG/BMP
Video format: MP4
Bandwidth selection: 64kbps~4Mbps
rate selection: 5~30fps
Video from remote site can be displayed in full screen
Video call
Video Preview
Camera:
> 8 mega-pixel (Adjustable Angle)
> Mechanical shutter for privacy
Audio
HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
HAC handset
Wideband ADC/DAC 16KHz Sampling
Narrowband Codec: G.711a/u, G.729AB, iLBC
Wideband Codec: G.722, Opus
Full-duplex Acoustic Echo Canceller (AEC)
Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
Network
Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
IP Mode: IPv4
IP Configuration: Static / DHCP
Network Access Control: 802.1x
VPN: OpenVPN (Requires third-party app support)
VLAN
LLDP
CDP
QoS
Protocols
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
CDP
LLDP
802.1x
OpenVPN (Requires third-party app support)
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
Deployment & Management
Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Web Management Portal
Supports the third-party communication APP
Supports Web, Telnet
Supports encrypted configuration files download with AES
Supports Web upgrade
Supports factory reset data
Physical Specifications
Color: Grey (White: customizable)
LCD x1: 10.1- inch (1280x800) color touch screen
Physical keys x5: Volume -/Volume +/Home/Hands-free/Return
HD Handset (RJ9) x1: A320i equip with PTM handset, standard /PTT handset is optional
Standard handset: without button
PTT handset: push the button to talk
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
Gooseneck Microphone x1
Directional microphone
Frequency response: 20Hz~20KHz
SNR: ≥60 dB.1kHz at 1 Pa
Back Rack x1
RJ9 Port x2: Connect with Handset
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
USB2.0: Type A x1, connect with USB card
Safety Keyhole x1
Power: DC 5V/2A or PoE
Power Consumption (PoE): 2W ~ 9.77W
Power Consumption (Adapter): 1.2W ~ 7.75W
Working Temperature: 0~45℃
Working Humidity: 10~95%
Installation: Desktop
Qty/CTN: 10 PCS
N.W/CTN: 19.94kg
G.W/CTN: 20.94kg
Device Dimensions
Desktop Stand (Angles 1): 309 x 214 x 187mm
Desktop Stand (Angles 2): 309 x 226 x 167mm
Gift Box Dimensions: 323 x 301 x 71mm
Outer CTN Dimensions: 624 x 383 x 348mm (10 PCS
