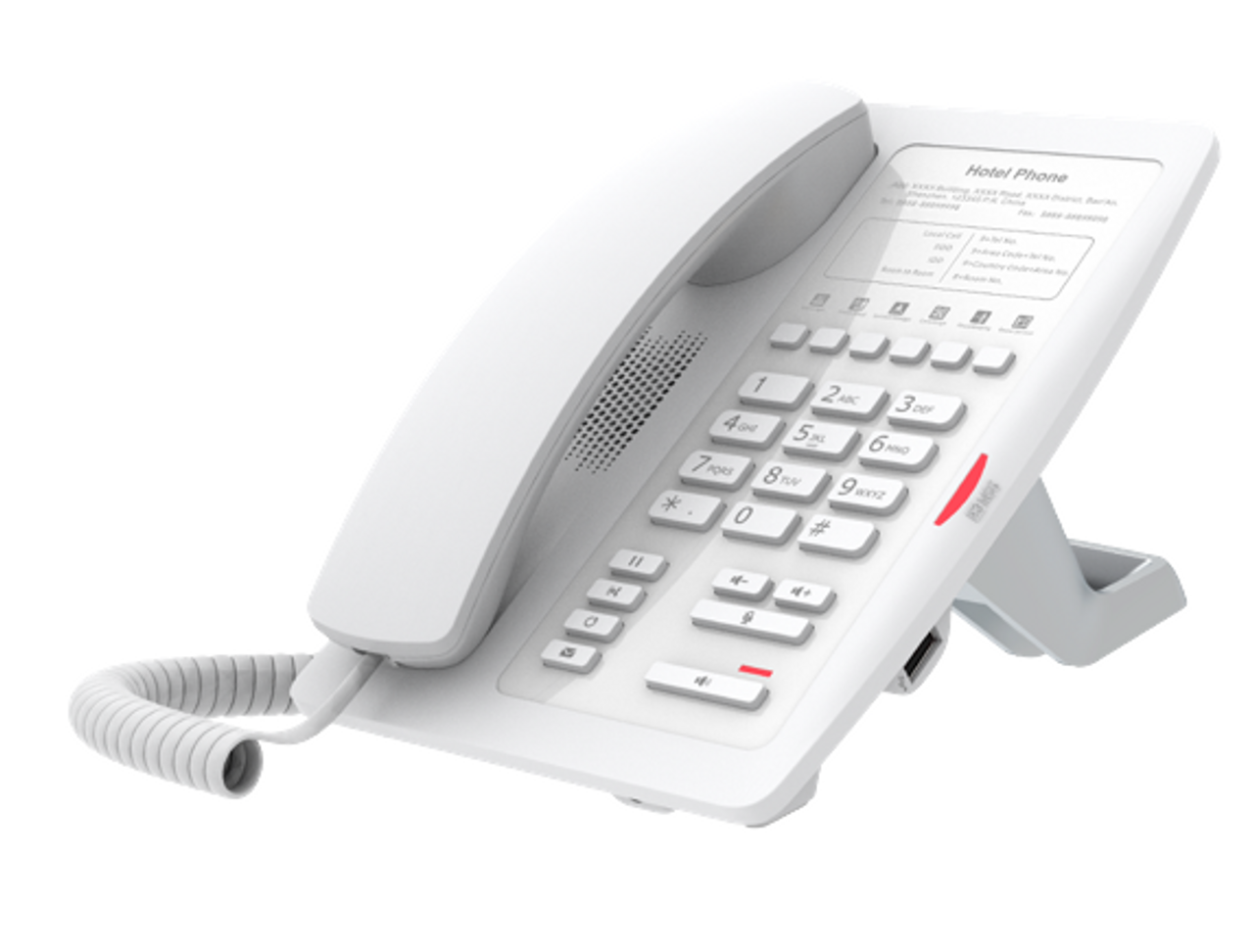

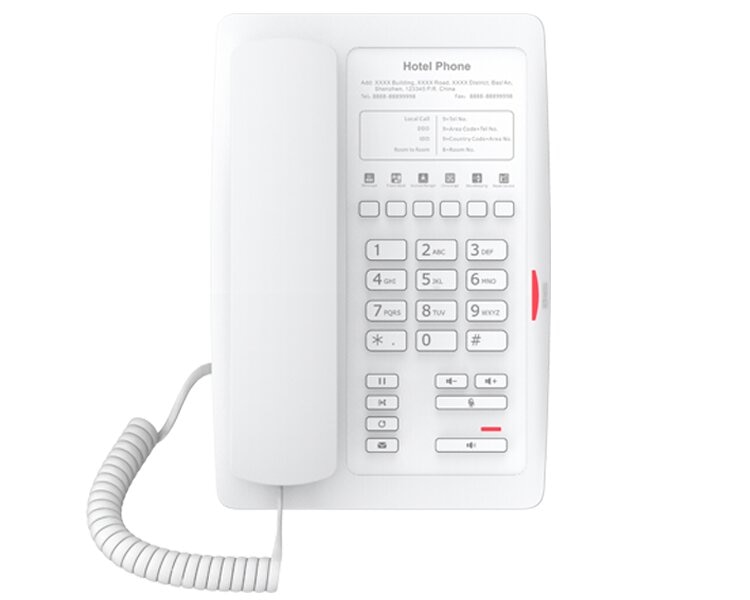

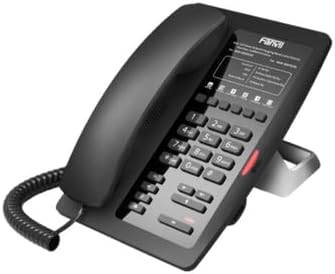

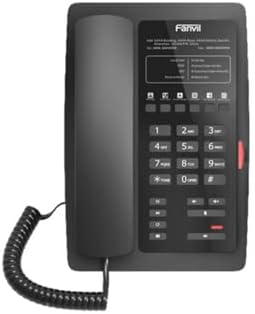

Fanvil H3 Hotel VoIP Phone

The Fanvil H3 is an IP hotel phone with HD voice and 6 programmable soft keys. The H3 has a full duplex, hands free speaker phone with echo cancellation, and many more standard phone features such as call transfer, call holding, and call waiting. This product also comes with a power supply included.

Fanvil H3 VoIP Phone Key Features

1 SIP line
1 USB Port for Phone Charging
6 Programmable Keys for Speed Dial Functions
Support PoE
Indicator Light
Call hold, Redial, Call Transfer, Hotline, Voice Mail etc.
Easy installation and configuration
High Interoperability - Compatible with major platforms: 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

Elegant Outlook
Fanvil H3 is the IP Phone designed for hotels. With stylish, fresh appearance, excellent voice quality, and matching integrated communication platform, it can become a new generation of hotel intelligent terminal equipment.

6 Programmable Soft Keys
The H3 comes with 6 programmable soft keys for maximum flexibility. Choose from a wide range of options, such as housekeeping, ticketing, switchboard, or room service.

Fanvil H3 Technical Specification

Generic

1 SIP Line
POE Enabled
Handset / Hands-free mode
Intelligent DSS Keys (speed dial key)
Desktop
Optional External Power Supply

Call Features

Call out / Answer
Mute / Unmute (microphone)
Call Hold / Resume
Call Waiting
Call Transfer (Attended/Unattended)
Speed dial
Intercom
Redial
Voice Message (on server)
Hot Line
Hot desking

Phone Features

Call logs with missed calls/ incoming calls/ outgoing calls
Max support 600 records(web)
Dial without registration
LED light
Programmable DSS keys
Custom LCD display text and logo(Only support for H5)
Action URL / Active URI
Web dial

Audio

Audio CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, G.722
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF: In-band, Out-of-Band - DTMF(RFC2833) / SIP INFO

Networking

10/100Mbps Ethernet, dual bridged port for PC bypass
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
QoS

Protocols

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Deployment & Maintenance

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
Web Management Portal
Web-based Packet-dump
Configuration Export / Import
Firmware Upgrade
Syslog

Physical Specifications

Keypad: 26 keys, including:
- 6 DSS Key
- 4 Function keys (Hold, Call Transfer, Redial, MWI)
- 12 Standard Phone Digits keys
- 3 Volume Control keys, Lower/Increase/Mute (Microphone)
- 1 Hands-free
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
RJ9 Port x1: Handset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
USB Port x1: Standard A, Only used for mobile phone charging
DC Power Input: 5V / 1A
Power Consumption: Idle 1.8W~2.5W, Peak 3W~4.5W
Working Temperature: 0~40°C
Working Humidity: 10~95%
Installation: Desktop Stand

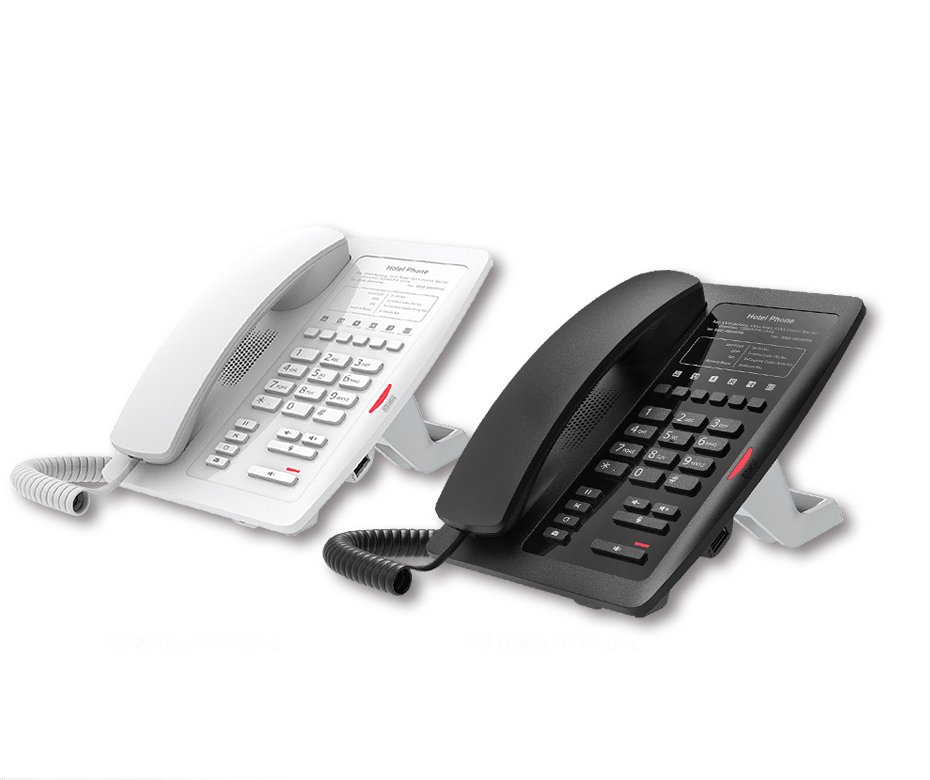

Colour: Black/White
