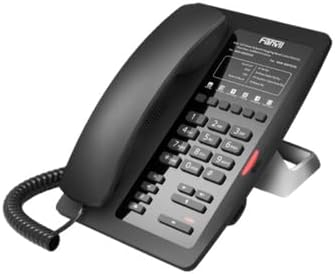

Fanvil H3W Hotel WiFi IP Phone

The Fanvil H3W is a WiFi IP phone with all the necessary VoIP features and built-in 2.4G Wi-Fi, providing a high-quality and convenient experience for users at an affordable price. More than a hotel IP phone, it is also suitable for the supermarket, hospital, shopping mall, etc.

Fanvil H3W VoIP Phone Key Features

2 SIP lines, SIP hotspot
Support audio codec Opus: can handle a variety of audio applications, including IP voice etc.
Built-in 2.4G Wi-Fi for IEEE 802.11b/g/n
Dual Network ports, integrated PoE
Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.

Wireless with Built-in WiFi
Get tired of the messy cables? Connecting to the Network with 2.4G built-in WiFi, Fanvil H3W can be installed anywhere in the room without the limitation of cabling.

Capture Every HD Voice
With the wide codec G.722 and Opus, Fanvil H3W can convey every voice during your communications clearly and stably.

Elegant Outlook
Fanvil H3W is the IP Phone designed for hotels. With stylish, fresh appearance, excellent voice quality, and matching integrated communication platform, it can become a new generation of hotel intelligent terminal equipment.

6 Programmable Soft Keys for Service Hotline
6 programmable Soft Keys for service hotline (Housekeeping, Ticketing,Switchboard, Food and beverage, etc) and the hotel considerate services(Morning call, Voice message, and etc).

Fanvil H3W Technical Specification

Generic

2 SIP Lines
HD Voice
PoE
Handset / Hands-free mode
External Power Supply(Optional)

Phone Functions

Call logs (In/Out/Missed, Max support 600 records in the web)
Programmable DSS/soft keys
Action URL / Active URI
Web dial
Dial plan
SIP Hotspot
Distinctive ring
Multicast

Call Functions

Call out / Answer
Mute / Unmute
Call Hold / Resume
Speed Dial
Redial
Auto-Answering
Hot Line
Customised ring

Audio

Wideband ADC/DAC 16KHz sampling
Narrowband codec: G.711A/U, G.729AB, iLBC
Wideband codec: G.722, Opus
Full-duplex hands-free speakerphone with AEC
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
VQM voice quality monitoring

Protocols

SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
PPPoE
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Deployment & Maintenance

Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
Web management portal
Web-based packet dump
Configuration export / import
Firmware upgrade
Syslog

Physical Specifications

Keypad: 26 keys, including:
- 6 DSS Key
- 4 Function keys (Hold, Call Transfer, Redial, MWI)
- 12 Standard Phone Digits keys
- 3 Volume Control keys, Up/Down/Mute(with red colour LED)
- 1 Hands-free key
MSG indicator (with red colour LED) x1
HD Handset (RJ9) x1
Standard RJ9 Handset Cord x1
RJ9 Port x1: Handset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
USB Port x1: Standard A
Power: 5V/2A or PoE
Power Consumption (PoE): 1.5W ~ 5.65W
Power Consumption (Adapter): 2.13W ~ 7.46W
Working Temperature: 0~45℃
Working Humidity: 10~95%
Installation: Desktop
Colour: Black/white
