H4
Fanvil
New
1 Year
| Color: | |
|---|---|
| Quantity: | |

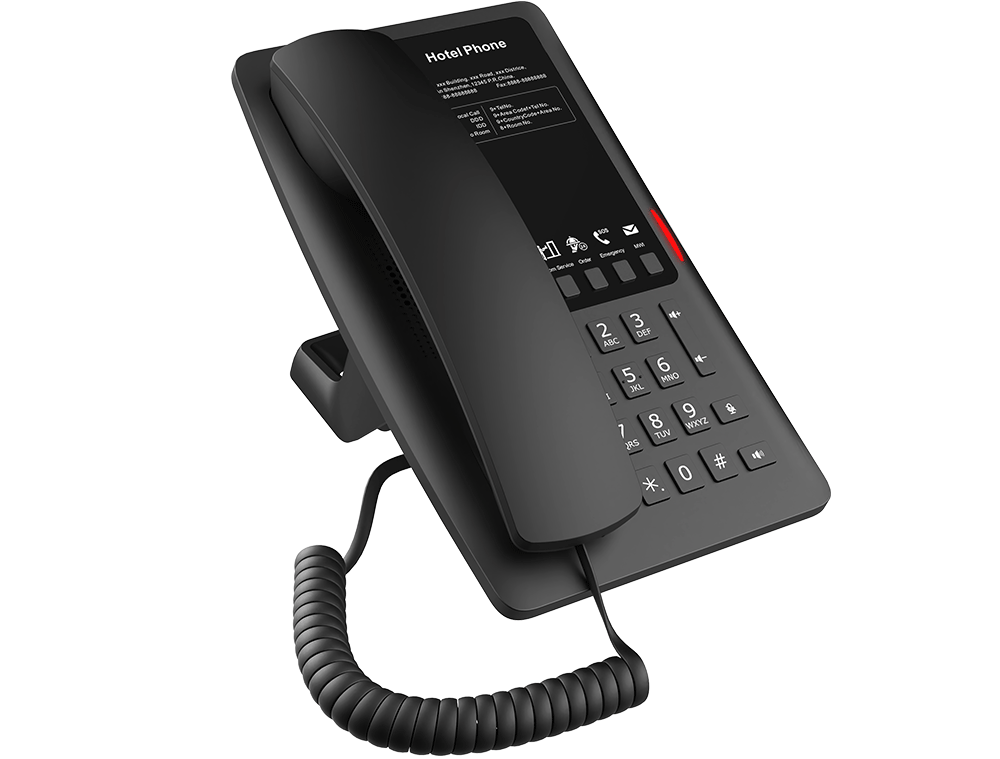

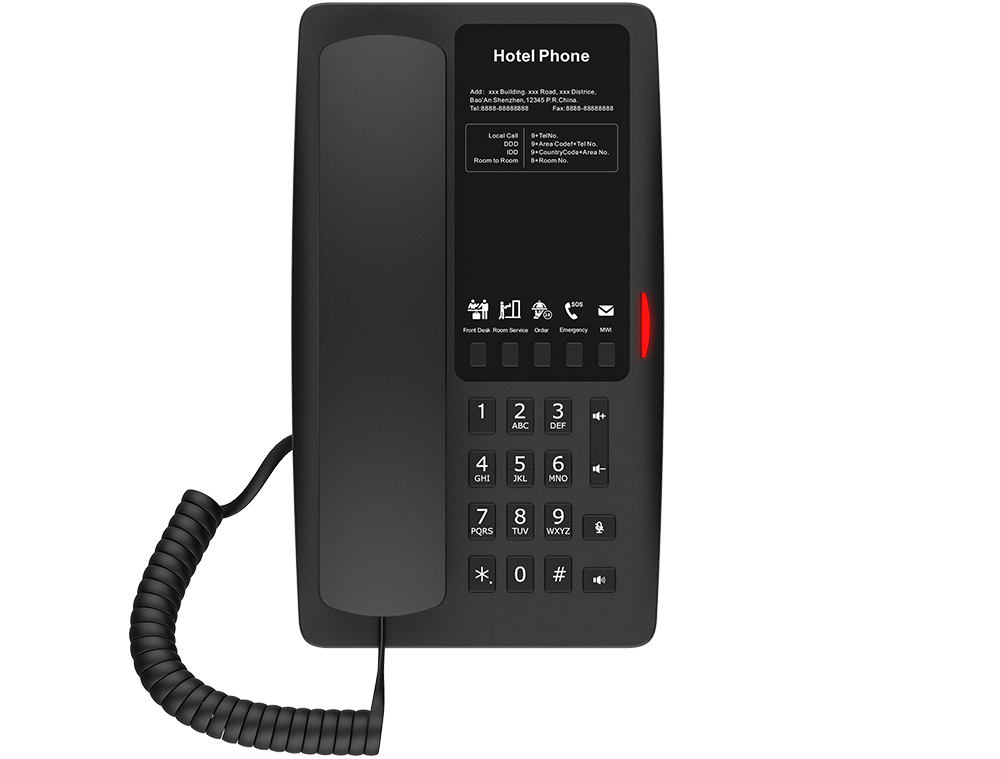

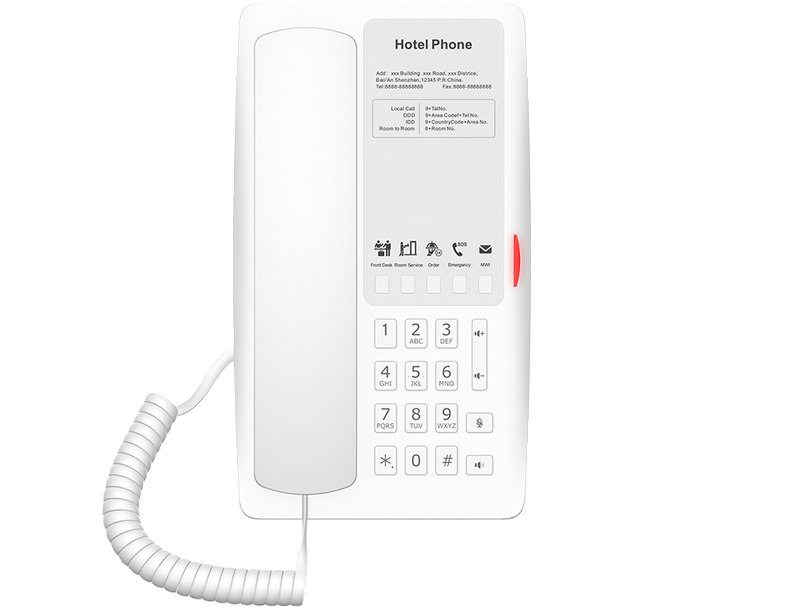

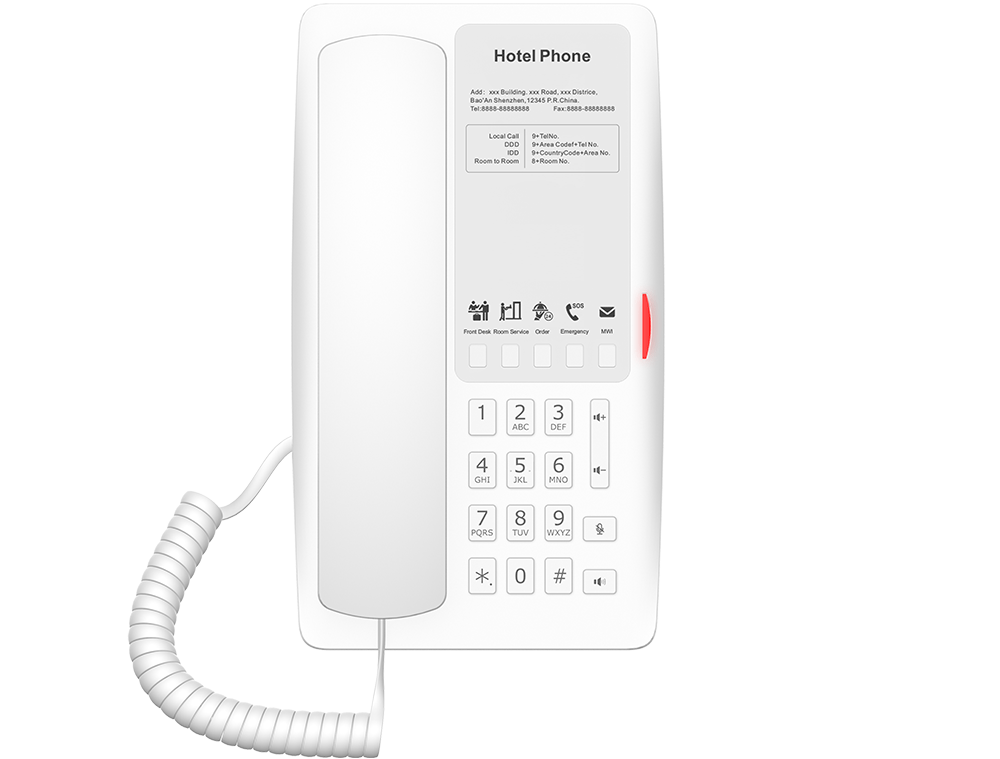

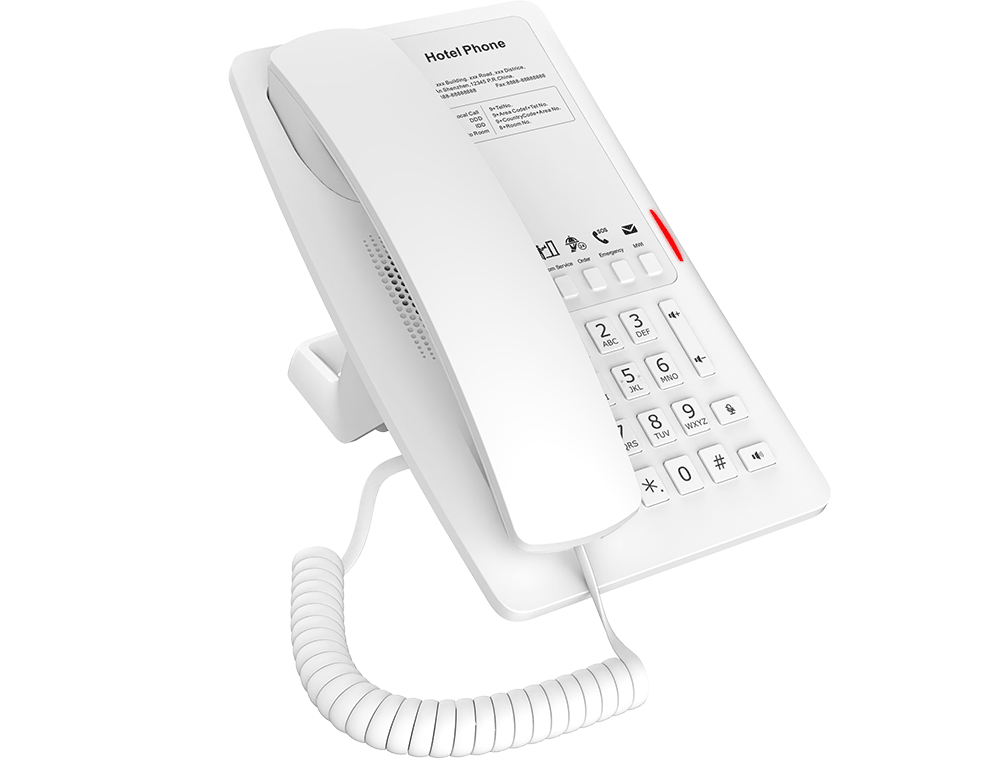

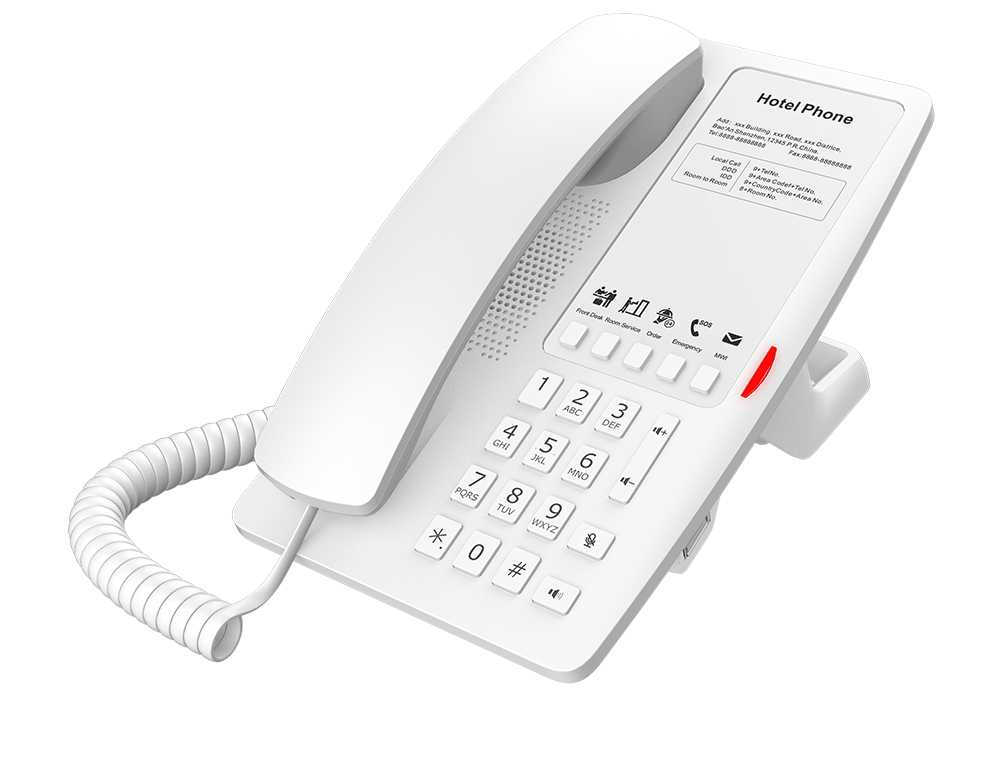

The Fanvil H4 is a cost-effective hotel IP phone with an elegant and stylish design, tailored for hotel environments while also suitable for shopping malls, hospitals, and other settings. It features HD voice, Power over Ethernet (PoE), and five programmable soft keys for quick access to hotel service hotlines.
Key Features
1. Communication & Calling
2 SIP Lines: Supports dual-line registration.
HD Voice: Delivers crystal-clear call quality.
all Functions: Supports call/answer, mute, hold/resume, speed dial, hotline, and voice messaging.
Audio Codecs:
Narrowband: G.711A/U, G.729AB, G.723.1, G.726, iLBC
Wideband: G.722, Opus
Noise Reduction: Includes Acoustic Echo Cancellation (AEC), Noise Suppression (NN), Automatic Gain Control (AGC), and more.
2. Networking & Connectivity
Wired Network: 10/100Mbps Ethernet port with PoE support (IEEE 802.3af compliant).
IP Protocol: Supports dual-stack IPv4/IPv6, DHCP/static IP configuration.
VPN: Compatible with L2TP and OpenVPN.
QoS & Security: Supports VLAN (802.1Q), LLDP, and RTCP-XR (voice quality monitoring).
3. Programmable Keys & Expansion
5 DSS Soft Keys: Customizable for functions (e.g., speed dial, service hotline) and icons.
USB-A Port: For external devices or charging (requires adapter when not using PoE).
4. Management & Deployment
Auto-Provisioning: Supports FTP/TFTP/HTTP/HTTPS/DHCP OPT66/TR-069.
Remote Management: Web-based interface for firmware updates, configuration backup, and log viewing.
Physical Specifications
Ports:
RJ45 (Network) ×1
RJ9 (Handset) ×1
USB-A ×1
Power:
PoE (0.66~4.07W) or external DC 5V/2A adapter (0.85~5.5W).
Environmental Tolerance:
Operating Temperature: 0°C~45°C
Humidity: 10%~95% (non-condensing)
Dimensions & Weight:
Device (with desktop stand): 221×127.5×70.5 mm
Net Weight: ~0.785 kg (per unit)
The Fanvil H4 is a cost-effective hotel IP phone with an elegant and stylish design, tailored for hotel environments while also suitable for shopping malls, hospitals, and other settings. It features HD voice, Power over Ethernet (PoE), and five programmable soft keys for quick access to hotel service hotlines.
Key Features
1. Communication & Calling
2 SIP Lines: Supports dual-line registration.
HD Voice: Delivers crystal-clear call quality.
all Functions: Supports call/answer, mute, hold/resume, speed dial, hotline, and voice messaging.
Audio Codecs:
Narrowband: G.711A/U, G.729AB, G.723.1, G.726, iLBC
Wideband: G.722, Opus
Noise Reduction: Includes Acoustic Echo Cancellation (AEC), Noise Suppression (NN), Automatic Gain Control (AGC), and more.
2. Networking & Connectivity
Wired Network: 10/100Mbps Ethernet port with PoE support (IEEE 802.3af compliant).
IP Protocol: Supports dual-stack IPv4/IPv6, DHCP/static IP configuration.
VPN: Compatible with L2TP and OpenVPN.
QoS & Security: Supports VLAN (802.1Q), LLDP, and RTCP-XR (voice quality monitoring).
3. Programmable Keys & Expansion
5 DSS Soft Keys: Customizable for functions (e.g., speed dial, service hotline) and icons.
USB-A Port: For external devices or charging (requires adapter when not using PoE).
4. Management & Deployment
Auto-Provisioning: Supports FTP/TFTP/HTTP/HTTPS/DHCP OPT66/TR-069.
Remote Management: Web-based interface for firmware updates, configuration backup, and log viewing.
Physical Specifications
Ports:
RJ45 (Network) ×1
RJ9 (Handset) ×1
USB-A ×1
Power:
PoE (0.66~4.07W) or external DC 5V/2A adapter (0.85~5.5W).
Environmental Tolerance:
Operating Temperature: 0°C~45°C
Humidity: 10%~95% (non-condensing)
Dimensions & Weight:
Device (with desktop stand): 221×127.5×70.5 mm
Net Weight: ~0.785 kg (per unit)
