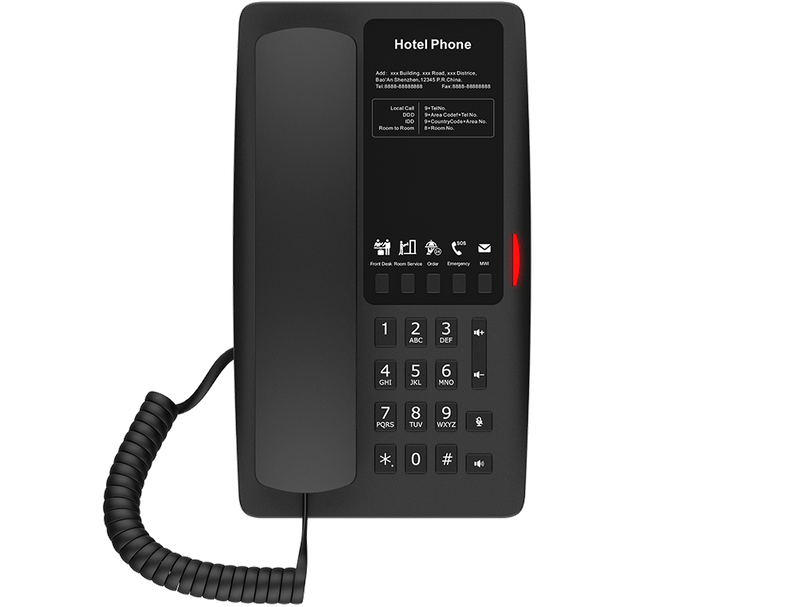

Fanvil H4W is a dual-mode powered wireless IP phone engineered for premium hotel environments. Integrating Wi-Fi 6 technology and customizable panels, it eliminates traditional room cabling constraints. With 5 programmable soft keys for instant access to room service/front desk/housekeeping, paired with interchangeable designer panels (supporting hotel VI color customization), it delivers stable HD calling while seamlessly blending into room aesthetics. Ideal for hotels, hospital VIP wards, and luxury venues demanding deployment flexibility and visual excellence.
Functional Attributes and Specifications
Core Features
Dual-Band Wi-Fi 6: Built-in 2.4GHz (802.11 b/g/n) and 5GHz (802.11 a/n/ac/ax) wireless connectivity, supporting WPA/WPA2-PSK/802.X EAP encryption for high-speed and stable wireless performance.
HD Voice: Supports wideband and narrowband codecs (G.711A/U, G.729AB, G.722, Opus, etc.), equipped with full-duplex hands-free speakerphone and Acoustic Echo Cancellation (AEC) for crystal-clear call quality.
5 Programmable Soft Keys: Customizable for hotel service numbers and icons, enabling quick access to frequently used functions (e.g., room service, front desk hotline).
PoE Support: Compliant with 802.3af standard, allowing power delivery via Ethernet cable (requires PoE switch).
USB-A Port: Enables direct charging of peripherals without additional adapters.
Networking & Protocols
Wired Network: 10/100Mbps Ethernet port, supporting IPv4/IPv6 dual-stack, DHCP/PPPoE/static IP configuration.
VPN Support: Integrated L2TP and OpenVPN for secure remote access.
QoS & VLAN: Supports 802.1P/Q priority tagging and VLAN segmentation to optimize voice traffic.
Protocol Compatibility: SIP v2 (RFC3261), RTP/RTCP/SRTP, STUN, TR-069, etc., compatible with mainstream IPPBX systems.
Call & Management Functions
Smart Calling: Supports call hold/resume, speed dial, hotline, voicemail, and multi-account registration (2 SIP lines).
Auto-Provisioning: Zero-touch deployment via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/TR-069.
Remote Management: Web-based management interface for firmware updates, configuration import/export, and system log monitoring.
Physical Specifications
Ports: RJ45 network port ×1, RJ9 handset port ×1, USB-A port ×1.
Power Consumption
PoE mode: 0.94~5.79W
Adapter mode: 1.51~7.8W (requires external 5V/2A power supply).
Environmental Tolerance: Operating temperature 0°C~45°C, humidity 10%~95%.
Dimensions & Weight:
Main unit (with desktop stand): 221×127.5×70.5mm
Net weight: ~0.785kg/unit (10 units per carton, total weight 7.85kg).
Additional Features
Customization: Supports hotel-exclusive faceplate designs; MSG indicator (red LED) for missed calls/messages.
Accessories: Includes handset, 1.5m Ethernet cable; optional black/white color options.
