H601
Fanvil
New
1 Year
| Color: | |
|---|---|
| Quantity: | |

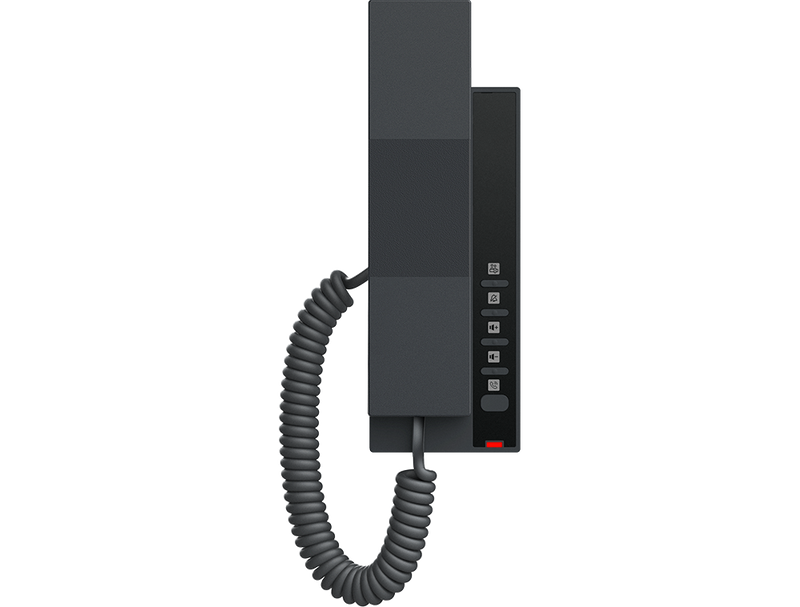

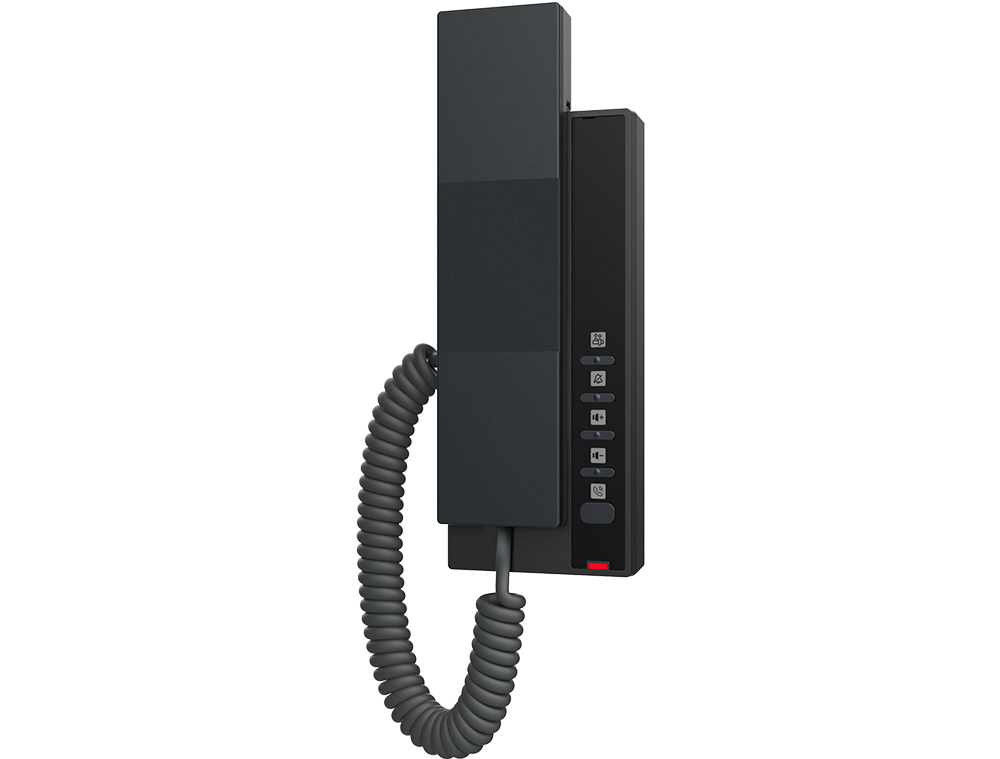

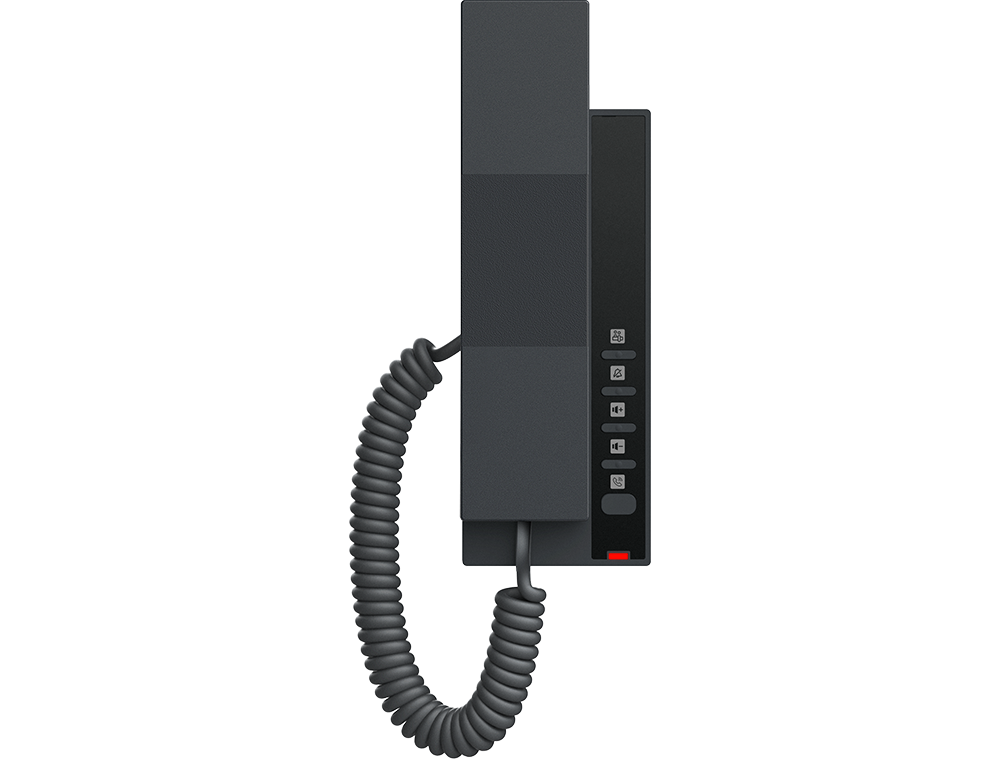

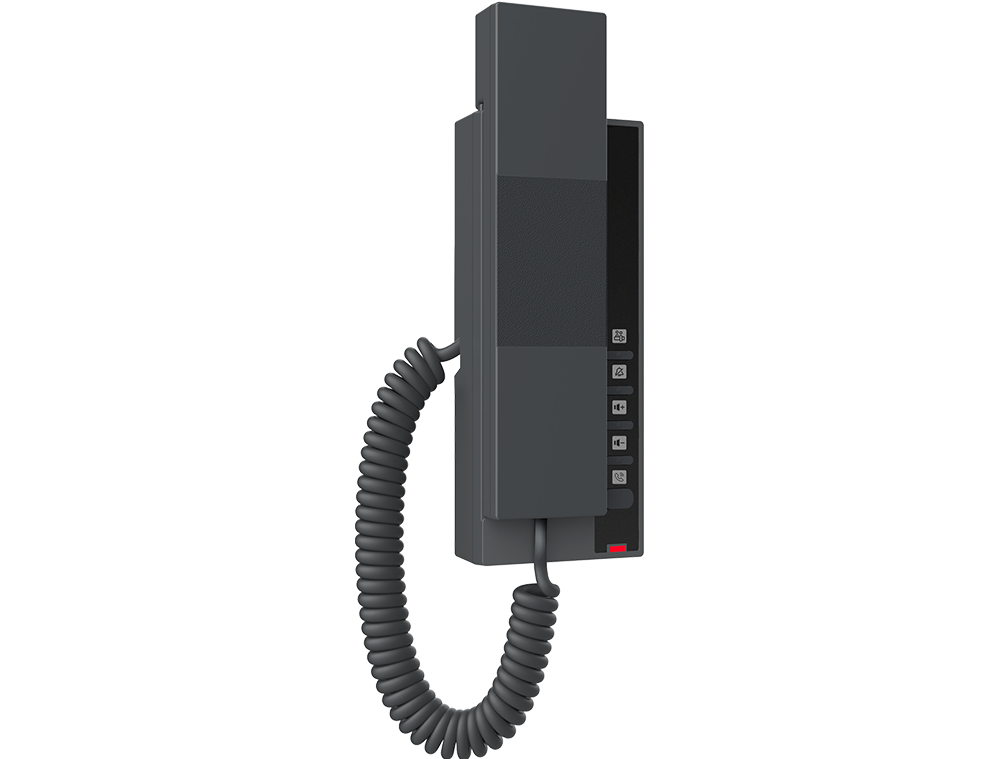

Fanvil H601 is a compact screenless IP phone designed for the hospitality industry, supporting PoE and DC dual power supply modes to provide a stable wired network connection. Equipped with 2 programmable keys and supporting G.722 and Opus HD voice codecs, this product is suitable for a variety of scenarios such as hotel rooms, hospitals, shopping malls and so on. Its minimalist design and dual wall/desktop mounting can effectively save space and reduce deployment costs.
Product Functional Attributes
1. Networking and Connectivity
Dual power supply mode: supports PoE (802.3af) and DC 5V power supply (adapter to be purchased separately)
Wired network: 10/100Mbps Ethernet port to ensure stable transmission
Protocol support: IPv4/IPv6 dual stack, compatible with SIP v2 (RFC3261), RTP/RTCP
2. Voice function
High-definition voice: supports G.722 (wideband), Opus and traditional narrowband codecs (G.711, G.729, etc.)
Intelligent noise reduction: full duplex echo cancellation (AEC), background noise suppression (NR), automatic gain control (AGC)
Quick call: support Hot Line (off-hook auto-dialing), Speed Dial (speed dialing key)
3. Programmable and Customizable

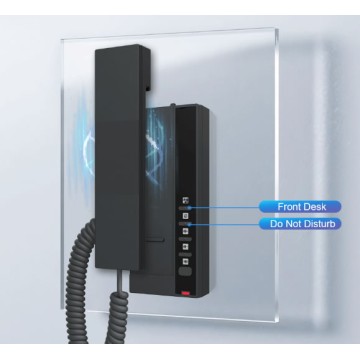

2 DSS keys: can be customized as hotel service shortcut keys (e.g. front desk, room service)
Personalized panel: support customized faceplate (e.g. hotel logo printing)
4. Management and Deployment
Auto Configuration: Batch deployment via TR-069, FTP/HTTP, support remote firmware upgrade
Web Management: Provide web interface to configure network and voice parameters.
5. Physical characteristics
Flexible installation: supports desktop placement or wall mounting (standard with mounting bracket)
Durable design: operating temperature 0°C~45°C, humidity 10%~95%.
Lightweight body: size 195×181×30mm, only about 200g.
Detailed Comparison of H601 and H601W
Comparison term | H601 | H601W | Note |
| Networking | Wired only (10/100Mbps RJ45) | Wired + Dual-band Wi-Fi 6 (2.4GHz & 5GHz) | H601W supports 802.11k/v/r fast roaming |
| Power supply | Supports PoE (802.3af) and DC (additional adapter required) | DC only (5V/1A adapter standard) | H601 does not come with power adapter by default |
| Power Consumption | Standby 0.8W, talk 2.5W | Standby 0.9W, talk 1.7W | H601W Slightly lower power consumption in wireless mode |
Mounting accessories | Power adapter not included | Power adapter included | Separate adapter required for H601 |
| Wi-Fi hotspot | Not supported | Supported (as a SIP client to connect to Wi-Fi) | H601W suitable for wiring-free environments |
VPN support | Wired only (L2TP/OpenVPN) | Both wired/wireless support | H601W encryption also available in wireless mode |
Typical Scenarios | Hotel rooms (wired), hospitals | Shopping malls, temporary locations (wireless coverage) | Selected based on network conditions |
Other common functions - 2 DSS programmable keys - Opus/G.722 HD voice support - Dual wall/desktop mounting - Same environmental adaptability (0°C~45°C) | |||
Selection Guide
Select H601: Scenarios with limited budgets, existing PoE switches, or requiring stable wired connections (e.g., standardized hotel deployments).
Select H601W: Flexible wireless deployment is required, wiring is not possible, or Wi-Fi 6 high-speed transmission is required (such as shopping mall renovation projects).
Tip: Both have passed the same certification (CE/FCC/RoHS) with no difference in voice quality and hotel features.
