H602W
Fanvil
New
1 Year
| Color: | |
|---|---|
| Quantity: | |

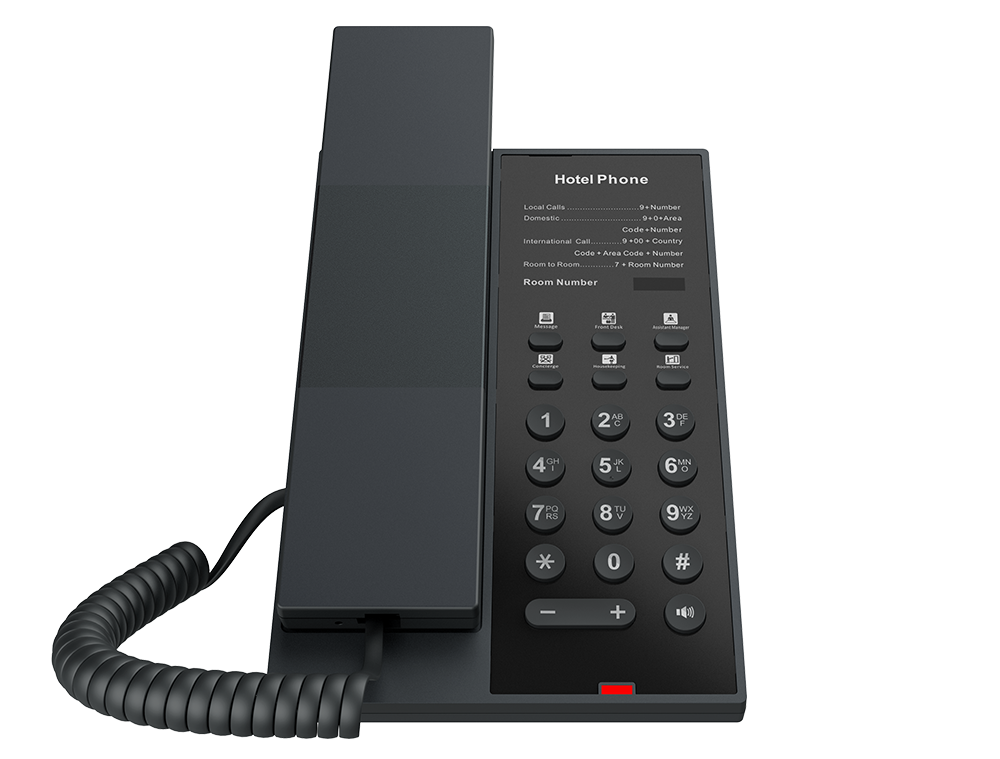

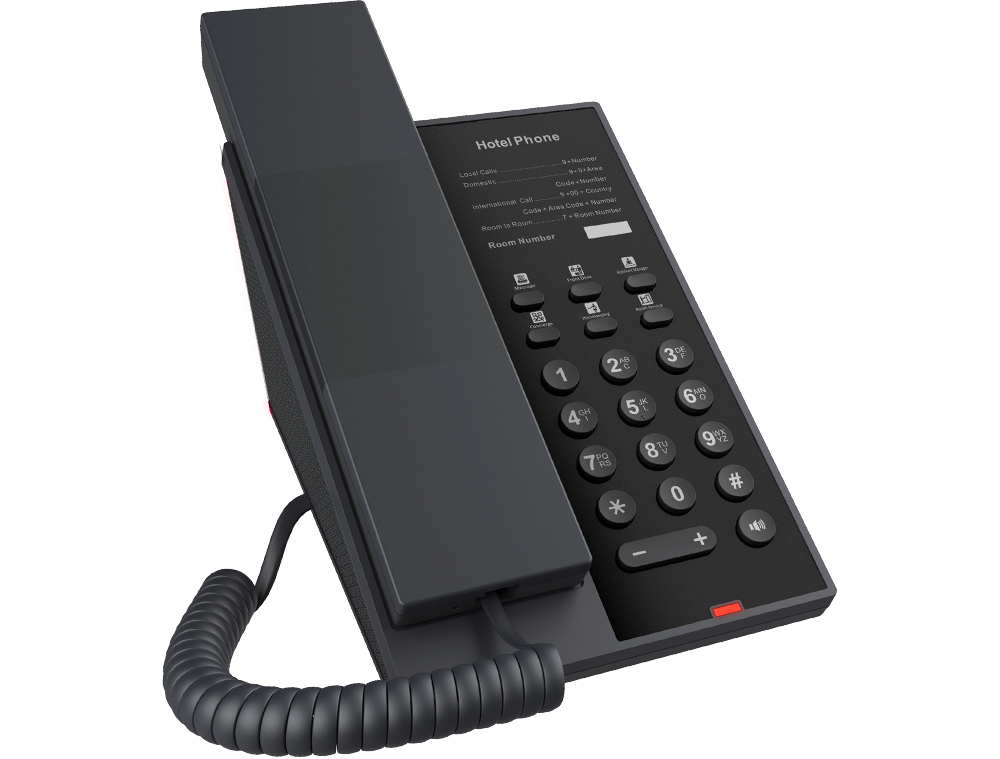

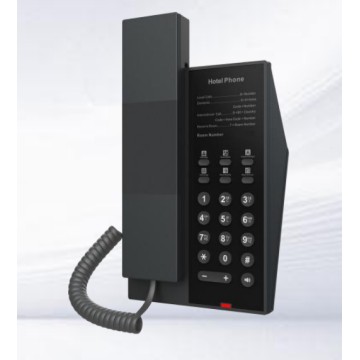

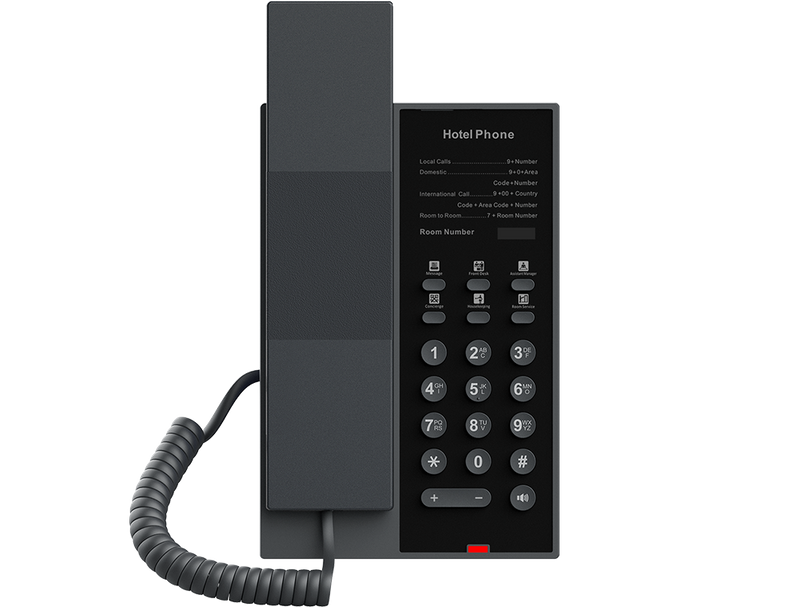

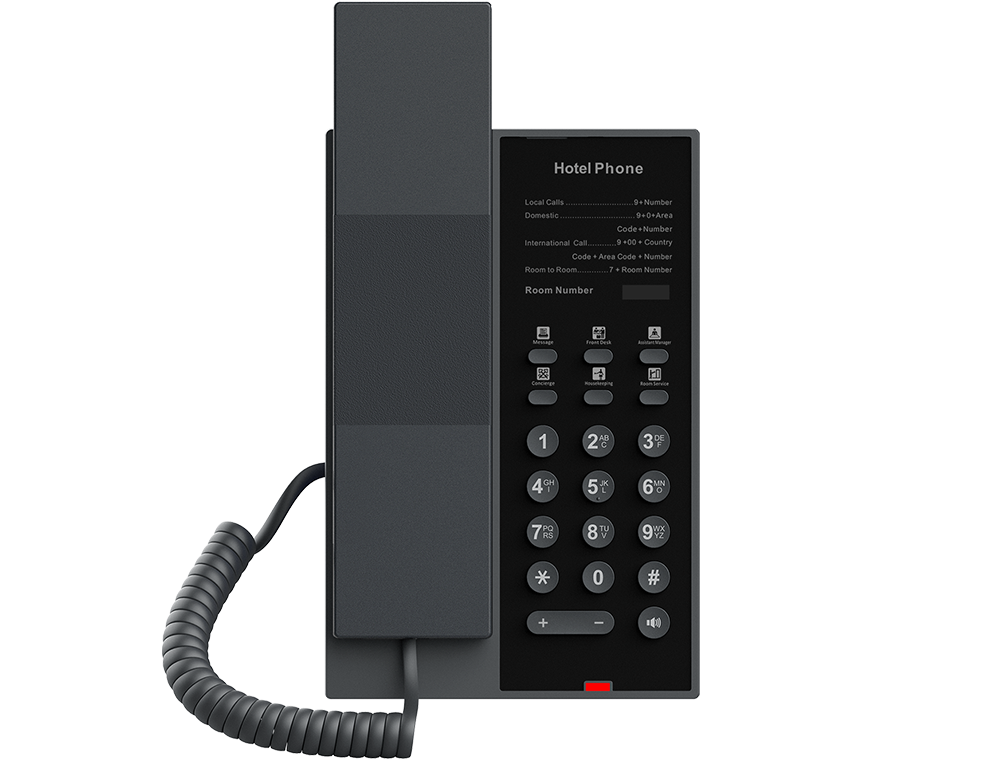

Fanvil H602W is a screenless IP phone designed for hotels with built-in dual-band WiFi 6 (2.4GHz & 5GHz) to provide a stable and efficient wireless communication experience. Supporting HD voice (Opus/G.722) and 6 programmable keys, it is suitable for a variety of scenarios such as hotels, shopping malls, hospitals, etc., helping to reduce network deployment costs and enhance user experience.
1. Wireless network function
Dual-band WiFi 6: supports 2.4GHz (802.11 b/g/n/ax) and 5GHz (802.11 a/n/ac/ax), providing faster connection speed and lower latency
Fast roaming: supports 802.11k/v/r protocols, realizing seamless switching of APs and ensuring uninterrupted calls
Security encryption: supports WPA/WPA2 Secure encryption: Supports WPA/WPA2, PSK, 802.1X EAP authentication to ensure secure data transmission
WiFi hotspot mode: can act as a SIP client to connect to hotel WiFi without additional wiring
2. Voice and Call Functions
HD Voice: Supports Opus, G.722 wideband codec, providing CD-level sound quality
Narrowband codec: Compatible with G.711A/U, G.729AB, G.723.1, G.726, iLBC, and adapted to traditional PBX systems
Echo Cancellation (AEC): Full-duplex speakerphone, effectively suppressing environmental noise
Intelligent Voice Optimization: Supports VAD (Voice Activation Detection), CNG (Comfort Noise Generation), PLC (Packet Loss Compensation). 3.
3. Programmable Keys and Shortcut Functions

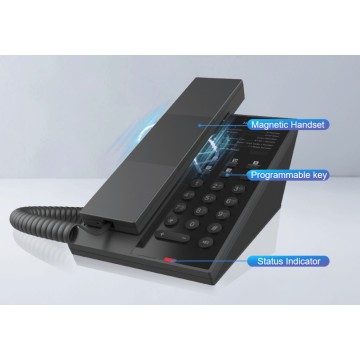

6 DSS (Direct Station Selection) Keys: can be customized as hotel service hotlines (e.g., reception, room service, check-out, etc.)
Speed Dial: supports Speed Dial, one-key call to frequently-used numbers
Hot Key Functions: can be set up for Hot Line (off-hook automatic call to specified numbers)
4. Network and Security
Dual Protocol Stack: supports IPv4/IPv6, adapting to future network upgrades
VPN Support: integrates L2TP, OpenVPN, ensuring remote communication security
QoS Optimization: supports 802.1p/q VLAN and LLDP, prioritizing the protection of voice traffic
Firewall Compatibility: STUN, NAT penetration to solve the restrictions of the corporate network
5. Management and Deployment
Auto-Configuration (Zero Touch): Support TR-069, FTP/HTTP auto-deployment, batch setup of hotel room extensions
Web Management: Remotely configure the network and voice parameters through the web interface
Firmware Upgrade: Support local/online upgrade, compatible with future new features
6. Power supply and energy efficiency
DC power supply: standard 5V/1A power adapter, low power consumption design (0.9W standby, 1.7W talk)
No PoE: H602W only supports DC power supply (H602 model supports PoE)
7. Applicable Scenarios
Hotel Rooms: Replace traditional fixed line, reduce wiring costs
Hospitals/Nursing Homes: One-touch call to nurse station, support for antimicrobial housing (optional)
Shopping Malls/Offices: WiFi wireless deployment, flexible relocation of extensions
Comparison of core features (distinguishing WiFi models)
| Functionality | H602 (wired version) | H602W (WiFi version) |
| Networking | 10/100Mbps Ethernet port | 10/100Mbps Ethernet port + Dual-band WiFi 6 (2.4GHz & 5GHz) |
| WiFi support | Not supported | Supports 802.11 a/b/g/n/ac/ax, WiFi 6 standard |
| Power supply | PoE (802.3af) or DC 5V/1A (adapter sold separately | DC 5V/1A only (adapter standard) |
| Audio coding | Supports HD/Narrowband coding such as G.711, G.722, Opus, etc. | Same as H602 |
| Programmable keys | 6 DSS softkeys, support speedy service dialing | Same as H602 |
| Deployment scenarios | Suitable for fixed wiring environments (e.g., hotel guest rooms, front desks) | Suitable for wireless flexible deployments (e.g., restaurants, conference rooms) |
Detailed Technical Parameters
General features (supported by both H602 & H602W)
Calling features: 2 SIP lines, HD Voice, hands-free calling, mute, speed dial, voice message. Supports DTMF (RFC2833/SIP INFO), Packet Loss Compensation (PLC), Dynamic Jitter Buffer.
Audio codecs: Narrowband: G.711A/U, G.729AB, G.723.1, G.726, iLBC Wideband: G.722 (16kHz), Opus (48kHz) Echo Cancellation (AEC), Noise Reduction (NR), Automatic Gain Control (AGC).
Network protocols: IPv4/IPv6, DHCP/PPPoE, VLAN (802.1Q), QoS (DiffServ), LLDP. Security encryption: WPA2-PSK, 802.1X EAP, L2TP/OpenVPN.
Management and maintenance: Auto-configuration (TR-069/FTP/HTTP), Web management interface Firmware Remote Upgrade.
H602W Exclusive WiFi Features
Dual-band WiFi 6:
2.4GHz (802.11 b/g/n/ax) + 5GHz (802.11 a/n/ac/ax) with MU-MIMO support.
Fast Roaming: Seamless switching over 802.11k/v/r protocols.
Transmission rate: up to 1.2Gbps (theoretical).
WiFi Security:
Encryption: WPA3 (optional), WPA2-PSK, 802.1X EAP-TLS/TTLS.
Hidden SSID, MAC address filtering.
