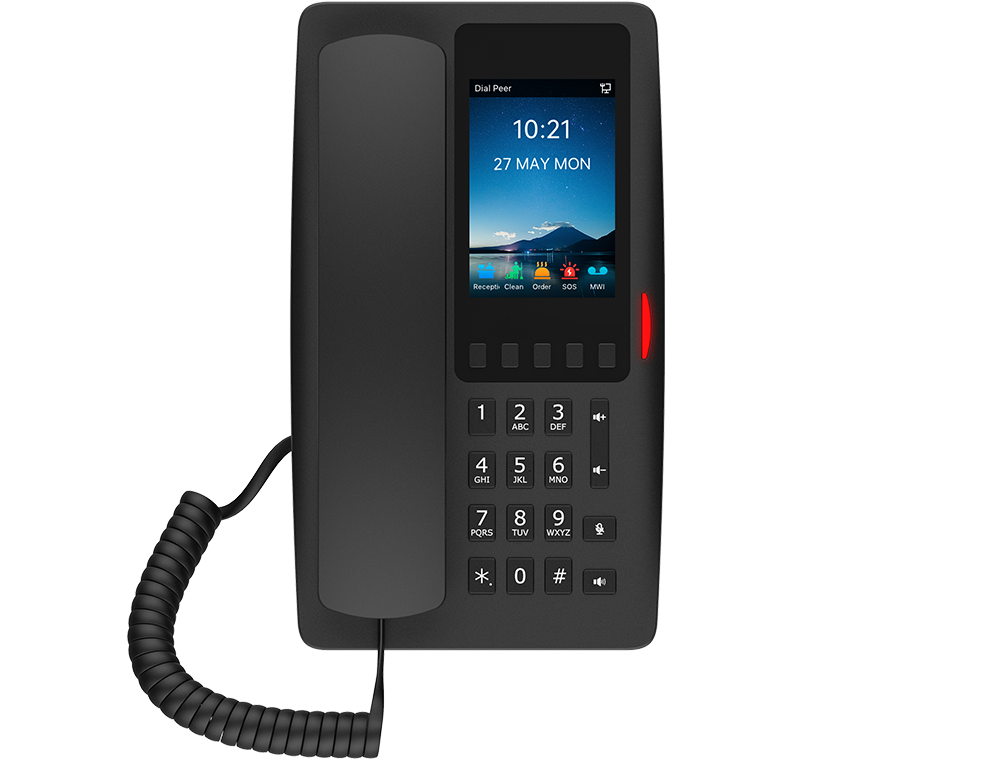

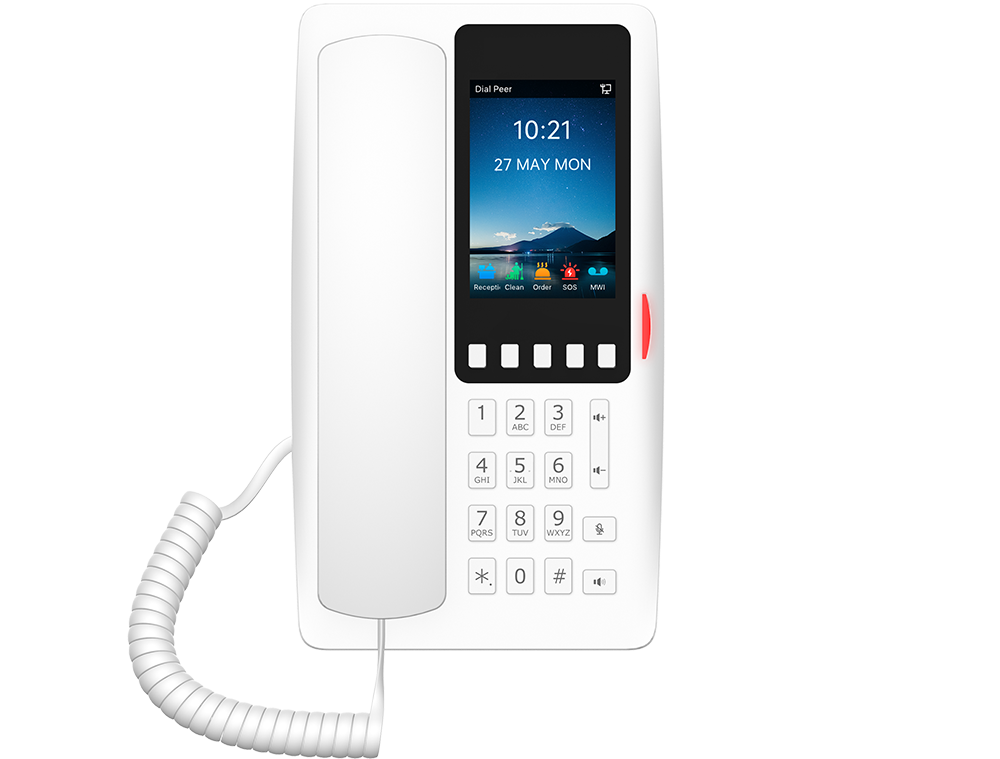

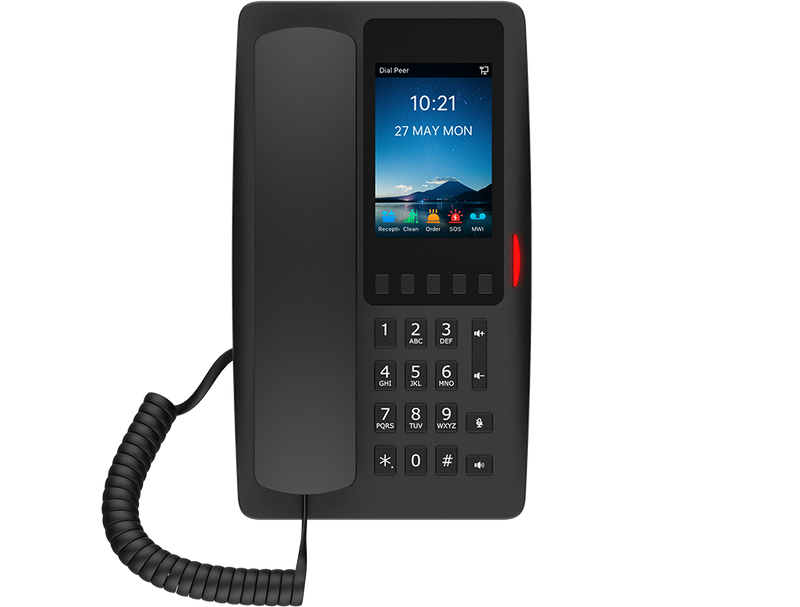

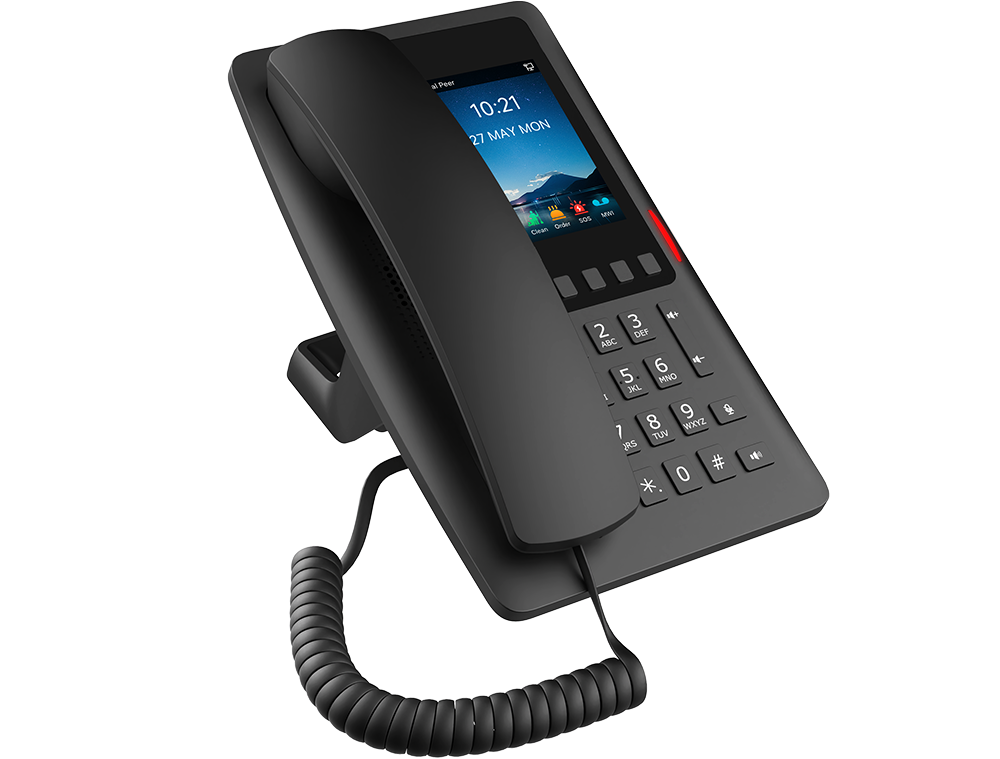

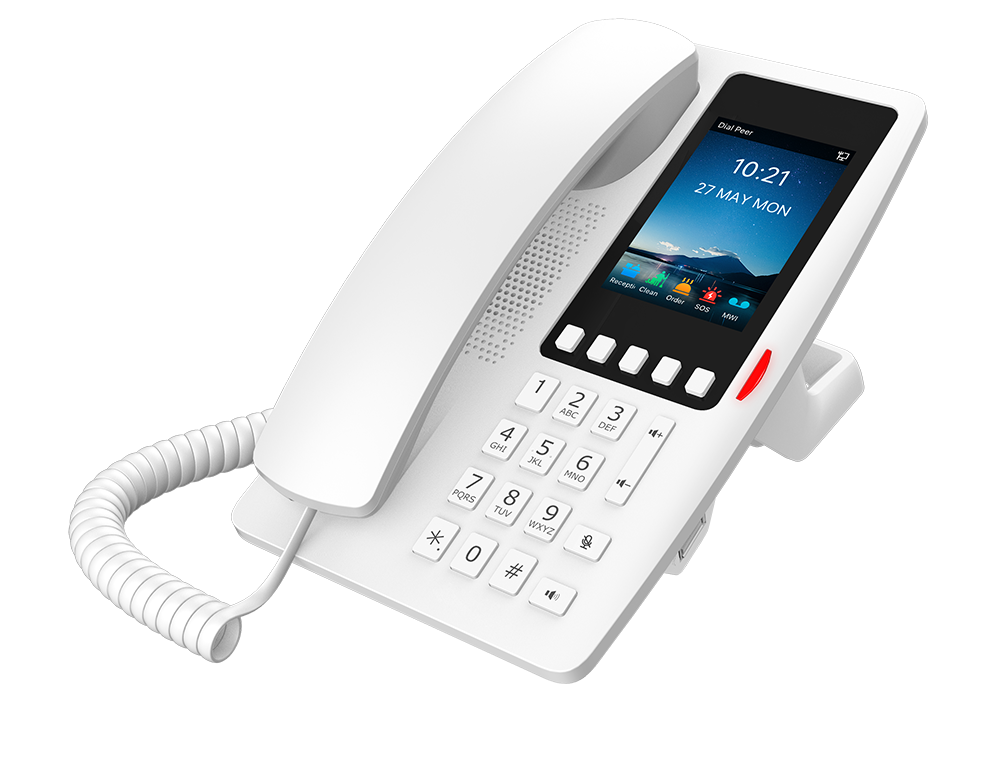

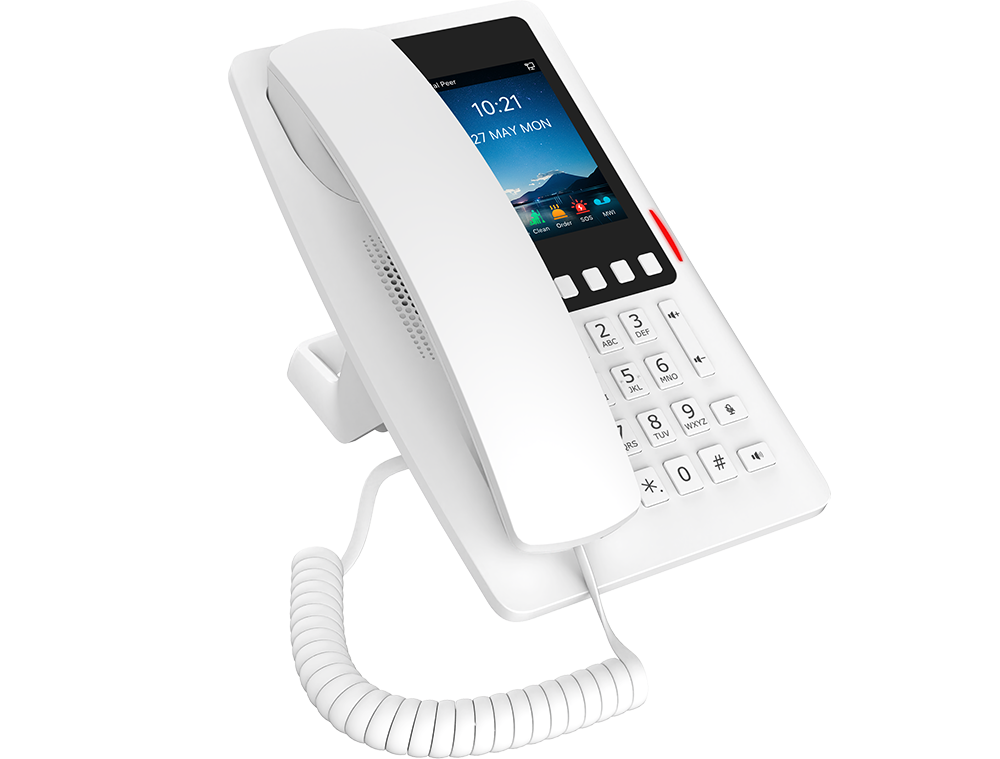

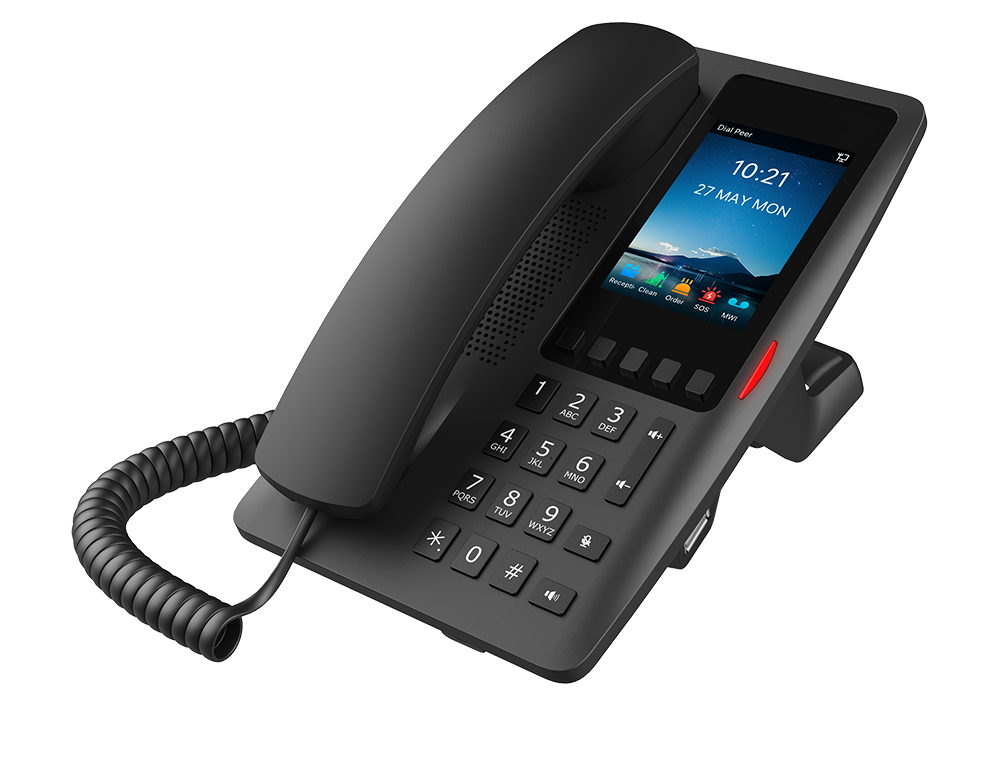

Fanvil H6W Dual-Band WiFi6 PoE Hotel IP Phone W/5 Soft Keys

Fanvil H6W is a cost-effective Wi-Fi IP phone with multiple functions and an elegant  appearance. It is equipped with 5 programmable soft keys for the services hotline,  catering to diverse hotel scenarios. H6W has built-in dual-band 2.4GHz & 5GHz Wi-Fi (Wi-Fi 6), ensuring seamless connectivity. Additionally, it features HD voice,  10/100Mbps Ethernet, and PoE, enhancing the overall user experience while  reducing hotel deployment costs. It is more than a hotel phone and can also be  applied in multiple scenarios, such as shopping malls, hospitals, and supermarkets.

Highlights

3.5-inch 320x480 IPS screen, customizable background image

Support image slideshow in screensaver mode

5 programmable softkeys, supporting custom hotel service numbers and icons

Customizable softkeys’ icons and hotel service numbers

Built-in dual-band 2.4GHz & 5GHz Wi-Fi (Wi-Fi 6)

Factory default SSID configuration

Sleep mode to reduce energy consumption

USB interface charging, no need for additional converter

Generic

2 SIP Lines

HD Voice

PoE

Built-in dual-band 2.4GHz & 5GHz Wi-Fi (Wi-Fi 6)

Hand set / Hands-free mode

Intelligent DSS Keys (speed dial key)

Desktop Stand

Optional External Power Supply

Call Functions

Call out / Answer

Mute / Unmute

Call Hold / Resume

Speed Dial

Redial

Hot Line

Voice Message

Audio

Wideband ADC/DAC 16KHz sampling

Narrowband codec: G.711A/U, G.729AB, G723.1, G726, iLBC

Wideband codec: G.722, Opus

Full-duplex hands-free speakerphone with AEC

Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)  / Background Noise Estimation (BNE) / Noise Reduction (NR)/ Automatic Gain Control (AGC)

Packet Loss Concealment (PLC)

Dynamic Adaptive Jitter Buffer

DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

VQM voice quality monitoring

Network

10/100 Mbps Ethernet

IP Mode: IPv4/IPv6/IPv4&IPv6

IP Configuration: Static / DHCP / PPPoE

Wi-Fi Encryption: WPA /WPA2-PSK /802.X EAP

Network Access Control: 802.1x

VPN: L2TP / OpenVPN

VLAN: 802.1P/Q

QoS

LLDP

RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)

Protocols

SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS

RTP/RTCP/SRTP

STUN

DHCP

IPv6

PPPoE

L2TP

OpenVPN

SNTP

FTP/TFTP

HTTP/HTTPS

TR-069

Deployment & Management

Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069

Web management portal

Web-based packet dump

Configuration export / import

Firmware upgrade

Syslog

Physical Specifications

LCD: 3.5-inch 320x480 IPS screen

Keypad: 21 keys, including
12 Standard Phone Digits keys
5 DSS keys
3 Function keys (Up/Down/Mute)

1 hands-free key

• MSG indicator (with red color LED) x1

• Handset (RJ9) x1

• Standard RJ9 Handset Cord x1

• 1.5M CAT5 Ethernet Cable x1

• RJ9 Port x1: Handset x1

• RJ45 Port x1: Network x1

• USB-A Port x1

• Power: DC 5V 2A or PoE

• Power Consumption (PoE): 1.56~8.29 W

• Power Consumption (Adapter): 0.97~6.08 W

• Working Temperature: 0~45°C

• Working Humidity: 10~95%

• Installation:

• Desktop Stand[30']: 221x127.5x70.5 mm

• Gift Box Dimensions: 168x228x85 mm

• Outer CTN Dimensions: 476x445x188 mm (10 PCS)

• Desktop

• Color: Black/White

• Qty/CTN: 10 pcs

• N.W/CTN: 8.15 kg

• G.W/CTN: 9.10 kg

• Device Dimensions:
