Fanvil IP Phone X2P Professional Call Center Phone with PoE and Color Display 2 SIP Lines Bundled with Dual Headset HT202

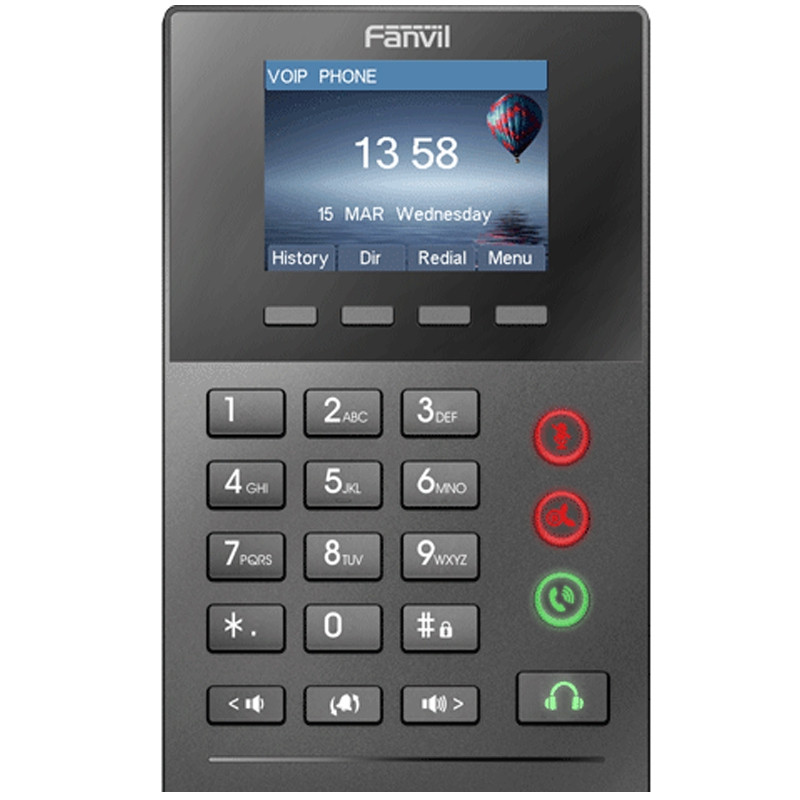

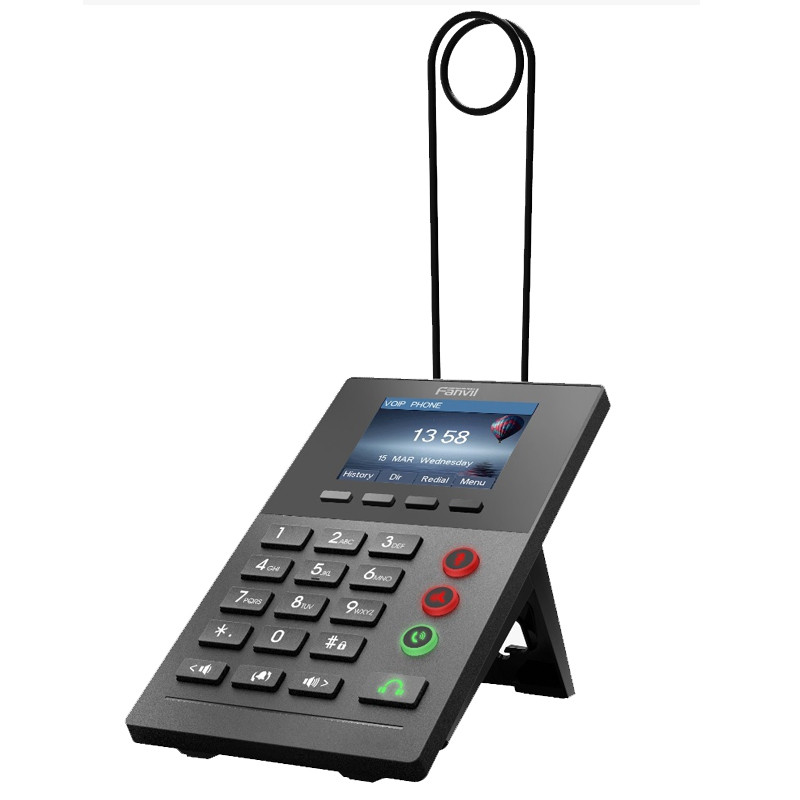

Fanvil X2P PoE IP Phone

The Fanvil X2P is a PoE enabled VoIP Phone designed for call center environments where Internet calling is key to business success. It boasts a high-performance, user-friendly design, which greatly improves business efficiency.

Fanvil X2P Key Features

2.8 inch (320 x 240) colour LCD screen
2 SIP Lines, 3-way conference
HD voice
Pedal switch for off-hook/on-hook call control
LED buttons for mute/hold and auto answer
Supports RJ9 and 3.5mm headset port
Supports EHS wireless headphoneCompatible with all major platforms: 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

2.8 Inch Main Colour Screen
The X2P combines a friendly UI with an attractive color screen to improve your user experience.

Fully Compatible
The X2P is fully compatible with all major platforms: 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

Fanvil X2P - Technical Specifications

Generic

2 SIP line
HD voice
PoE enabled or optional external power supply
2.8” colour screen
Headphone (HP) mode (EHS support for Plantronics headsets)
Environmentally friendly packaging
Industrial standard certifications: CE/FCC

Call Features

Call out / answer / reject
Mute / unmute (microphone)
Call hold / resume
Call waiting
Intercom
Caller ID display
Call forwarding (always / busy / no answer)
Call transfer (attended / unattended)
Call parking / pick-up (depending on server)
Redial / auto-redial
Do-not-disturb (DND)
Auto-answering
Voice message (on server)
Local 3-way conference
Hot line
Hot-desking

Phone Features

Phonebook (500 entries)
Remote phonebook (XML / LDAP)
Call log (100 entries, in / out / missed)
Black / white list call filtering
Voice Message Waiting Indication (VMWI)
Programmable soft keys
Network time synchronisation
Action URL / active URI
Multi-language support in screen and web UI: English, Chinese (Traditional/Simplified), Japanese, Russian, Italian, Turkish, Germany, Dutch, Spanish, Hebrew, Polish, French etc.

Audio

Wideband ADC / DAC 16KHz sampling
Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
Wideband CODEC: G.722
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic adaptive jitter buffer up to 300ms
DTMF: In-band, uut-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

10/100Mbps Ethernet, dual bridged port for PC bypass
IP configuration: Static / DHCP / PPPoE
Network access control: 802.1x
VPN: L2TP (basic unencrypted) / openVPN
VLAN
QoS

Protocols

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
PPPoE
802.1x
L2TP (Basic Unencrypted)
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR069

RFCs:

354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/2976/32
61/3262/3263/3264/3265/3268/3311/3489/3711/4346/4566/5630/5865

Deployment & Maintenance

Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
Web management portal
Web-based packet-dump
Configuration export / import
Phonebook import / export
Firmware upgrade
syslog

Physical Specifications

LCD: 2.8 inch (320x240) colour screen
Keypad: 23 keys, including
-4 soft keys
-3 function keys
-12 standard phone digits keys
-2 volume control keys, lower / increase (left / right)
-1 volume select key, (down)
-1 headset key
1.5M CAT5 Ethernet cable x1
3.5mm port x2: headset x1, foot pedal x1
RJ9 port x2: headset x1, monitor earphone x1
RJ45 Ethernet port x2: network x1 (802.3AF POE class 1 enabled)
PC x1 (bridged to network)
Main chipset: broadcom
DC power input: 5V / 0.6A
Power consumption: idle – 0.9~1.6W, peak – 1.6~2.5W
Working temperature: 0~40℃
Working humidity: 10~65%
Back rack x1: desktop stand
Colour: black
