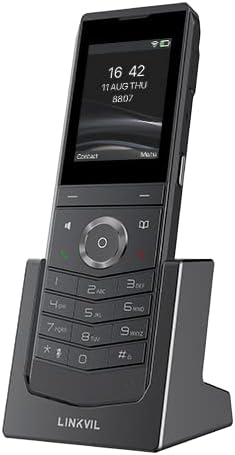

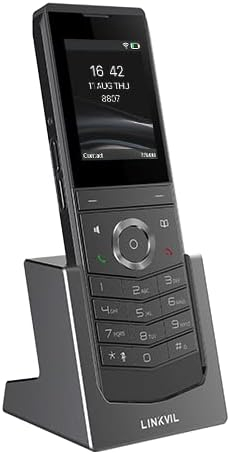

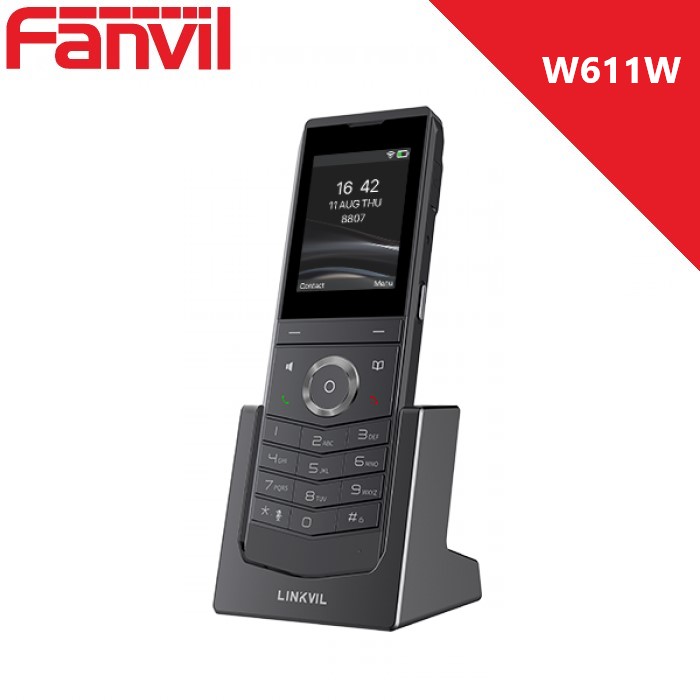

Fanvil Linkvil W611W Portable WIFI Phone

Fanvil Linkvil W611W is a portable, elegant Wi-Fi phone designed for mobile communication applications. Certified to IP67standard, the W611W is highly waterproof, dustproof, and can be dropped safely from a 1.8-meter height. It has excellent performance in different environments with humidity and dust. The W611W integrates Wi-Fi 6, bringing a superb wireless communication experience. Moreover, it integrates Bluetooth 5.0 for pairing with headsets and mobile devices.

Fanvil Linkvil W611W-NFR Key Features:

2.4" 240 x 320 colour screen with intuitive user interface
High protection level of IP67
Dual-band Wi-Fi 802.11 a/b/g/n/ac/ax Wi-Fi (Wi-Fi 6, 2.4GHz & 5GHz)
IEEE802.11k/v/r roaming
WPA / WPA2-PSK and 802.1X EAP encryption to ensure communications security
Push-to-talk (PTT) button for quick dial
Up to 9 hours’ talk time and up to 200 hours standby time

Installed with a rechargeable 1900mAh battery, the W611W is ready for 9 hours’ talk time or 200 hours standby time. The W611W is widely used in various wireless scenarios such as enterprises, shopping malls, residential areas, hotels and warehouses, providing users with high-quality mobile communication experience.

Beautiful colour screen

Supports WiFi 6

Fanvil Linkvil W611W Technical Specifications

Generic

2.4-inch 240*320 color high-definition LCD display
4 SIP lines
Caller ID
Handset/Hands-free/Headset Mode• Support custom DSS keys
HD Voice
Belt clip
Desktop charging base
Standard type-c interface
Rechargeable Lithium Battery
Support Wi-Fi 6
Support Bluetooth 5.0
Support multi language: English/Chinese/German/French/Italian/Portuguese/Russian/Spanish

Phone Features

Network time synchronization
Local contacts
Remote Phonebook (XML/LDAP, 1000 entries)
Multi-language optional
Call logs
Blocked List/Allowed List
Screen saver
Personalized ringtone settings
Screen backlight adjustment
Memorandum
SMS service
Voicemail（MWI）
Menu encryption settings
Keypad lock/ backlight adjustment
Volume adjustment

Call Features

Auto-Answering
Call out/Answer/Reject
Call waiting/Switch
Call forwarding
Speed Dial
Intercom
Anonymous calls
3-way Conference
Restrict outgoing calls
IP direct dial
Speed Dial
Emergency call
Caller ID Display
Inquiry (dialing, incoming and outgoing calls)
Do-Not-Disturb
PTT one-key call
Self-adaptive light-sensing screen off (during a call on the handset)

Audio

Narrowband Codec: G.711a/u, G.729AB,iLBC
Wideband Codec: G.722, Opus
Acoustic Echo Cancellation (AEC)- maximum 96ms echo delay cancellation
Voice Activity Detection（VAD）/ Comfort Noise Generation（CNG）/ Background Noise Estimation (BNE)
Packet Loss Concealment
Dynamic adaptive jitter cache up to 300ms
DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIPINFO

Network

Built-in Wi-Fi, support 802.11 a/b/g/n/ac/ax protocol: 2.4GHz IEEE 802.11 b/g/n/ax 5GHz IEEE 802.11a/n/ac/ax Encryption：WPA /WPA2-PSK，802.1XEAP
Built-in Bluetooth 5.0 module

Power Management

Reminder when charging
Full reminder
Low battery prompt
After abnormal shutdown, the charging will automaticallystar
Real-time statistics/display of system power

Protocols

RTP/RTCP/SRTP
STUN
HCP
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Deployment and Maintenance

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIPPnP/TR-069
Web management interface
Web-based Packet-dump
Configuration export/import
Firmware upgrade
Syslog

Physical Specifications

Protection class: IP67
Drop height: 1.8m
Shell material: plastic shell, two-color injection molding
Charging Base x1
Belt Clip x1
Rechargeable Battery x1 1900mAh
DC input: 5V/2A
Charging port: Type-c
Headphone jack: 3.5mm standard jack
Installation method: Belt Clip /Desktop
Operating temperature: 0℃~ 45℃
Storage temperature:-20℃~ 60℃
Relative humidity:10~95%
Product size:160*53*16mm
Product weight：:156g
Certificates：CE/FCC/UKCA/RoHS/SRRC
