X1EP
Fanvil
100% Original Brand
1 Year
| Color: | |
|---|---|
| Size: | |
| Quantity: | |

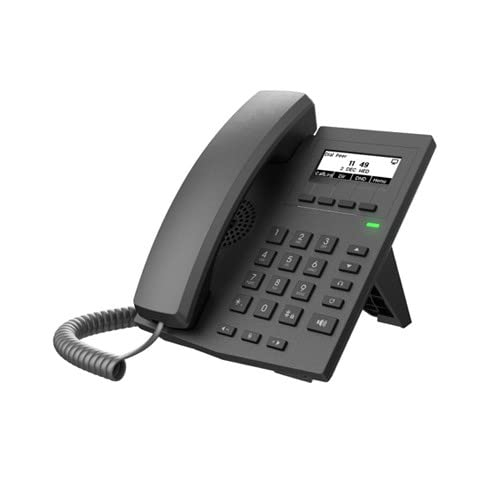

2 SIP Lines PoE Enable (X1EP) Dot-matrix Screen(No backlight) Handset / Hands-free / Headset mode Desktop Stand Optional External Power Supply Phone Features Local Phonebook (500 entries) Remote Phonebook (XML/LDAP, 500 entries) Call logs (In/out/missed, 600 entries) Black/White List Call Filter Voice Message Waiting Indication (VMWI) Programmable Soft keys Network Time Synchronization Support Recording (on Server) Action URL / Active URI UaCST
Call out / Answer / Reject Mute / Unmute (Microphone) Call Hold / Resume Call Waiting Intercom Caller ID Display Speed Dial Anonymous Call (Hide Caller ID) Call Forwarding (Always/Busy/No Answer) Call Transfer (Attended/Unattended) Call Parking/Pick-up (Depending on server) Redial Do-Not-Disturb Auto-Answering Voice Message (On server)
Handset (RJ9) x1 Standard RJ9 Handset Wire x1 1.5M CAT5 Ethernet Cable x1 Back Rack x1 RJ9 Port x2: Handset x1, Headset x1 RJ45 Port x2: Network x1, PC x1 (Bridged to Network) Power: 5V/0.6A or PoE (X1EP) Power Consumption (PoE): 0.98 W ~ 1.38 W (X1EP) Power Consumption (Adapter): 0.65 W ~ 0.96 W Working Temperature: 0~45℃ Working Humidity: 10~95% Installation: Desktop Stand Device Dimensions: 210.7x207.2x162mm
Wideband ADC/DAC 16KHz Sampling Narrowband Codec: G.711a/u, G.726-32K, G.729A,,iLBC Wideband Codec: G.722, Opus Full-duplex Acoustic Echo Canceller (AEC) Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) Packet Loss Concealment (PLC) Dynamic Adaptive Jitter Buffer DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833)
Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass IP Mode:IPv4/IPv6/IPv4&IPv6 IP Configuration: Static IP / DHCP / PPPoE Network Access Control: 802.1x VPN: OpenVPN (Requires third-party app support) VLAN LLDP CDP Q
| Brand | Fanvil |
|---|---|
| Manufacturer | Fanvil Technology |
| Product Dimensions | 20 x 20 x 15 cm; 900 g |
| Batteries | 1 12V batteries required. |
| Item part number | FAN-X1S |
| Compatible Devices | Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc. |
| Mounting Hardware | Fanvil X1EP IP Phone For Office, VoIP Phone for small and Medium-sized business |
| Display Type | lcd |
| Power Source | Corded Electric |
| Batteries Included | No |
| Batteries Required | No |
| Mounting Type | tabletop |
| Manufacturer | Fanvil Technology |
| Item Weight | 900 g |
