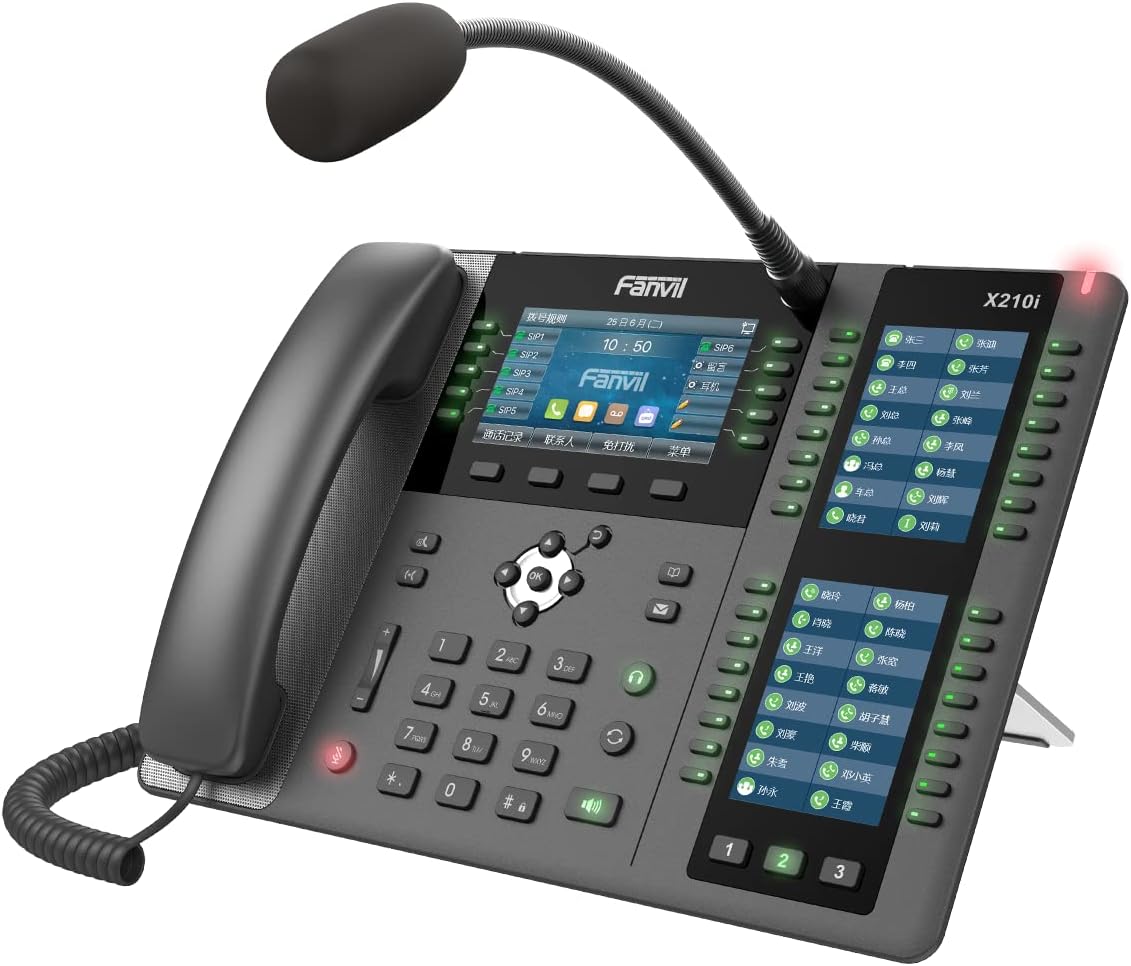

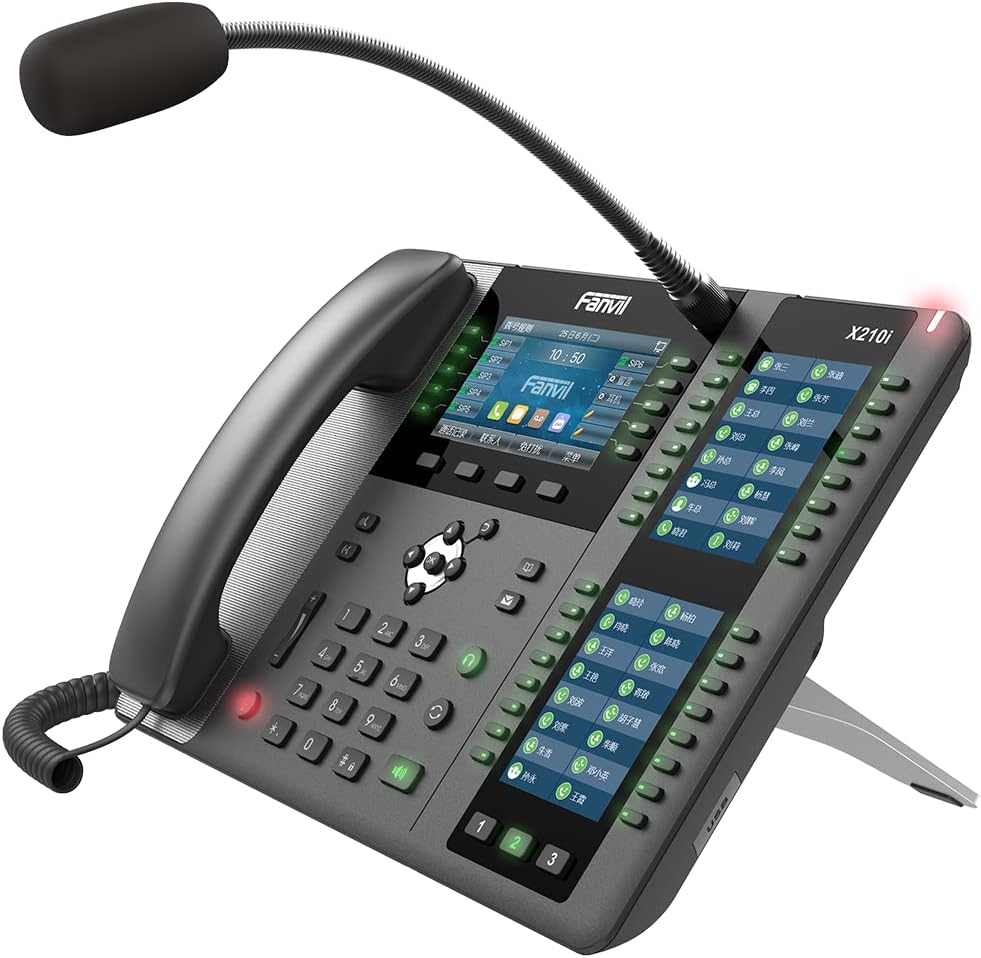

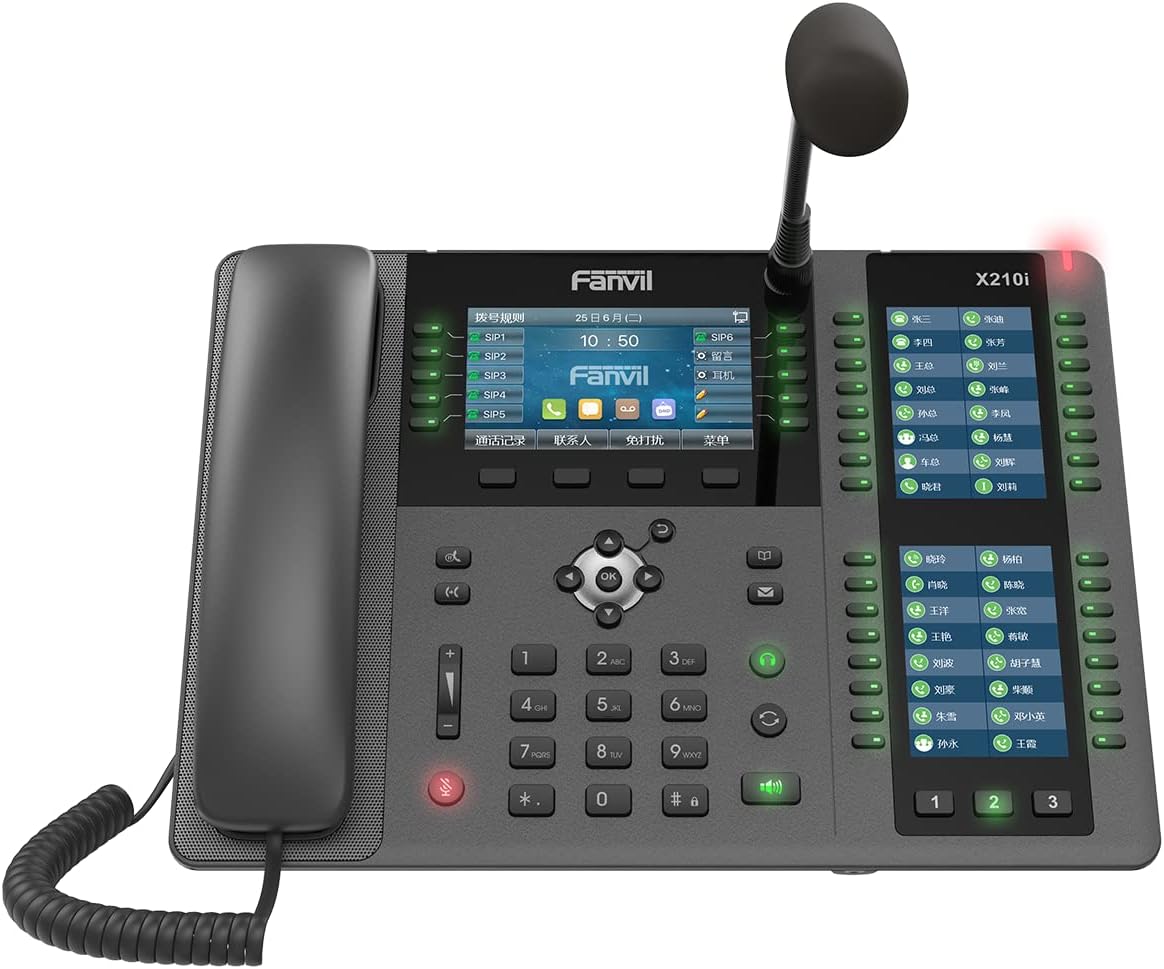

Fanvil X210i Paging Console Phone, 4.3-Inch Color Display, Two 3.5-Inch Side Color Displays for DSS Keys

Fanvil X210i is a visualisation paging console phone for the industry customer. It is equipped with a gooseneck microphone and supports HD hands-free calling. With intelligent programmable DSS buttons, you can set up a one-click call function to improve communication efficiency. It is compatible with the standard SIP protocol and can be used as a monitoring center or host for office manager with functions that enable calls for external & internal phones, two-way intercom, monitoring, and broadcasting. The X210i improves the management efficiency and emergency response capabilities.

Fanvil X210i Key Features

20 SIP lines, 3-way conference
HD audio on speakerphone and handset
Movable directional external gooseneck microphone
4.3" main colour display
2×3.5" side color displays for DSS keys
Up to 106 DSS keys (42 tri-colored physical keys)
Dual Gigabit ports, integrated PoE
Built-in Bluetooth
Wi-Fi connectivity (via Wi-Fi dongle)
Support EHS headset
Video Codec H.264 support for receiving video calls
Stand with 2 adjustable angles of 40 and 50 degrees
Compatible with major platforms: 3CX, Asterisk, Broadsoft, Metaswitch, Elastix, Avaya etc.

Good sound pickup effect

Professional directional gooseneck microphone presents sound with good reproduction, high definition and low noise.

Remote control of Fanvil SIP video door phone and barrier gate

The X210i enables integration with Fanvil SIP video door phone, so that you can have a two-way talk with visitors and unlock the door from your X210i IP phone.
When the license plate recognition fails to open the barrier gate, the driver can contact the management center through the intercom terminal installed at the entrance and exit of the parking lot. The management center remotely helps the driver to open the barrier gate through X210i.

Fanvil X210i Technical Specification

Generic

20 SIP Lines
HD Voice
Support receiving Video call
POE Enabled
3 LCDs (Main + DSS)
Handset / Hands-free / Headset mode
Intelligent DSS Keys
Optional External Power Supply

Phone Features

Local Phonebook (2000 entries)
Remote Phonebook (XML/LDAP, 2000 entries)
Call logs (In/out/missed, 1000 entries)
Black/White List Call Filtering
Screen saver
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronization
Built-in Bluetooth 2.1: Support Bluetooth headset
Support Wi-Fi Dongle
Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
Support Recording (Through Flash Drive or Server Recording )
Action URL / Active URI
uaCSTA

Call Features

Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (On server)
3-way Conference
Hot Line
Hot desking

Video

Video codec: H.264
Video call resolution: QCIF / CIF / VGA

Audio

HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
HAC handset
Wideband ADC/DAC 16KHz Sampling
Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
Wideband Codec: G.722, AMR-WB, Opus
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation
(BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
IP Mode:IPv4/IPv6/IPv4&IPv6
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

Protocols

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
LLDP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Deployment & Maintenance

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Web Management Portal
Web-based Packet Dump
Configuration Export/Import
Phonebook Import/Export
Firmware Upgrade
Syslog

Physical Specifications

Main LCD x1: 4.3 inch (480x272) colour-screen LCD
DSS Key-mapping LCD x2: 3.5 inch (320x480) colour-screen LCD
Keypad: 77 keys, including
- 4 Soft-keys
- 6 Function keys (Hold, Call forward, Phonebook, MWI, Headset, Redial)
- 4 Navigation keys
- 1 OK key
- 1 Return key
- 12 Standard Phone Digits keys
- 3 Volume Control keys, Up/Down/Mute(Microphone)
- 1 Hands-free key
- 42 DSS Keys with tri-color LED
- 3 Page-Switch (PS) key
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
Gooseneck Microphone x1
- Directional microphone
- Frequency response: 20Hz~20KHz
- SNR: ı60 dB.1kHz at 1 Pa
Back Rack x1
Gooseneck MIC Port x1: Gooseneck Microphone x1
RJ9 Port x2: Handset x1, Headset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
DC Power Input: 5V/2A
Power Consumption (PoE): 2.6~ 9W
Power Consumption (Adapter): 2.4~8W
Working Temperature: 0~45ć
Working Humidity: 10~95%
Installation: Desktop Stand
Colour: Dark grey
