Fanvil X301W Basic Wireless IP Phone

Fanvil X301W - Technical Specifications

Generic

• 2 SIP Lines

• HD Voice

• PoE Enabled

• Built-in 2.4GHz & 5GHz Wi-Fi

• Dot-matrix display screen

• Handset / Hands-free / Headset mode

• Desktop Stand / Wall mountable (optional)

• Optional External Power Supply

Phone Functions

• Local Phonebook (1000 entries)
  Remote Phonebook (XML/LDAP, 1000 entries)

• Call logs (In/Out/Missed, 600 entries)

• Blocked List/Allowed List

• Voice Message Waiting Indication (VMWI)

• Programmable DSS/Soft keys

• Network Time Synchronization

• Built-in Wi-Fi
  2.4GHz, 802.11 b/g/n
  5GHz, 802.11 a/n/ac

• Support Plantronics wireless headset (Through PlantronicsAPD-80 EHS Cable)

• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)

• Support Recording (Through Server)

• Action URL / Active URI

• uaCSTA

Call Functions

• Call out / Answer / Reject

• Mute / Unmute (Microphone)

• Call Hold / Resume

• Call Waiting

• Intercom

• Caller ID Display

• Speed Dial

• Anonymous Call (Hide Caller ID)

• Call Forward(Always/Busy/No Answer)

• Call Transfer (Attended/Unattended)

• Call Parking/Pick-up (Depending on server)

• Redial

• Do-Not-Disturb

• Auto-Answering

• Voice Message (with server)

• 6-way Conference

• Hot Line

• Hot desking

Audio

• HD Voice Microphone/Speaker

• Wideband ADC/DAC 16KHz Sampling

• Narrowband Codec: G.711a/u, G.723.1,G.726,G.729A/B, iLBC

• Wideband Codec: G.722, Opus

Network

• Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass

• IP Mode: IPv4/IPv6

• IP Configuration: Static IP / DHCP / PPPoE

• Wi-Fi Encryption:WPA /WPA2-PSK /802.X EAP

• Network Access Control: 802.1x

• VPN: L2TP / OpenVPN

• VLAN

• LLDP

• QoS

• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS

• RTP/RTCP/SRTP

• STUN

• DHCP

• IPV6

• LLDP

• PPPoE

• 802.1x

• L2TP

• OpenVPN

• SNTP

• FTP/TFTP

• HTTP/HTTPS

• TR-069

• AES128 & AES256

Deployment & Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
  PNP/TR-069

• Web Management Portal

• Web-based Packet Dump

• Configuration Export / Import

• Phonebook Import/Export

• Firmware Upgrade

• Syslog

Physical Specifications

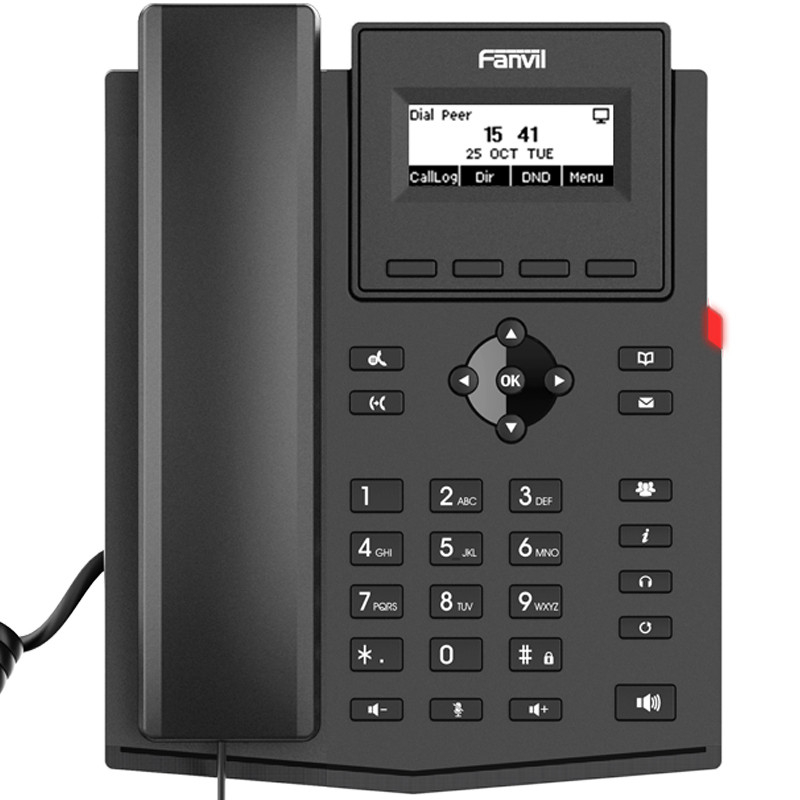

• LCD: 128x48 pixel graphical LCD with backlight

• Keypad: 33 keys, including

• 4 Soft-keys

• 9 Function keys (Hold/Transfer/Voicemessage/Conference/Phonebook/MWI/Headset/Redial/Hands-free)

• 4 Navigation keys

• 1 OK key

• 12 Standard Phone Digits keys

• 3 Volume Control keys (Up/Down/Mute (Microphone))

• Handset (RJ9) x1

• Standard RJ9 Handset Wire x1

• 1.5M CAT.5E Ethernet Cable x1

• Desktop Stand x1

• Status Indicator Light x1 (Red)

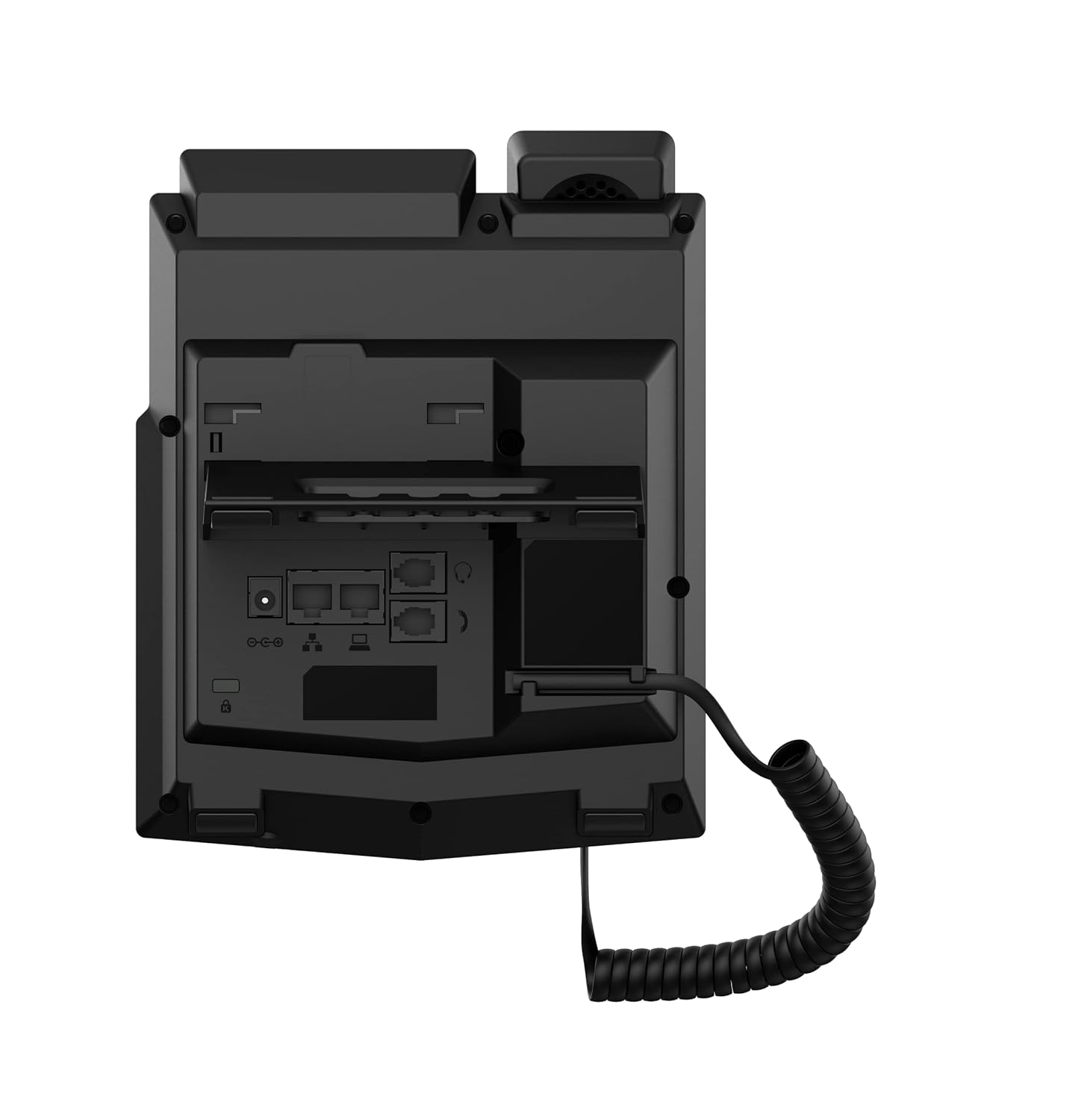

• RJ9 Port x2: Handset x1, Headset x1

• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)

• Security Slot x1

• DC Power Input: 5V/0.6A

• Power Consumption(Adapter): 0.8~1.29W

• Power Consumption(PoE): 1.25~1.86W

• Working Temperature: 0~45℃

• Working Humidity: 10~95%

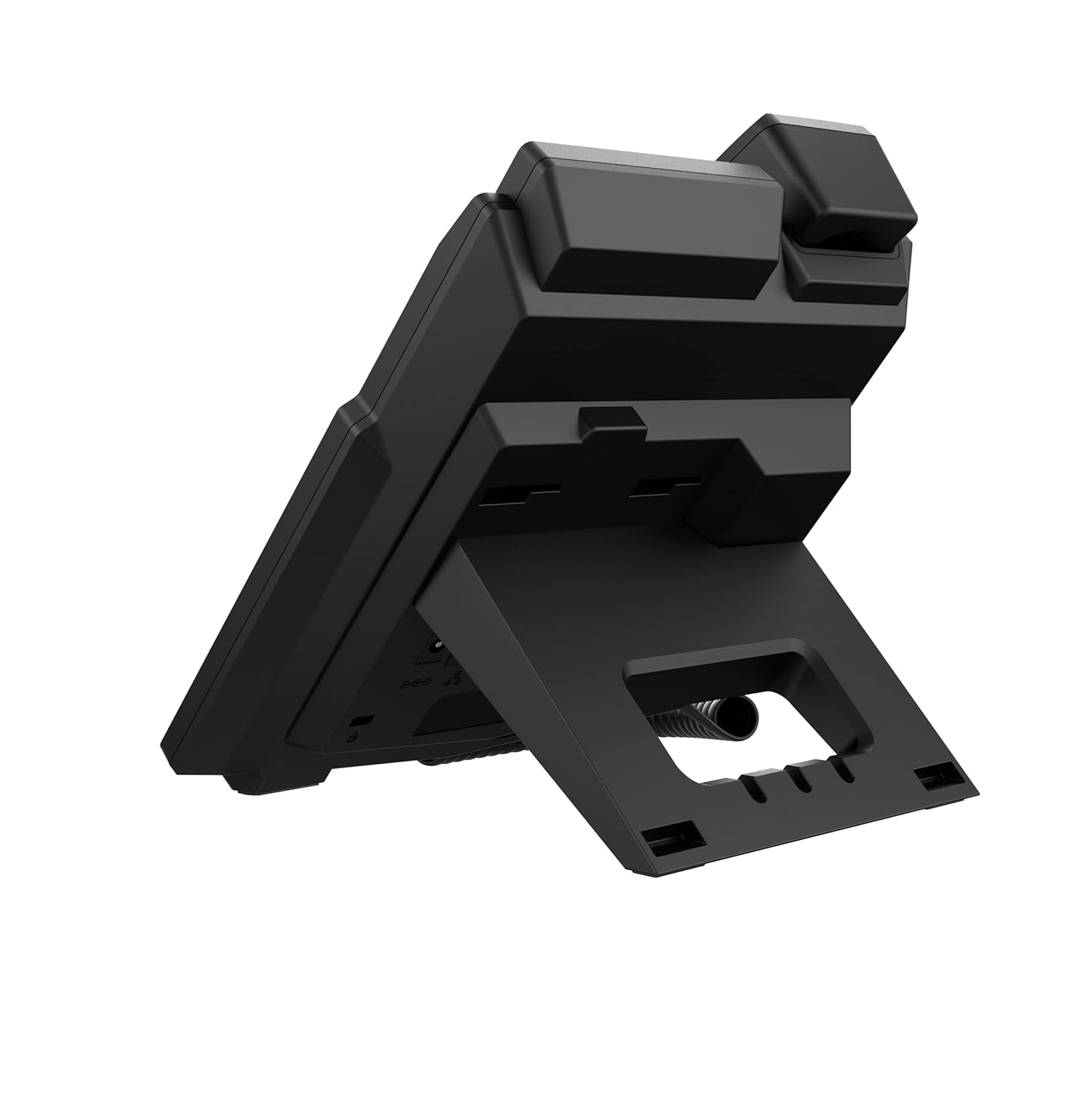

• Installation:
  Desktop Stand
  Wall mountable (optional )

• Color: Black

• N.W/CTN: 9.05kg(X301), 8.55kg(X301P)

• G.W/CTN: 9.76kg(X301), 9.26kg(X301P)
