X4G
Fanvil
100% Original Brand
1 Year
| Color: | |
|---|---|
| Packing Size: | |
| Quantity: | |

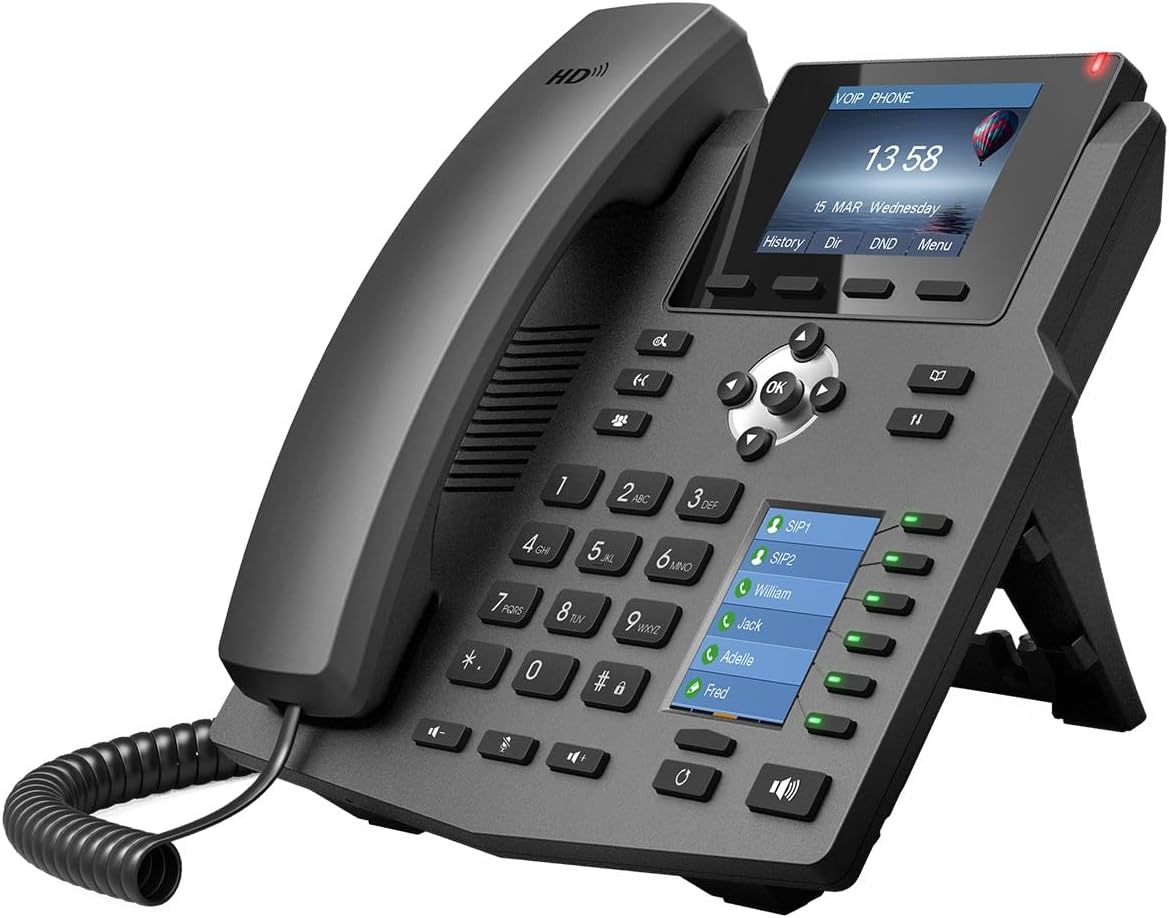

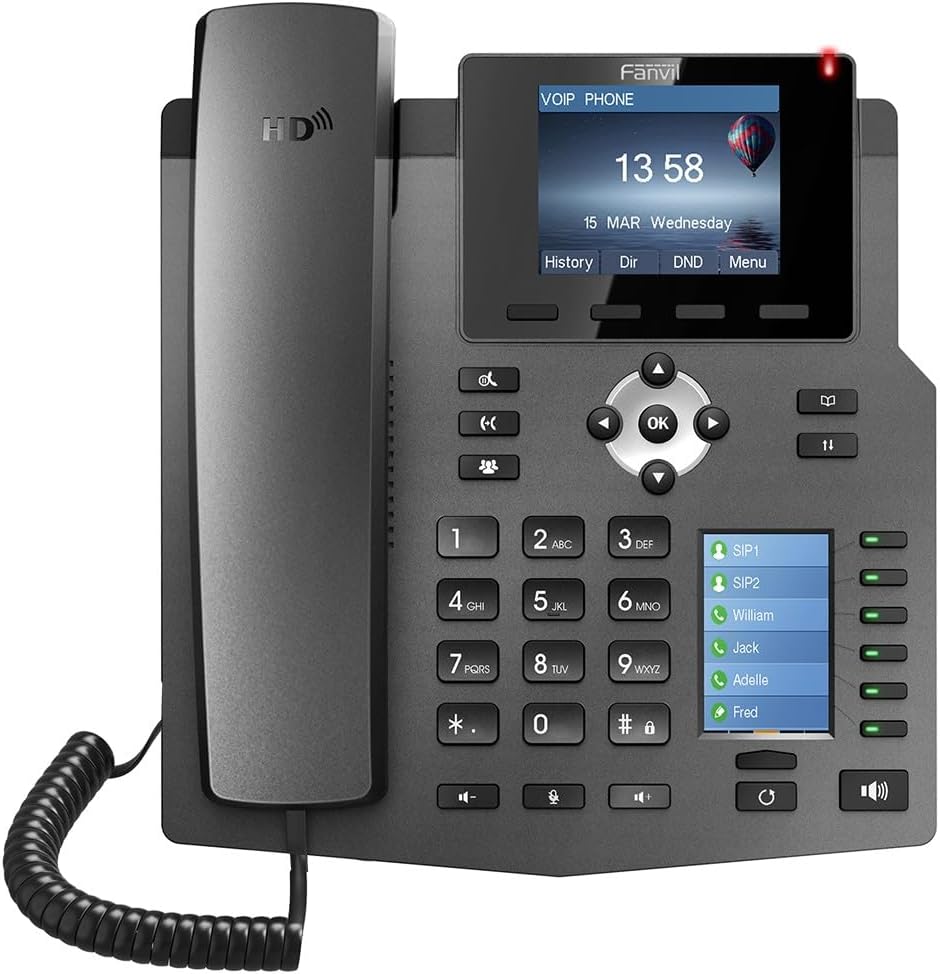

The Fanvil X4G IP Phone is a high-end enterprise desktop phone with an intelligent DSS key-mapping LCD, which increases the users’ productivity at an affordable price.
Fanvil X4G Key Features
DSS key-mapping LCD colour screen – 6 DSS keys
2.8 inch (320 x 240) LCD colour screen
Fast / Gigabit Ethernet with PoE enabled
Elegant design with environmentally friendly packaging
High interoperability – compatible with major platforms: 3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.
Supports EHS Wireless Headsets
Fanvil's X4G IP phone supports EHS wireless headsets, making a professional enterprise VoIP phone.
Two LCD Screens
The X4G boasts 2 colour LCD screens, with 6 DSS keys corresponding to the LCD display.
High Functionality
Thanks to its versatility, the X4G fulfils all business needs - improving overall business efficiency.
4 SIP Lines
HD Voice
PoE Enabled
2 LCD Colour Screens (Main + DSS)
Handset(HS) / Hands-free (HF) / Headphone(HP) mode
(EHS support for Plantronics headsets)
Intelligent DSS Keys
Desktop / Wall-mount installation
Optional External Power Supply
Economical and Environmental friendly package
Industrial Standard Certifications: CE/FCC
Call out / answer / reject
Mute / Unmute (microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (depending on server)
Redial/Auto-Redial
Do-Not-Disturb (per line / per phone)
Auto-Answering (per line)
Voice Message (on server)
Local 3-way Conference
Hot Line
Hot-Desking
Phonebook (500 entries)
Remote Phonebook (XML/LDAP)
Call log (100 entries, in/out/missed)
Black/White List Call Filtering
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronisation
Action URL / Active URI
HD Voice Microphone/Speaker (Handset/Hands-free, 0 ſġ7KHz
Frequency Response)
Wideband ADC/DAC 16KHz Sampling
Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
Wideband CODEC: G.722
Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode,
96ms tail-length
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /
Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
Physical: 10/100Mbps(X4), 10/100/1000Mbps (X4G) Ethernet, dual
bridged port for PC bypass
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP (Basic Unencrypted) / OpenVPN
VLAN
QoS
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
PPPoE
802.1x
L2TP (Basic Unencrypted)
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR069
354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/2976
/3261/3262/3263/3264/3265/3268/3311/3489/3711/4346/4566/5630/
5865
Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PNP/TR069
Web Management Portal
Web-based Packet Dump
Configuration Export / Import
Phonebook Import/Export
Firmware Upgrade
Syslog
Main LCD x1: 2.8 inch (320x240) LCD colour screen
DSS key-mapping LCD x1: LCD colour screen
Keypad: 38 keys, including:
- 4 Soft-keys
- 6 Function keys
- 5 Navigation keys
- 12 Standard Phone Digits keys
- 3 Volume Control keys, Up/Down/Mute(Microphone)
- 1 Hands-free key
- 6 DSS Keys with tri-colour LED
- 1 Page-Jump/Configuration (PJC) key
HD Hands-free Speaker (0 ſġ7KHz) x1
HD Hands-free Microphone (0 ſġ7KHz) x1
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
ͻRJ9 Phone Jacket x2: Handset x1, Headphone x1
RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 2 Enabled),
PC x1 (Bridged to Network)
Main Chipset: Broadcom
DC Power Input: 5V/1A
Power Consumption: (X4) Idle – ſ 1.3W, Peak – ſ4.3W
(X4G) Idle – ſ 1.7W, Peak – ſ5.7W
Working Temperature: 0 ~ 40ɗ
Working Humidity: 10 ſ 65%

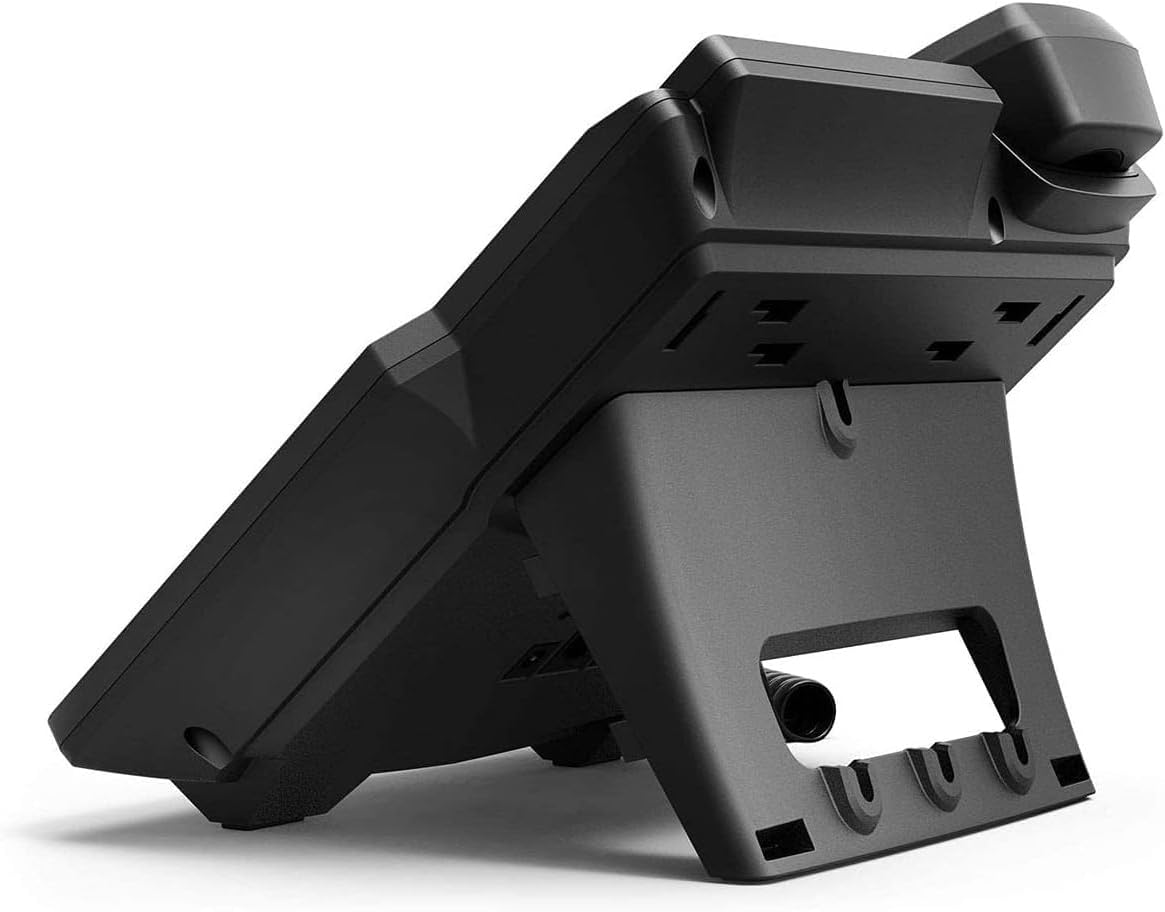

Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
Colour: Black
