X6U
Fanvil
100% Original Brand
1 Year
| Color: | |
|---|---|
| Size: | |
| Quantity: | |

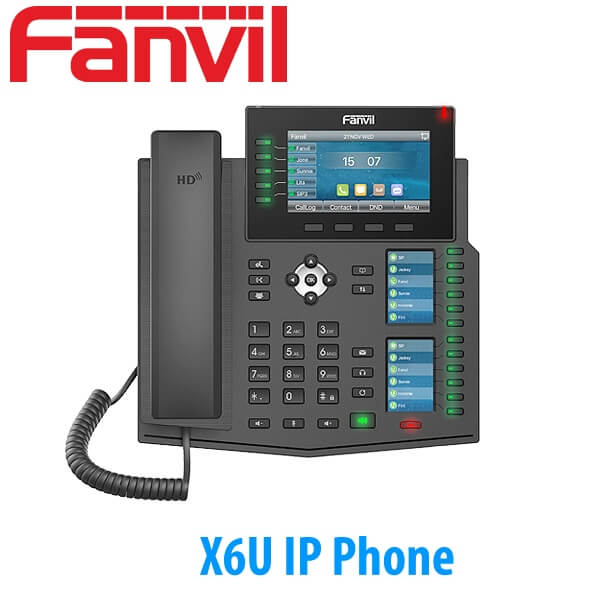

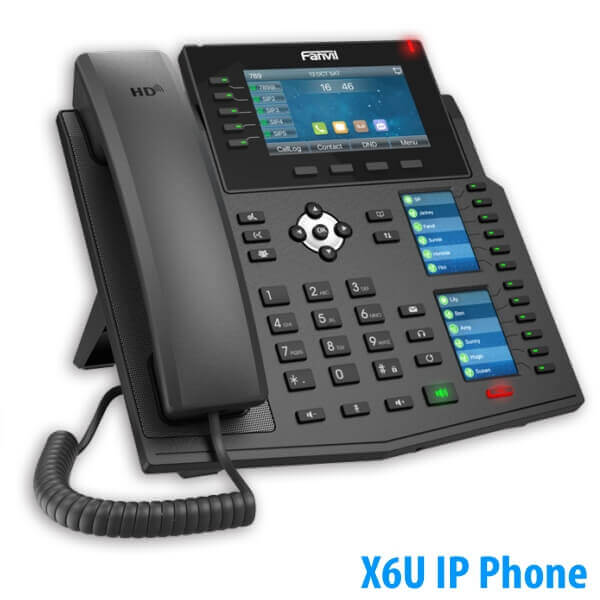

The Fanvil X6U V2 is an enterprise-level, three screen IP Phone. Featuring three colour displays, newly added line keys with LED light and built-in Bluetooth, Fanvil X6U provides direct access to instructions, offering greater flexibility and productivity to exceed the different demands of businesses. Harman speaker and wideband codec of G.722 and Opus in this device deliver you an immersive HD audio experience in both high band and low band. With all the necessary VoIP features and other extended features like EHS headset and WiFi dongle, the X6U provides a high-quality and convenient experience for users at an affordable price.
Fanvil X6U Key Features
20 SIP lines, 3-way conference, SIP hotspot
5 Line keys on the main display
1x4.3" main colour display, 2x2.4" side colour displays for DSS keys
HD audio on speakerphone and handset
Built-in Bluetooth for connecting Bluetooth headset
Support WiFi connectivity (Via WiFi dongle)
Support EHS wireless headset
Up to 60 DSS keys (12 two-coloured physical keys)
Dual Gigabit ports, integrated PoE
Stand with 2 adjustable angles of 45 and 50 degrees
Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
High-definition Audio High-efficiency Work
Given to superb Harman speaker and wideband codec G.722 and Opus, HD audio in Fanvil X6U enables you to enjoy a crystal-clear and high-efficient group communication.
Elegant Outlook Easy Operation
Housing a more intuitive design with a 4.3-inch 480x272 color LCD, two 2.4-inch color side LCDs and 5 line keys with LED light, Fanvil X6U allows a more user-friendly feature customization.
Greater Interoperability and Collaboration
Matched with accessories, like EHS headset via EHS Cable, WiFi via WiFi dongle and built-in Bluetooth, Fanvil X6U is designed to encourage your flexibility on work.
20 SIP lines
HD Voice
Support receiving Video Call
PoE Enabled
3 LCDs (Main + DSS)
Handset / Hands-free / Headphone mode
Intelligent DSS Keys
Desktop Stand / Wall-mounted (need an additional wall hanging part)
Optional External Power Supply
Local Phonebook (2000 entries)
Remote Phonebook (XML/LDAP, 2000 entries)
Call logs (In/Out/Missed, 1000 entries)
Black/White List Call Filter
Screen saver
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronisation
Built-in Bluetooth 2.1: Support Bluetooth headset
Support WiFi Dongle
Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
Support Recording (Through Flash Drive or Server)
Action URL/Active URI
uaCSTA
Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forward (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (With server)
3-way Conference
Hot Line
Hot desking
Video codec: H.264
Video call resolution: QCIF / CIF / VGA
HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)
HAC handset
Wideband ADC/DAC 16KHz Sampling
Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
Wideband Codec: G.722, AMR-WB, Opus
Full-Duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD)/Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)/Noise Reduction (NR)
Packet loss concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-band - DTMF-Relay (RFC2833)/SIP INFO
Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
IP Mode: IPv4/IPv6/IPv4&IPv6
IP Configuration: Static IP / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
LLDP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
Web Management Portal
Web-based Packet Dump
Configuration Export / Import
Phonebook Import/Export
Firmware Upgrade
Syslog
Main LCD x1: 4.3 inch (480x272) LCD colour screen
DSS Key-mapping LCD x2: 2.4 inch (240x320) LCD colour screen
Keypad: 51 keys, including
- 5 Line Keys (with LED Indicator Light)
- 4 Soft-keys
- 8 function keys (hold, call forward, conference, phonebook, call log, MWI, headset, redial)
- 4 Navigation keys
- 12 Standard Phone Digits keys
- 3 Volume Control keys (Up/Down/Mute (Microphone))
- 12 DSS Keys (With LED Indicator Light)
- 1 Page-Switch (PS) key (With LED Indicator Light)
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
Back Rack x1
Status Indicator Light x1 (Red)

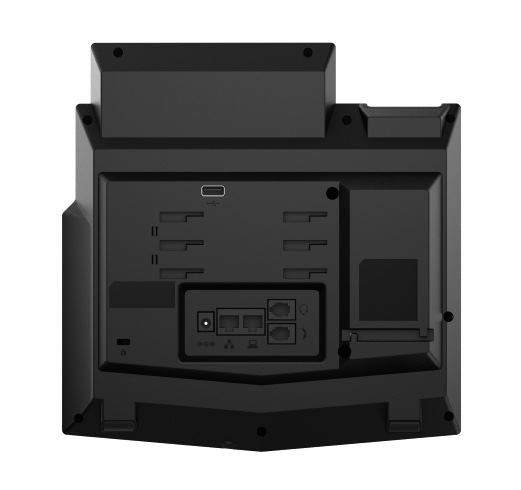

RJ9 Port x2: Handset x1, Headset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
USB2.0 Port x1 (Connect with USB dongle or flash driver)
Safety keyhole x1
DC Power Input: 5V/2A
Power Consumption (PoE): 1.7W~10.46W
Power Consumption (Adapter): 1.38W~9.13W
Working Temperature: 0 ~ 45℃
Working Humidity: 10 ~ 95%
Installation:
- Desktop Stand
- Wall-Mounted (need an additional wall hanging part)
Colour: Black
