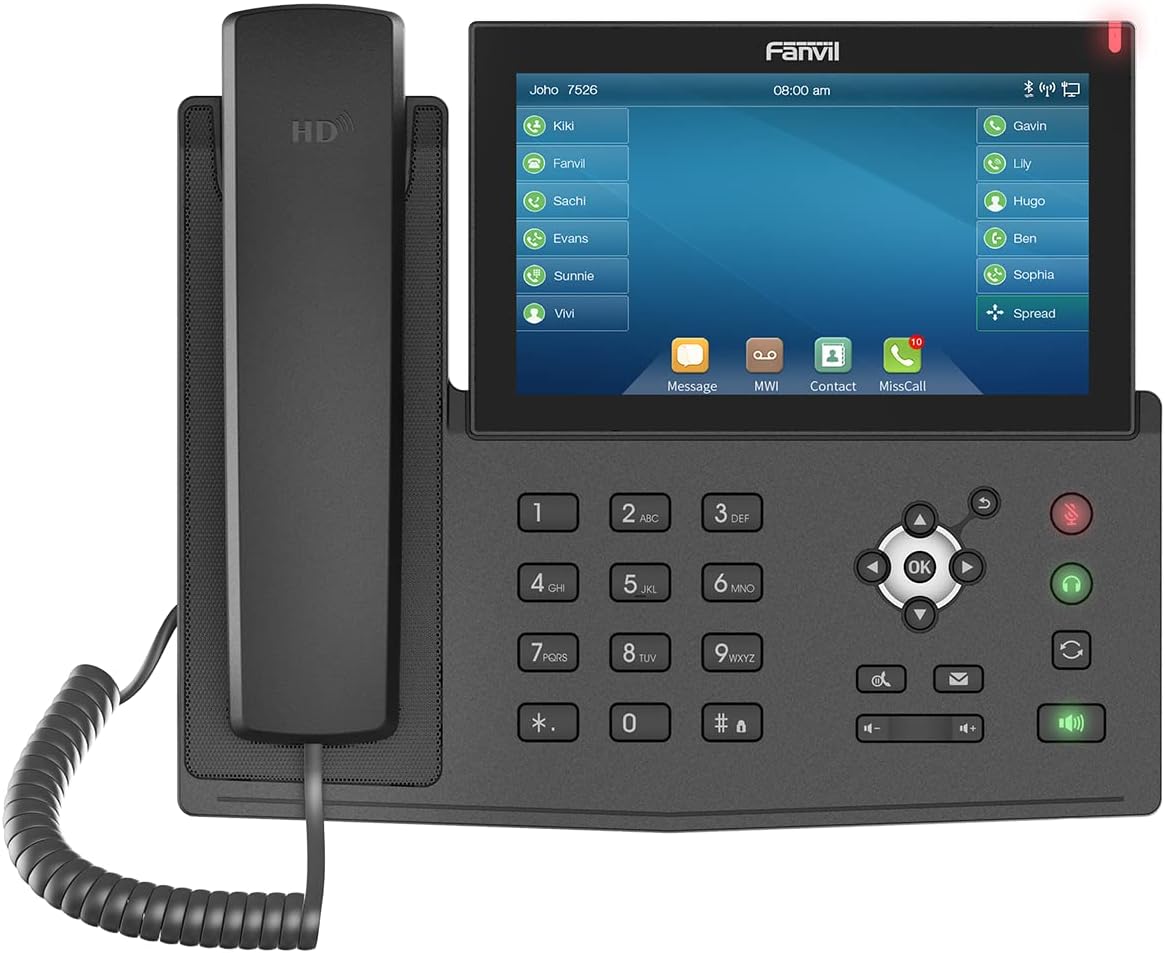

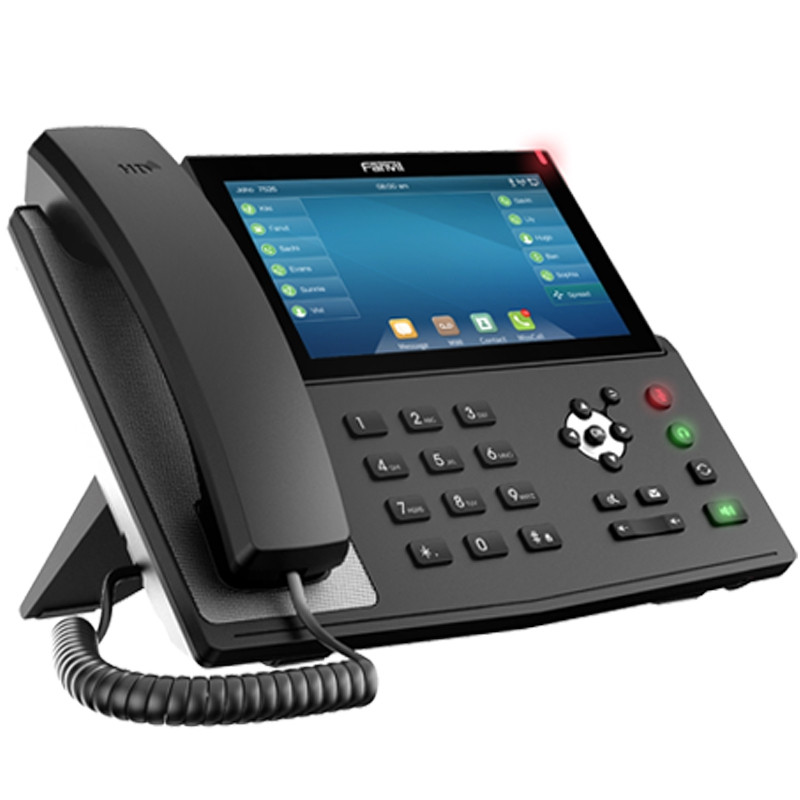

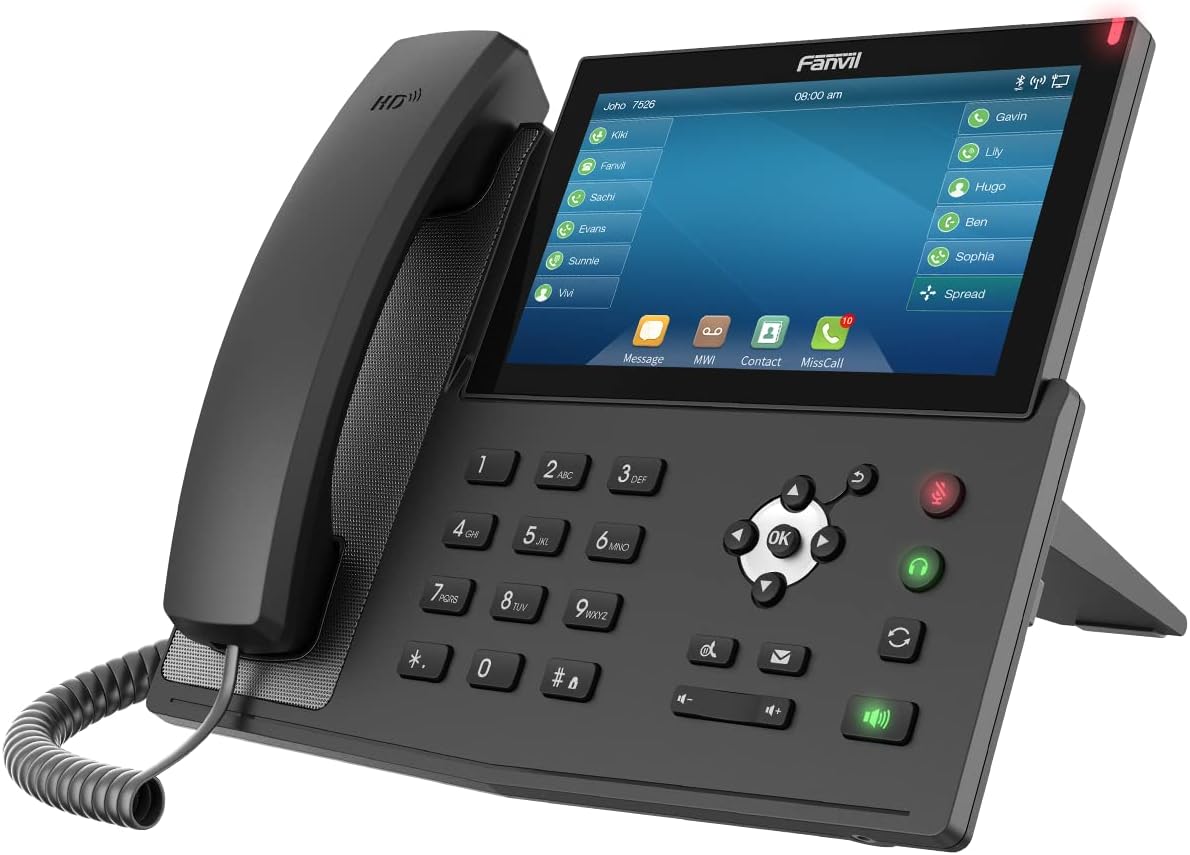

Fanvil X7A Android Phone

Fanvil X7A- Technical Specifications

Generic

• 20 SIP Lines

• HD Voice

• Support receiving Video call

• PoE Enabled

• 7-inch (1024x600) color touch screen

• Handset / Hands-free / Headset mode

• Intelligent DSS Keys(Virtual buttons)

• Optional External Power SupplyDisplay

Phone Features

• Android 9.0 OS

• Local Phonebook (2000 entries)

• Remote Phonebook (XML/LDAP, 2000 entries)

• Call logs (In/out/missed, 1000 entries)

• Black/White List Call Filter

• Screen saver

• Voice Message Waiting Indication (VMWI)

• Programmable DSS/Soft keys

• Network Time Synchronization

• Built-in Bluetooth 4.2: Support Bluetooth headset

• Built-in Wi-Fi 2.4GHz, 802.11 b/g/n

• 5GHz, 802.11 a/n/ac

• Support Recording

• Action URL / Active URI

• uaCSTA

Call Features

• Call out / Answer / Reject

• Mute / Unmute (Microphone)

• Call Hold / Resume

• Call Waiting

• Intercom

• Caller ID Display

• Speed Dial

• Anonymous Call (Hide Caller ID)

• Call Forwarding (Always/Busy/No Answer)

• Call Transfer (Attended/Unattended)

• Call Parking/Pick-up (Depending on server)

• Redial Do-Not-Disturb

• Auto-Answering

• Voice Message (On server)

• 3-way Conference

• Hot Line

• Hot desking

Video

• Wideband codec: G.722

• Narrowband codec: G.711(A/μ), G.723.1,

• G.729AB, iLBC, AMR

• DTMF: In-band, Out-of-band(RFC 2833) and

• SIP INFO

• Full-duplex hands-free speaker phone with

• AEC (Max filter length – 128ms)

• Voice Activity Detection (VAD)

• Comfort Noise Generation (CNG)

• Adaptive jitter buffer

• Packet loss concealment (PLC)

• Audio format: WAV/MP3/OGG

• Frame rate selection: 5~30fps

• Video from remote site can be displayed in full screen

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069

• Web Management Portal

• Supports the third party communication APP

• Supports Web, Telnet

• Supports encrypted configuration files download with AES

• Supports Web upgrade

• Supports factory reset data

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)

• HAC handset

• Wideband ADC/DAC 16KHz Sampling

• Narrowband Codec: G.711a/u, G.729AB, iLBC

• Wideband Codec: G.722, Opus

• Full-duplex Acoustic Echo Canceller (AEC)

• Noise Reduction (NR)

• Packet Loss Concealment (PLC)

• Dynamic Adaptive Jitter Buffer

• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Network

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass

• IP Mode:IPv4

• IP Configuration: Static / DHCP

• Network Access Control: 802.1x

• VPN: OpenVPN (Requires third-party app support)

• VLAN

• LLDP

• CDP

• QoS

Physical Features

• LCD x1:7 inch (1024x600) color-screen LCD

• Keypad: 26 keys, including

• 5 Function keys (Hold, MWI,Mute,Headset, Redial)

• 4 Navigation keys

• 1 OK key

• 1 Return key

• 12 Standard Phone Digits keys

• 2 Volume Control keys, Up/Down

• 1 Hands-free key

• HD Handset (RJ9) x1

• Standard RJ9 Handset Wire x1

• 1.5M CAT5 Ethernet Cable x1

• Back Rack x1

• RJ9 Port x2: Handset x1, Headset x1

• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)

• USB2.0 Port x1: Standard A, Connect with Flash Driver

• Safety keyhole x1

• Power: 5V/2A or PoE

• Power Consumption (PoE): 1.596~11.86W

• Power Consumption (Adapter): 0.907~9.38W

• Working Temperature: 0~45℃

• Working Humidity: 10~95%

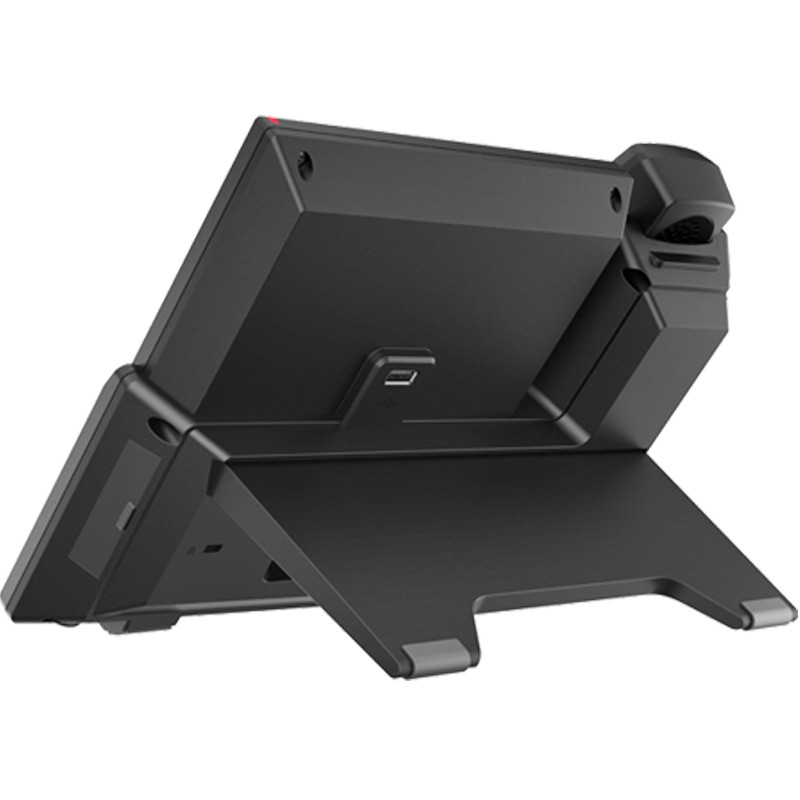

• Installation: Desktop Stand

• Color: Black

• Device Dimensions

• Desktop Stand (Angles 1): 268x185x189mm



Protocols

• SIP2.0 over

• UDP/TCP/TLS

• RTP/RTCP/SRTP

• STUN

• DHCPCDP

• LLDP

• PPPoE

• 802.1x

• OpenVPN (Requires third-party app support)

• SNTP

• FTP/TFTP

• HTTP/HTTPS

• TR-069
