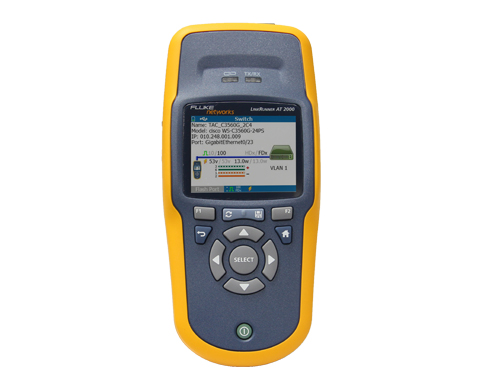

LRAT-2000
FLuke
New
1 Year
| Quantity: | |
|---|---|
Connectivity Verification: Validates and tests network connectivity over copper and fiber at speeds of 10M/100M/1G. Instantly checks link status, connection type, and signal strength.
Switch & VLAN Info: Displays VLAN details, as well as the model, slot, and port number of the nearest switch.
Cabling Testing: Tests both installed cabling and patch cords for faults.
TruePower PoE Testing: Draws actual power up to 25.5W (per the 802.3at standard) to quickly test and verify PoE performance.
Result Documentation: Saves up to 50 network connectivity test results, which can be downloaded to your PC.
Fast Boot & Long Battery Life: Boots up in 3 seconds and offers up to 6 hours of battery life.
Key features include: verifying signal and link integrity over copper and fiber at 10/100/1G speeds; industry-leading TruePower PoE testing and loading; 802.1x authentication; cabling testing; IPv4/IPv6 readiness; an intuitive user interface with a color display; detailed documentation of test results (with storage for 50 reports); cable location and identification; and access to nearest switch information.
PoE (copper only) classification
Link speed and duplex (actual and configured)
RX pairs and polarity
802.1x authentication

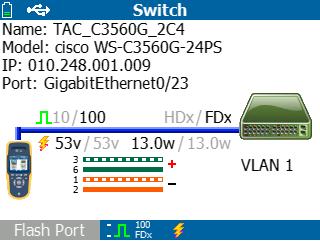

Switch name, port, VLAN, model, and IP address

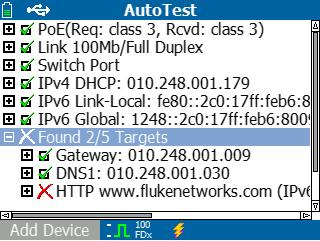

DHCP auto-negotiation with subnet and DHCP server address
IPv4 and IPv6 availability
Ping and TCP port connectivity (displays packet loss, minimum, maximum, and average latency)
Switch name and model
IP address
Port, slot, and VLAN
Duplex mode and speed (actual and configured)
Signal strength
Connection type (MDI or MDI/X)
PoE voltage and power (actual and test limit)
Graphical display of twisted-pair power
| Parameter | Details |
|---|---|
| Operating Temperature & Relative Humidity | Temperature: 32°F to 113°F (0°C to +45°C) Note: The battery will not supply power if the tester's internal temperature exceeds 113°F (45°C). |
| Operating Relative Humidity (% RH, Non-Condensing) | 90% (50°F to 95°F; 10°C to 35°C) 75% (95°F to 113°F; 35°C to 45°C) |
| Storage Temperature | -4°F to 140°F (-20°C to +60°C) |
| Shock & Vibration | Random vibration: 2 g, 5 Hz — 500 Hz (Class 2) Drop test: 1-meter drop |
| Safety | EN 61010-1 2nd Edition |
| Safety (LRAT-2000 Only) | EN/IEC 60825-1:2007, EN/IEC 60825-2:2004+A1:2007 (LRAT-2000 Only) |
| Altitude | Operating: 4,000 meters Storage: 12,000 meters |
| EMC (Electromagnetic Compatibility) | FCC Part 15 Class A, EN 61326-1 |
| Certifications & Compliance | Compliant with relevant EU Directives Compliant with relevant Australian Standards Listed by Canadian Standards Association (CSA) |
| Category | Details |
|---|---|
| Media Access (Copper) | RJ-45: 10BASE-T, 100BASE-TX, 1000BASE-T, and PoE (IEEE 802.3af, IEEE 802.3at); 100BASE-FX, 1000BASE-T |
| Media Access (Fiber) | SFP adapter port supports 100BASE-FX and 1000BASE-LX/SX/ZX (LRAT-2000 Only) |
| Cable Testing | Tests for: Pair length, open circuits, short circuits, split pairs, crossed pairs, straight-through wiring, and cable identification |
| Power over Ethernet (PoE) - Single-Ended Testing | Tests per user definition: - IEEE 802.3at Classes 0, 1, 2, 3, 4 (without LLDP negotiation), or Class 4 (with LLDP negotiation) Measured PSE PoE Parameters: - Powered pair in use - Received class - PSE type - No-load voltage (V) - Load voltage (V) (LRAT-2000 with TruePower?) - No-load power (W) (LRAT-1000) - Load power (W) (LRAT-2000 with TruePower?) |
| Audio Generator | IntelliTone Digital Audio: [500 KHz] Analog Audio: [400 Hz, 1 KHz] |
| Dimensions | 3.5 in x 7.8 in x 1.9 in (8.9 cm x 19.8 cm x 4.8 cm) |
| Weight | 18 oz (0.5 kg) |
| Battery | Removable, rechargeable lithium-ion battery pack (18.5 Wh) (included in special offers) |
| Battery Life | Typical operating time: 6 hours Typical charging time: 3 hours |
| External AC Adapter/Charger | AC input voltage: 90-264 V, input frequency: 48-62 Hz DC output: 15 V, 1.2 A |
| Display | 2.8-inch color LCD (320 x 240 pixels) |
| Keypad | 12-key plastic keypad |
| LED Indicators | 2 LEDs (Link LED, Receive/Transmit LED) |
| Host Interface | USB 5-pin mini-B |
| Parameter | Requirements |
|---|---|
| Supported Operating Systems | Windows? Vista, Windows? XP, Windows? 7 |
| Processor | Minimum: 400 MHz Pentium processor or equivalent Recommended: 1 GHz Pentium processor or equivalent |
| RAM | Minimum: 96 MB Recommended: 256 MB (Note: Original "256 GB" is corrected to "256 MB" as GB is unrealistic for RAM in this context) |
| Hard Disk Space | Up to 500 MB of available space may be required |
| Display | Recommended: 1024 x 768 resolution, high color (32-bit) |
