LSPRNTR-200
FLuke
New
1 Year
| Quantity: | |
|---|---|

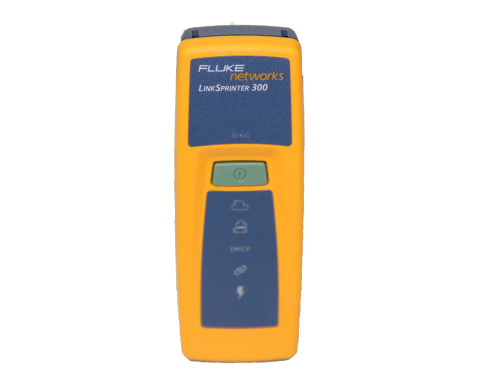

FLuke LSPRNTR-200
Small Size, Big Power
Don’t be fooled by the LinkSprinter’s compact size—it is packed with features and offers multiple customizable configuration options. You can configure each tester individually or set up and push configurations to all devices via the Link-Live™ cloud service Job Pro, enabling better workforce automation. The LinkSprinter runs a series of standard tests to ensure all team members, regardless of skill level, follow consistent workflows and documentation.
Power over Ethernet (PoE)
Check and confirm whether a specific port can power devices such as phones, surveillance cameras, or access points. The LinkSprinter can even operate on PoE without needing a battery.
Connect to a Switch
Perform switch tests to display switch name, model, slot, port, and VLAN information using CDP/LLDP/EDP. Identify available speed and duplex settings.
DHCP Connection
Verify that the DHCP server is operational and responsive. Request an IP address, obtain subnet information, and identify the default gateway and DNS server.
Gateway Connectivity
Validate gateway/router address and reachability by pinging the device.
Network Connectivity
Confirm cloud connectivity or network service reachability. Verify DNS server lookups and application port connections.
General
Dimensions: 4.36” x 1.6” x 1.28” (11.07 cm x 4.06 cm x 3.25 cm)
Weight with batteries:
Model 100: 0.250 lb (0.113 kg)
Model 200: 0.255 lb (0.116 kg)
Batteries: 2 AA Alkaline
Environmental
Operating Temperature and Relative Humidity: 32°F to 122°F (0°C to 50°C), Relative Humidity 5% to 90% Non-condensing
Storage Temperature: -4°F to 104°F (-20°C to 60°C)
Shock and Vibration: Random 2g, 5Hz – 500 Hz (class 2), 1 m drop
Safety: CAN/CSA-C22.2 No. 61010-1-12, UL Std. No. 61010-1 (3rd Edition), IEC61010-1:2010, Pollution Degree 2
Altitude: Operating: 13,123 ft. (4,000 m); Storage: 39,370 ft. (12,000 m)
EMC: EN 61326-1:2006
Certifications and Compliance:
Conforms to relevant EU standards
Conforms to relevant Australian standards
Certified by the Canadian Standards Association
Conforms to relevant FCC standard
Wireless (Model 200 only)
Specifications Compliance Standard: IEEE 802.11b/g
Frequency Channels: 802.11 Channels 1 through 11 (default is 11)
Operating Frequency: 2.412 ~ 2.484 GHz, ISM Band
Regulatory Scope: EN 301 489-1/17
Browsers: Internet Explorer 9.0, Firefox 3.6, Chrome 5.0, Safari 5.1 (minimum revision)
Quick Q&A for Common Tasks
Move, Add, Change (MAC)
Verify the correctness of connections, including IP subnet and VLAN, ensuring readiness before device arrival.
PoE Verification
Ensure proper switch port configuration and cabling before installing cameras, phones, or wireless access points.
IT Helpdesk Support
Is the issue originating from the computer or the network? If it’s the network, pinpoint the location and submit the problem with data-backed evidence.
Gateway Connectivity
Validate gateway/router address and reachability by pinging the device.
Remote Site Network Connectivity Verification
Allow on-site personnel, even office assistants, to run tests while the NOC reviews detailed results on the Link-Live™ cloud service dashboard.
