Fluke FLUKE LinkIQ Intelligent Network Tester LIQ-100 Product Highlights：
Trusted Cable Testing. The Network Testing You Need.
Measures up to 10 Gigabit network capacity through frequency-based measurements
Troubleshoots active networks by providing connected switch information (switch name, port number, and VLAN information)
Installs and troubleshoots PoE devices through switch negotiation and PoE load testing
Graphical wiring diagrams and length testing to identify common faults during cable installation
Documents work with LinkWare™ PC reporting
Supports all major industrial Ethernet protocols (EtherNet/IP, PROFINET, EtherCAT, etc.)
Industrial Ethernet Kit supports industrial connectors (M8D, M12D, M12X)
Fluke FLUKE LinkIQ Intelligent Network Tester LIQ-100 Features：
Trusted Cable Testing
LinkIQ measures lengths up to 1000 ft (305 m) and provides the distance to fault locations such as open circuits, short circuits, and unterminated cables. The remote ID enables complete cable pair wiring diagrams, helping to identify miswires and split pairs. The primary cable testing feature of LinkIQ is cable performance testing, which determines compliance with bandwidth cabling from 10BASE to 10GBASE (10 Mb/s to 10 Gb/s). It performs these tests through frequency-based measurements. Using IEEE standard-based measurements ensures that the tested link meets performance requirements, whereas transmission testers only prove that specific test equipment can communicate over the link.
Operators can set performance requirements from 10 Mb/s to 10 Gb/s and simply get a pass/fail indication.
Modern Design and Interface

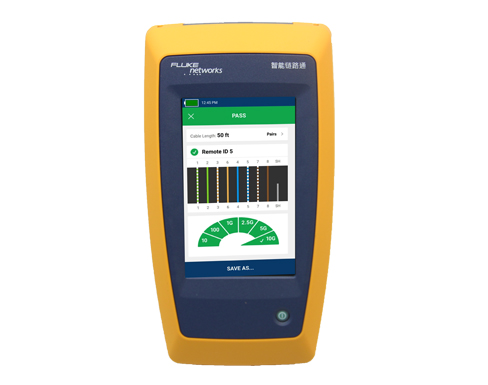

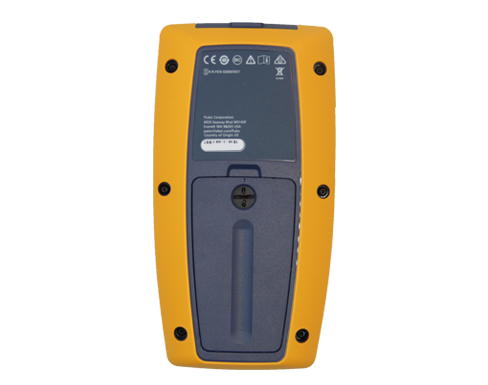

Like today’s smartphones, LinkIQ features a gesture-based touchscreen that covers almost the entire surface of the device. This allows for easy display of extensive information and provides clear and simple controls such as sliders and a full keyboard. Although LinkIQ can perform a variety of tests, the user interface is simplified with a single test function. The results displayed depend entirely on what is connected to the device’s single RJ-45 port. A single USB-C port connects to computers for future software updates, reporting, and charging. Like other Fluke Networks products, LinkIQ is designed and tested in our environmental lab to ensure durability, including vibration, temperature, humidity, electrostatic discharge, and drop tests.

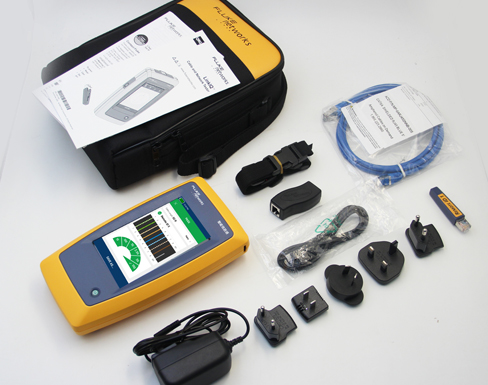

Additional Features
● Generates Analog or Digital tones compatible with the IntelliTone™ Probe or Pro3000™ to assist in locating cables in walls or telecommunications rooms.
● Makes the port lights blink on switches to help identify connected switch ports.
● Compatible with MicroScanner™ PoE Remote Service Set Identifier for Ethernet outlet identification.
● Touch-sensitive gesture display.
● Rechargeable lithium-ion battery.
● Easy functional and network testing upgrades via USB-C using LinkWare™ PC.
● Charges via a standard USB-C port.
| Feature | Description |
| Languages supported in UI | English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese |
| Weight | 1 lbs 6 oz (624g) |
| Battery | Type: Lithium-ion, 3.6 V, 6400 mAh Life: 8 hours typical Charge time: 4.5 hours Charging temperature range: 0 °C to +40 °C |
| Power Adapter | Input: 100 to 240 VAC ±10%, 50/60Hz Output: 15 VDC, 2 A maximum Class II |
| Host Interface | USB type C |
| Display | 800 x 480 color capacitive multi-touch |
| Dimensions | 8.5 in x 4.5 in |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -10°C to +60°C |
| Operating Relative Humidity | 0 % to 90 %, 0°C to 35°C 0 % to 70 %, 35°C to 45°C |
| Operating Altitude | 4,000 m 3,200 m with ac adapter |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Drop | 1 m drop, 6 sides |
| Feature | Description |
| Diagnostic Protocols | Link Layer Discovery Protocol (LLDP) Cisco Discovery Protocol (CDP) Fast Link Pulses (FLP) Internet Control Messaging Protocol (ICMP), Dynamic Host Configuration Protocol (DHCP) |
| IP Address Setup | LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP |
| IP Ping Test Results | Four response time results for target, DNS Server(s), Gateway, plus average and number lost. |
| Power Over Ethernet Compatibility | Ethernet Alliance Certified to IEEE 802.3af/at/bt, Hardware negotiation with signature resistance, Software negotiation with LLDP/CDP |
| Power Over Ethernet Measurements | Loaded Voltage (V) Loaded Power (W) |
| Port Blink | Blink the light of the connected port |
| Feature | Description |

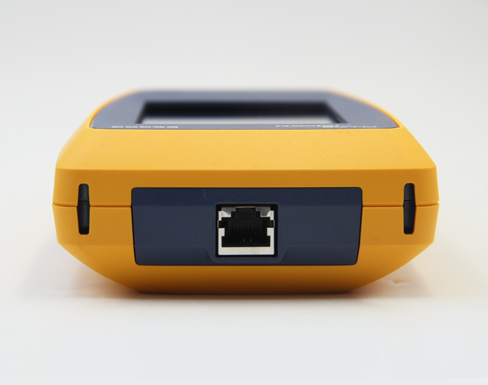

| Test Port | Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs. |
| Commissioning Autotests | 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. Test Speed: 6 seconds for lengths < 70 m |
| Cable Types | Balanced twisted-pair cabling Unshielded twisted-pair Screened twisted-pair 2-pair and/or 4-pair |
| Wire Map-Only Tests | Document wire map Length of each pair Diagnose split pairs User selectable T568A or T568B User selectable crossover settings (Straight through, Half-crossover, Full-crossover) Test speed: 1 second for lengths < 120 m |
| Length (Maximum) | 305 m (1000 ft) |
| Nominal Velocity of Propagation (NVP) | User settable |
| Tone Generator | Generates digital tones compatible with Fluke Networks IntelliTone probe. Generates analogy tones compatible with general analog probes. |
| Remote ID Locators | Use remote ID terminations to identify up to 7 unique ports or office outlets |
