Fortinet FG-40F
Fortinet
Within 3-5days in stock/ out of stock Item Backordered
Brand New Sealed
1 Year Warranty
| Quantity: | |
|---|---|
Table 1 shows the quick spec.
Product Code | FG-40F |
Hardware Accelerated GE RJ45 WAN / DMZ Ports | 1 |
Hardware Accelerated GE RJ45 Internal Ports | 3 |
Hardware Accelerated GE RJ45 FortiLink Ports (Default) | 1 |
IPS Throughput | 1 Gbps |
NGFW Throughput | 800 Mbps |
Threat Protection Throughput | 600 Mbps |
Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
Height x Width x Length (mm) | 38.5 x 216 x 160 |
Input Rating | 12Vdc, 3A |
Power Required | Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz |
Power Consumption (Average / Maximum) | 13.4 W / 15.4 W |

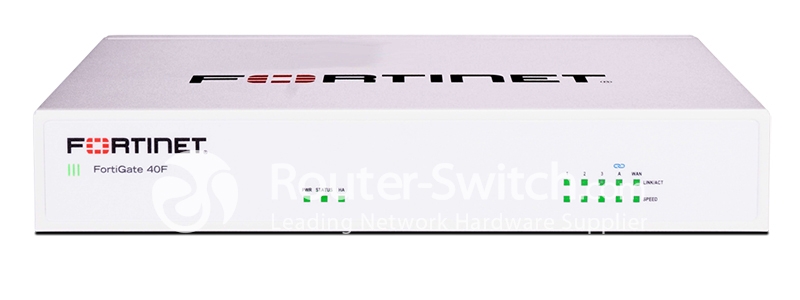

Figure 1 shows the front view of FG-40F
Table 2 shows the bundle models and licenses of FG-40F.
| Types | Model | Description |
| Basic Firewall | FG-40F | FortiGate 40F, 5 x GE RJ45 ports (including 4 x Internal Ports, 1 x WAN Ports) |
| 1 year bundle | FG-40F-BDL-950-12 | FG-40F Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-40F & FC-10-0040F-950-02-12) |
| 1 year License | FC-10-0040F-950-02-12 | 1 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-40F |
| 3 year bundle | FG-40F-BDL-950-36 | FG-40F Hardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-40F & FC-10-0040F-950-02-36) |
| 3 year License | FC-10-0040F-950-02-36 | 3 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-40F |
| 5 year bundle | FG-40F-BDL-950-60 | FG-40F Hardware plus 5 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-40F & FC-10-0040F-950-02-60) |
| 5 year License | FC-10-0040F-950-02-60 | 5 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-40F |
FG-40F Specification | |
Interfaces and Modules | |
Hardware Accelerated GE RJ45 WAN / DMZ Ports | 1 |
Hardware Accelerated GE RJ45 Internal Ports | 3 |
Hardware Accelerated GE RJ45 FortiLink Ports (Default) | 1 |
Hardware Accelerated GE RJ45 PoE/+ Ports | 0 |
Wireless Interface | 0 |
USB Ports | 1 |
Console Port (RJ45) | 1 |
Onboard Storage | 0 |
Included Transceivers | 0 |
System Performance — Enterprise Traffic Mix | |
IPS Throughput 2 | 1 Gbps |
NGFW Throughput 2, 4 | 800 Mbps |
Threat Protection Throughput 2, 5 | 600 Mbps |
System Performance and Capacity | |
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 5 / 5 / 5 Gbps |
Firewall Latency (64 byte, UDP) | 2.97 μs |
Firewall Throughput (Packet per Second) | 7.5 Mpps |
Concurrent Sessions (TCP) | 700,000 |
New Sessions/Second (TCP) | 35,000 |
Firewall Policies | 5,000 |
IPsec VPN Throughput (512 byte) 1 | 4.4 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 200 |
Client-to-Gateway IPsec VPN Tunnels | 250 |
SSL-VPN Throughput | 490 Mbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 310 Mbps |
SSL Inspection CPS (IPS, avg. HTTPS) 3 | 320 |
SSL-VPN Throughput 490 Mbps SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 55,000 |
Application Control Throughput (HTTP 64K) 2 | 990 Mbps |
CAPWAP Throughput (HTTP 64K) | 3.5 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiSwitches Supported | 8 |
Maximum Number of FortiAPs (Total / Tunnel) | 16 / 8 |
Maximum Number of FortiTokens | 500 |
Maximum Number of Registered FortiClients | 20,000 |
High Availability Configurations | Active, Active-Active, Passive, Clustering |
Dimensions and Power | |
Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
Height x Width x Length (mm) | 38.5 x 216 x 160 |
Weight | 2.2 lbs (1 kg) |
Form Factor | Desktop |
Input Rating | 12Vdc, 3A |
Power Required | Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz |
Power Consumption (Average / Maximum) | 13.4 W / 15.4 W |
Current (Maximum) | 100V AC / 0.2A, 240V AC / 0.1A |
Heat Dissipation | 52.55 BTU/h |
Operating Environment and Certifications | |
Operating Temperature | 32–104°F (0–40°C) |
Storage Temperature | -31–158°F (-35–70°C) |
Humidity | 10–90% non-condensing |
Noise Level | Fanless 0 dBA |
Operating Altitude | Up to 7,400 ft (2,250 m) |
Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
Radio Specifications | |
Multiple (MU) MIMO | 0 |
Maximum Wi-Fi Speeds | 0 |
Maximum Tx Power | 0 |
Antenna Gain | 0 |
Note: All performance values are “up to” and vary depending on system configuration. 1. IPsec VPN performance test uses AES256-SHA256. 2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled. 3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites. 4. NGFW performance is measured with Firewall, IPS and Application Control enabled. 5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled. | |
