FAP-221E-C
Fortinet
100% Original Brand
1 Year
| Color: | |
|---|---|
| Size: | |
| Quantity: | |
FortiAP access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or can be managed through the free FortiCloud provisioning and management portal.

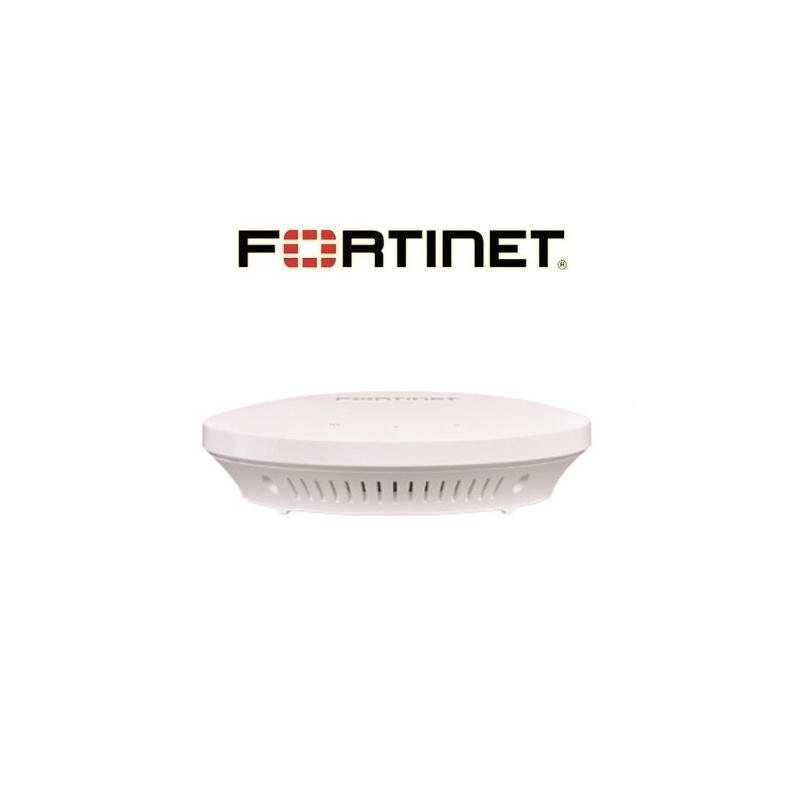

Figure 1 shows the appearance of FAP-221E.
Table 1 shows the Quick Specs.
Product Code | FAP-221E |
Length x Width x Height | 6.3 x 6.3 x 1.85 inches(160 x 160 x 47 mm) |
Hardware Type | Indoor AP |
Number of Radios | 2 + 1 BT/BLE |
Number of Antennas | 4 Internal + 1 Internal BT/BLE |
Antenna Type and Peak Gain | PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz |
Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725,5.725–5.850 |
Radio 1 Capabilities | 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM) |
Radio 2 Capabilities | 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) |
Maximum Data Rate | Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps |
Fortinet FortiAP Series provides these features:
• Unified Management
Unified management console simplifies operations, ensuring consistent and effective policy enforcement and compliance.
• Advanced Security Protection
Wireless LAN security done right, from the leader in network security. Integrated Firewall, IPS, Application Control, and Web Filtering protect the wireless LAN from the latest security threats.
• Built-in Wi-Fi Security
Protects the network from advanced wireless threats and satisfies PCI DSS compliance.
FortiAP 221E provide these highlights:
- 802.11ac Wave 2
- Dual Radio 2.4 and 5 GHz
- 4 Internal/External Antennas
- 2x2 MU-MIMO
- Up to 400 + 867 Mbps
Table 2 shows the comparison.
Product Code | FAP-221E | FAP-421E |
Length x Width x Height | 6.3 x 6.3 x 1.85 inches(160 x 160 x 47 mm) | 8.5 x 8.5 x 2.2 inches (215 x 215 x 56 mm) |
Hardware Type | Indoor AP | Indoor AP |
Number of Radios | 2 + 1 BT/BLE | 2 |
Number of Antennas | 4 Internal + 1 Internal BT/BLE | 8 Internal |
Radio 1 Capabilities | 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM) | 2.4 GHz b/g/n (4x4:4 stream) 20/40 MHz (256 QAM) |
Radio 2 Capabilities | 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) | 5 GHz a/n/ac (4x4:4 stream) 20/40/80 MHz (256 QAM) |
Maximum Data Rate | Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps | Radio 1: up to 800 Mbps Radio 2: up to 1,733 Mbps |
Bluetooth Low Energy (BT/BLE) Radio | Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power | \ |
FortiAP access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or can be managed through the free FortiCloud provisioning and management portal.
Figure 1 shows the appearance of FAP-221E.
Table 1 shows the Quick Specs.
Product Code | FAP-221E |
Length x Width x Height | 6.3 x 6.3 x 1.85 inches(160 x 160 x 47 mm) |
Hardware Type | Indoor AP |
Number of Radios | 2 + 1 BT/BLE |
Number of Antennas | 4 Internal + 1 Internal BT/BLE |
Antenna Type and Peak Gain | PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz |
Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725,5.725–5.850 |
Radio 1 Capabilities | 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM) |
Radio 2 Capabilities | 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) |
Maximum Data Rate | Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps |
Fortinet FortiAP Series provides these features:
• Unified Management
Unified management console simplifies operations, ensuring consistent and effective policy enforcement and compliance.
• Advanced Security Protection
Wireless LAN security done right, from the leader in network security. Integrated Firewall, IPS, Application Control, and Web Filtering protect the wireless LAN from the latest security threats.
• Built-in Wi-Fi Security
Protects the network from advanced wireless threats and satisfies PCI DSS compliance.
FortiAP 221E provide these highlights:
- 802.11ac Wave 2
- Dual Radio 2.4 and 5 GHz
- 4 Internal/External Antennas
- 2x2 MU-MIMO
- Up to 400 + 867 Mbps
Table 2 shows the comparison.
Product Code | FAP-221E | FAP-421E |
Length x Width x Height | 6.3 x 6.3 x 1.85 inches(160 x 160 x 47 mm) | 8.5 x 8.5 x 2.2 inches (215 x 215 x 56 mm) |
Hardware Type | Indoor AP | Indoor AP |
Number of Radios | 2 + 1 BT/BLE | 2 |
Number of Antennas | 4 Internal + 1 Internal BT/BLE | 8 Internal |
Radio 1 Capabilities | 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM) | 2.4 GHz b/g/n (4x4:4 stream) 20/40 MHz (256 QAM) |
Radio 2 Capabilities | 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM) | 5 GHz a/n/ac (4x4:4 stream) 20/40/80 MHz (256 QAM) |
Maximum Data Rate | Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps | Radio 1: up to 800 Mbps Radio 2: up to 1,733 Mbps |
Bluetooth Low Energy (BT/BLE) Radio | Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power | \ |
