FS-148F-POE
Fortinet
100% Original Brand
1 Year
| Color: | |
|---|---|
| Size: | |
| Quantity: | |

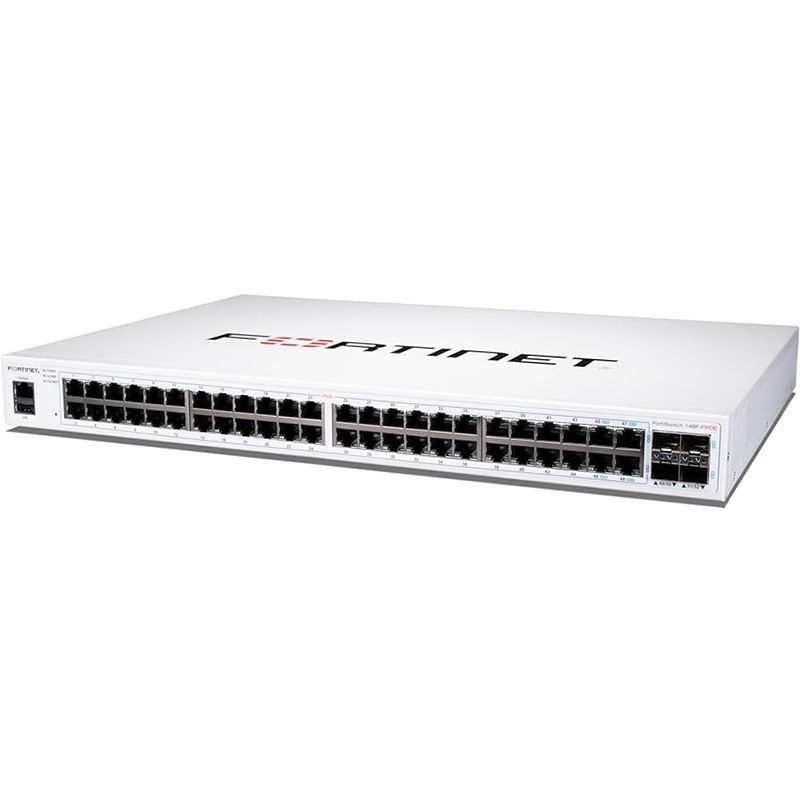

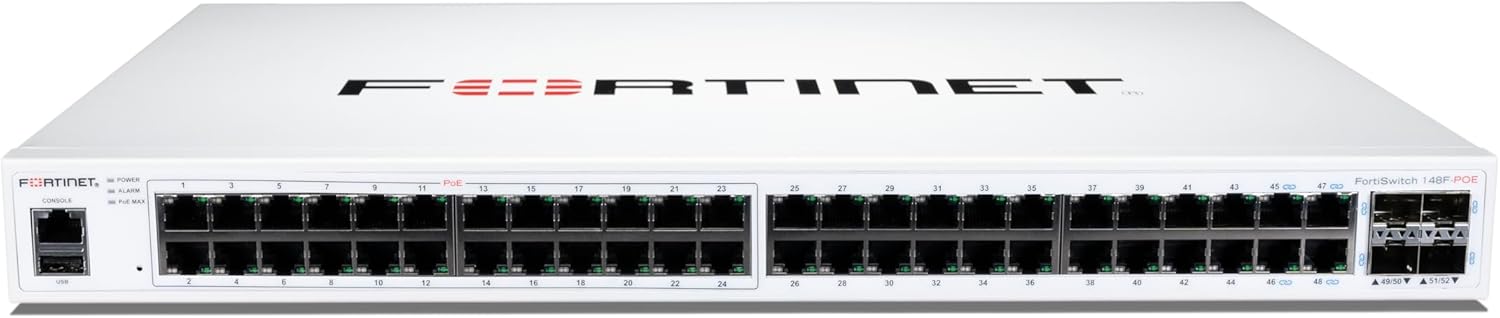

The FortiSwitch-148F-POE belongs to the FortiSwitch series by Fortinet. This performance/price competitive L2+ management switch is designed to provide efficient networking solutions. With 48x GE ports, 4x SFP+ ports, and 1x RJ45 console, this switch offers a wide range of connectivity options.
- 48x GE ports for high-speed data transfer
- 4x SFP+ ports for fiber optic connections
- 1x RJ45 console for easy management
- POE ports with automatic Max 370W POE output limit
- Support for both 802.3af and 802.3at standards
- L2+ management capabilities for enhanced network control
- Offers a cost-effective solution for network management
- Provides high-speed data transfer and reliable connectivity
- Supports Power over Ethernet for easy deployment of IP devices
- Allows for efficient network control and management
- Small to medium-sized business networks
- Education institutions
- Industrial environments
The FortiSwitch-148F-POE can be easily configured and managed through its intuitive web-based interface. It provides comprehensive network visibility and control, allowing administrators to monitor and manage network traffic, configure VLANs, and set up security policies. The switch also supports various management protocols such as SNMP and SSH for seamless integration with existing network management systems.
FS-148F-POE Specifications | |
| Product Model | FS-148F-POE |
| Number of Ports | 48x GE ports + 4x SFP+ ports |
| Console Port | 1x RJ45 console |
| Port Types | 48x GE ports, 4x SFP+ ports |
| Layer | L2+ |
| Management | Managed |
| Power over Ethernet (PoE) Support | Yes |
| Maximum PoE Output | 370W |
| PoE Standard Support | 802.3af (24 ports) / 802.3at (12 ports) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 131 Mpps |
| VLAN Support | Yes |
| Spanning Tree Protocol (STP) Support | Yes |
| Link Aggregation | Yes |
| Power Supply | Internal |
| Redundant Power Support | No |
| Mounting | Rack-mountable |

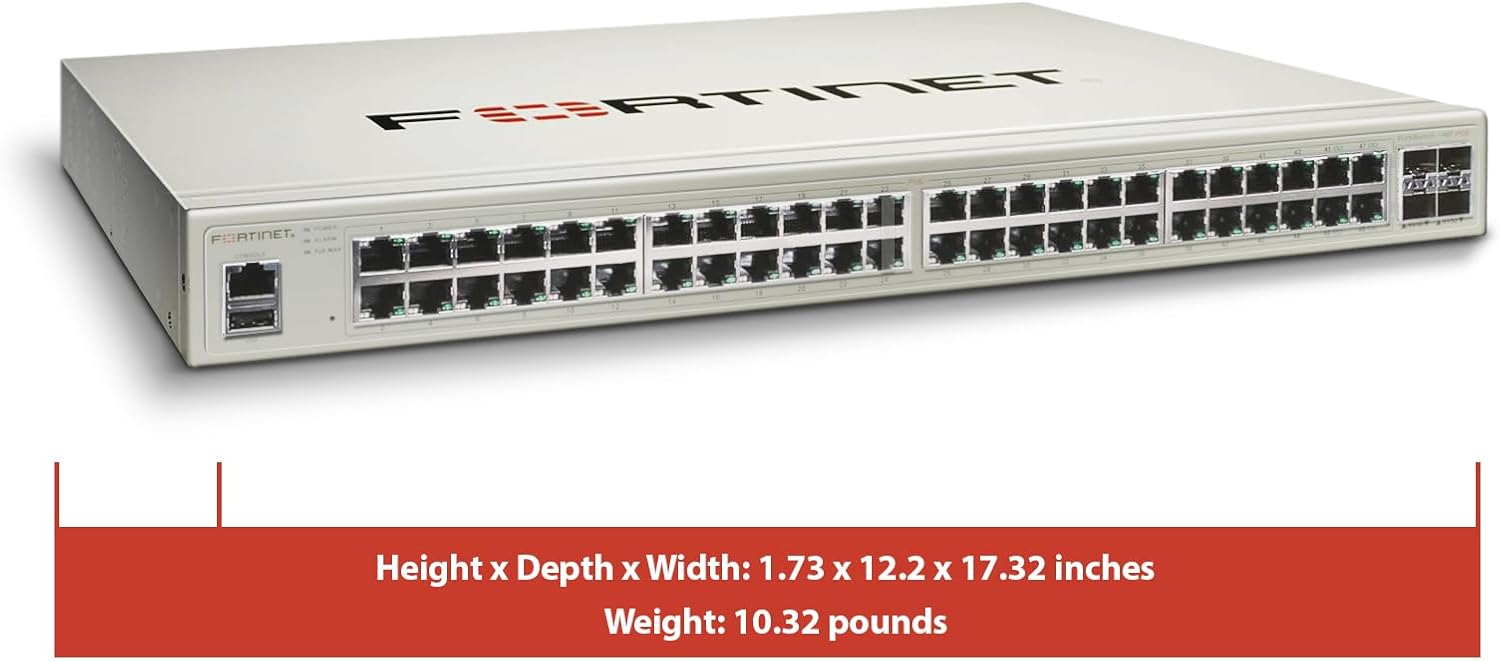

| Dimension (W x D x H) | 440 x 310 x 43 mm |
| Operating Temperature | 0 to 40��C |
| Operating Humidity | 10% to 90% non-condensing |
