FS-224E-POE deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices.

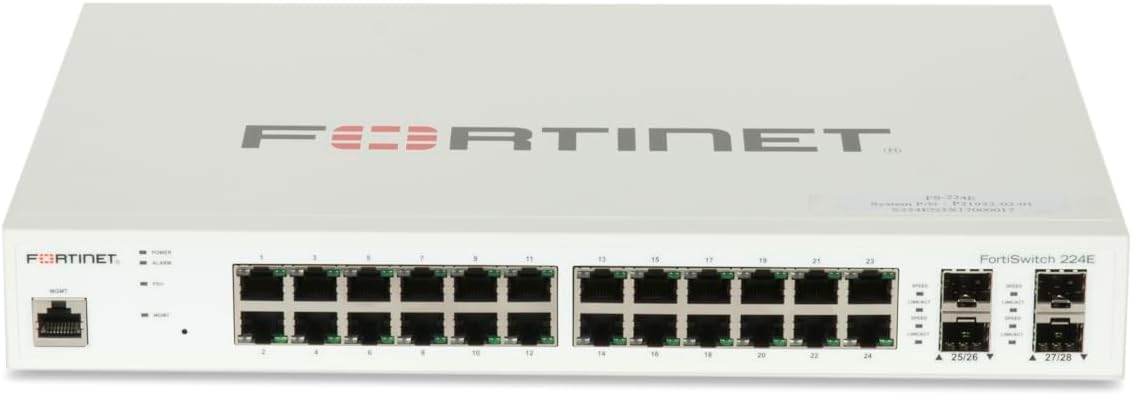

Figure 1 shows the appearance of FS-224E-POE.
Table 1 shows the Quick Specs.
Product Code | FS-224E-POE |
Total Network Interfaces | 24x GE RJ45 ports and 4x GE SFP ports |
Power over Ethernet (PoE) Ports | 12 (802.3af/802.3at) |
PoE Power Budget | 180 W |

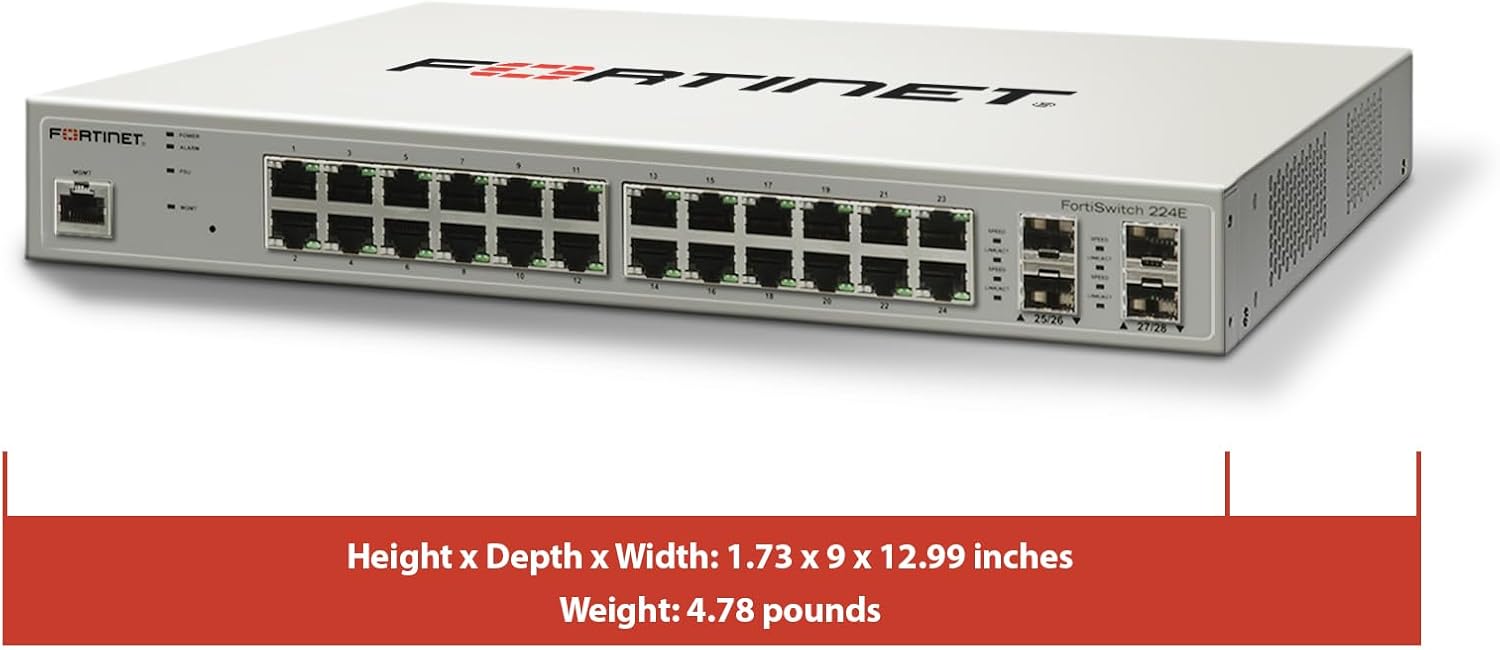

Height x Depth x Width (mm) | 44 x 230 x 330 |
Power Required | 100–240V AC, 50–60 Hz |
Operating Temperature | 32–122°F (0–50°C) |

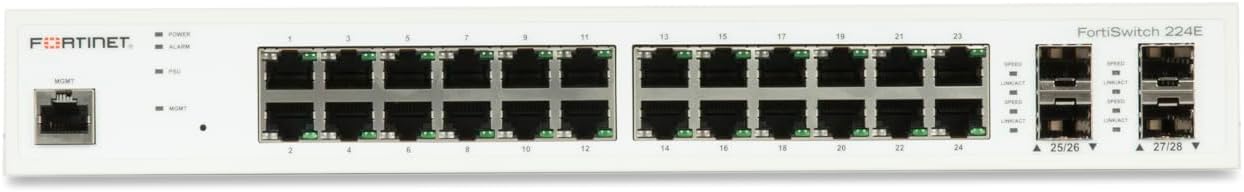

Figure 2 shows the front panel of FS-224E-POE.

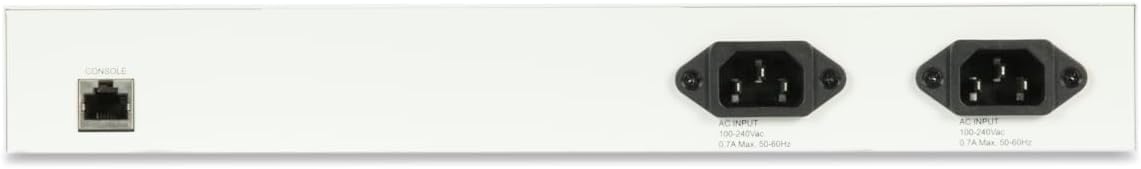

Figure 3 shows the back panel of FS-224E-POE.
FS-224E-POE provides these features:
Security Fabric Integration
Reduces complexity and decreases management cost with network security functions managed through a single console via FortiGate. This integration allows all users to be authenticated against the same user database, regardless of whether they connect to the wired or wireless network, including temporary guest users.
In addition, same security policy can apply to a user or device regardless of how or where they connect to the network.
Simplify Network Deployment
The Power over Ethernet (PoE) capability in some models, enables simple installation of wireless Access Points and IP phones in the network.
Highlights
Secure Access switches suitable for wiringcloset and desktop installations
Ideal for converged network environments; enabling voice, data and wireless traffic to be delivered across a single network
Devices are identified and users authenticated prior to being granted access to the network
Centralized security and access management from FortiGate interface
Up to 48 ports in a compact 1 RU form factor
Stackable up to 300 switches per FortiGate depending on model
Supports Wire-speed switching and Store and Forward forwarding mode
Table 2 shows the comparison of FS-224E-POE.
Module | FS-224E | FS-224E-POE |
Total Network Interfaces | 24x GE RJ45 ports and 4x GE SFP ports | 24x GE RJ45 ports and 4x GE SFP ports |
Switching Capacity (Duplex) | 56 Gbps | 56 Gbps |
Packets Per Second (Duplex) | 83 Mpps | 83 Mpps |
Power Consumption (Average / Maximum) | 17.2 W / 17.3 W | 220.18 W / 223.57 W |
Redundant Power | Redundant AC | Optional FRPS-740 |
Heat Dissipation | 59.095 BTU/h | 74.29554 BTU/h |
Power Required | 100–240V AC, 50–60 Hz | 100–240V AC, 50–60 Hz |
