Grandstream 4-line Carrier-Grade IP Phone GRP2614

The GRP2600 series are carrier-grade IP phones designed for mass deployment. This series of next-generation IP phones features a sleek new design, a reimagined user experience, unified firmware and powerful feature options. Designed for enterprises, service providers and other high-volume markets, the GRP series offers a powerful, easy-to-use and easy-to-deploy voice platform with next-gen features for high-end users.
  • GRP2614
  • Grandstream
  • Original New
  • 1 year
Quantity:

GRP2614

The GRP2600 series are carrier-grade IP phones designed for mass deployment. This series of next-generation IP phones features a sleek new design, a reimagined user experience, unified firmware and powerful feature options. Designed for enterprises, service providers and other high-volume markets, the GRP series offers a powerful, easy-to-use and easy-to-deploy voice platform with next-gen features for high-end users.


4-line Carrier-Grade IP Phone

GRP2614

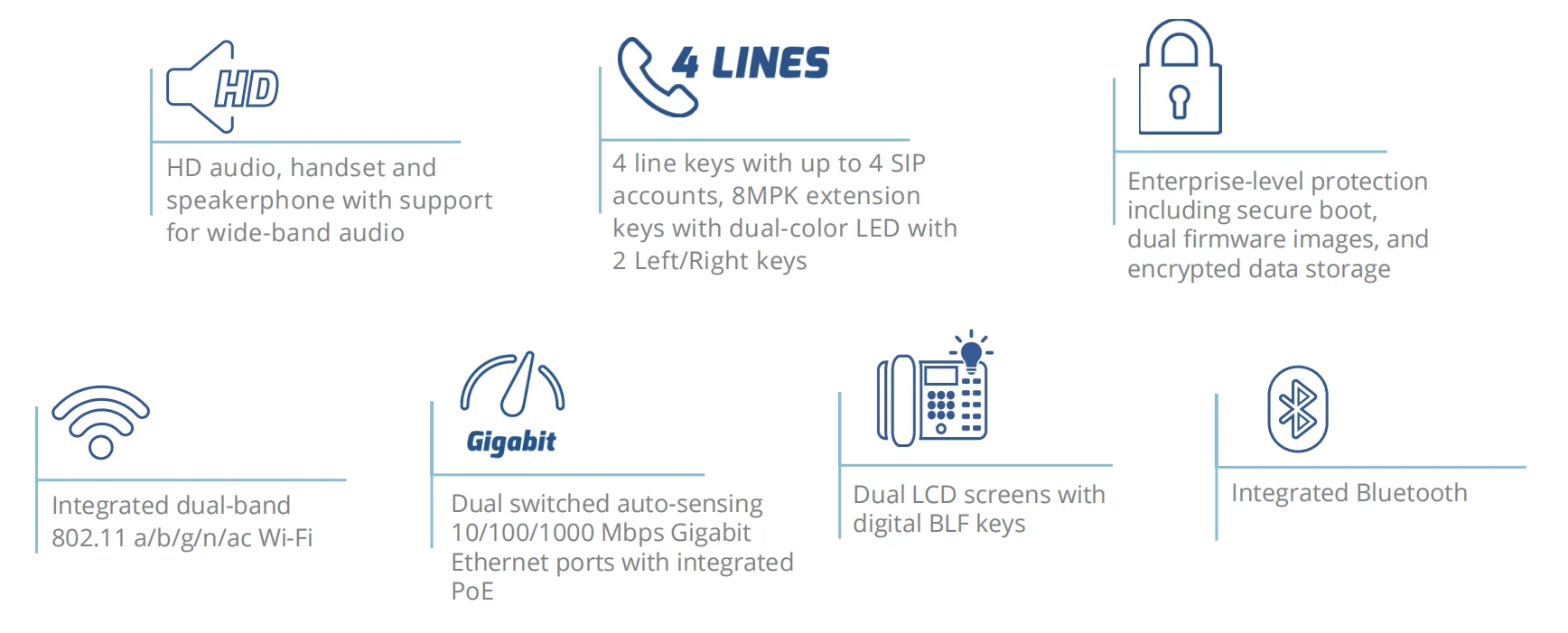

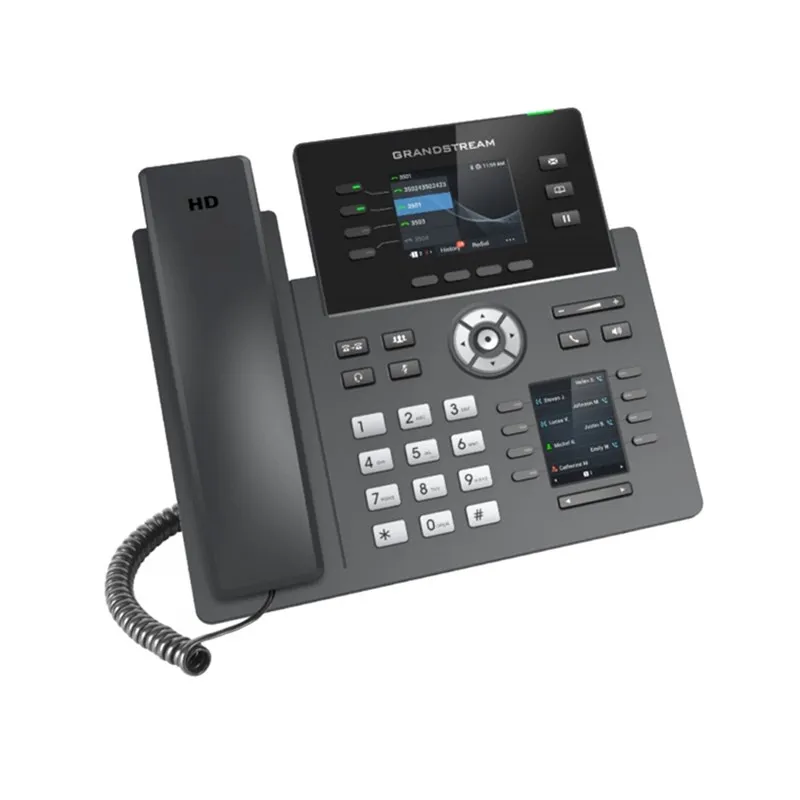

The GRP2614 features a sleek design and a suite of next-generation features including dual LCD screens with 40 virtual multi-purpose keys (VPKs), integrated WiFi, Bluetooth support, dual Gigabit ports and more. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralized management, the GRP2614 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints.
Features


GRP2614

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV,  NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069,  802.1x, TLS, SRTP, IPV6
Network Interfaces
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
Bluetooth
Yes, integrated
Wi-Fi
Yes, integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
USB
Yes
Graphic Display
2.8 inch (320x240) TFT color LCD,2.4 inch (320x240) additional screen
Voice Codecs and Capabilities
Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band),G723,iLBC, OPUS,
in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC,
AJB, AGC
Telephony Features
Hold, transfer, forward, 3-way conference, call park, call pickup, shared-call appearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML,  LDAP, up to 2000 items), call waiting, call log(up to 2000 records), XML  customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible  dial plan, hot-desking, personalized music ringtones and music on hold, server  redundancy and fail-over
HD Audio
Yes, HD handset and speakerphone with support for wideband audio
Extension Module
No
Feature Keys
4 line keys with up to 4 SIP accounts, 8MPK extension keys with dual-color LED with 2 Left/Right keys, 4 XML programmable context sensitive  softkeys, 5 navigation/menu keys, 11 dedicated function keys for:MESSAGE(with LED indicator), phonebook, transfer, conference, hold, headset, mute, send/redial, speakerphone, vol+, vol
Base Stand
Yes, 2 angle positions available, Wall Mountable (*wall mount sold separately)
QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
Auxiliary Ports
RJ9 headset jack (allowing EHS with Plantronics headsets), USB
Security
User and administrator level passwords, MD5 and MD5-sess based authentication,
256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control,
secure boot
Multi-language
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and more
Upgrade/Provisioning
Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR- 069 or AES encrypted XML configuration file.
Power & Green Energy Efficiency
Universal power adapter included - Input:100-240V ; Output: +12VDC, 1A ; Integrated Power-over-Ethernet(802.3af), Max power consumption 3.5W(power adapter) or 4W(PoE)
Temperature and Humidity
Operation: 0°C to 40°C Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Package Content
GRP2614 phone, handset with cord, phone stand, 12V power adapter, network
cable, Quick Installation Guide, GPL license
Physical
Unit weight: 950g ; Package weight: 1460g
Dimension: 234mm x 213mm x 82.2mm
Compliance
FCC: Part 15 Class B; Part 15 Subpart C, 15.247; Part 15 Subpart E, 15.407; FCC Part
68 HAC
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301489-1; EN
301489-17; EN 300328; EN 301893; EN 62311
RCM: AS/NZS CISPR32; AS/NZS 61000.3.2; AS/NZS 61000.3.3; AS/NZS 4268; AS/NZS
60950.1; AS/CA S004
IC: ICES-003; CS-03; RSS-247; RSS-102.
