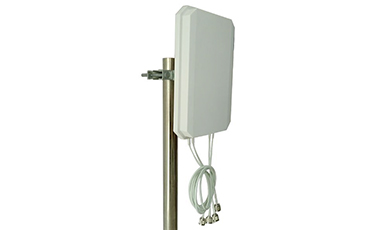

ANT-2510P-M4
H3C
New
1 Year
| Quantity: | |
|---|---|
Item | Specification |
Frequency range | · 2400 MHz to 2500 MHz · 4900 MHz to 5950 MHz |
Polarization | Horizontal/Vertical |
Gain | 10/10 dBi |
Horizontal beamwidth (HBM) | 40/40 degrees |
Vertical beamwidth (VBM) | 40/40 degrees |
Front-to-back ratio (FBR) | ≥ 20/25 dB |
Port-to-port isolation | ≥ 24 dB |
Impedance | 50 Ω |
Voltage standing wave ratio (VSWR) | ≤ 2.0 |
Maximum power | 20 W |
Connectors | 4 × type N male connectors |
Cable length | 0.9 m (2.95 ft) |
Connector position | Bottom |
Dimensions (H × W × D) | 340 × 200 × 45 mm (13.39 × 7.87 × 1.77 in) |
Antenna weight | 1.1 kg (2.43 lb) |
Bracket weight | 1.05 kg (2.31 lb) |
Color | White |
Application scenario | Outdoor |
Operating temperature | –40°C to +70°C (–40°F to +158°F) |
Storage temperature | –50°C to +85°C (–58°F to +185°F) |
Wind resistance | 35 m/s (114.8 ft/s) |
Installation method | Pole mounting, with the pole diameter in the range of 50 to 85 mm (1.97 to 3.35 in) |
