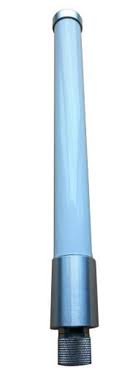

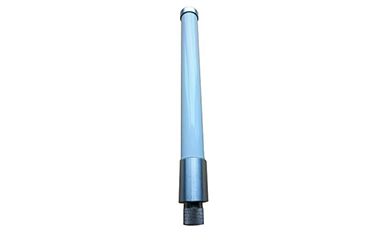

ANT-2547V
H3C
New
1 Year
| Quantity: | |
|---|---|
Item | Specification |
Frequency range | · 2400 MHz to 2500 MHz · 5150 MHz to 5850 MHz |
Polarization | Vertical |
Gain | 4/7 dBi |
Horizontal beamwidth (HBW) | 360 degrees |
Vertical beamwidth (VBW) | 35/17 degrees |
Horizontal out of roundness (dB) | ± 1.5 dB |
Impedance | 50 Ω |
Voltage standing wave ratio (VSWR) | ≤ 2.0 |
Maximum power | 100 W |
Connector | Type N male connector |
Connector position | Bottom |
Size (diameter × length) | 28 × 400 mm (1.10 × 15.75 in) |
Antenna weight | 0.2 kg (0.44 lb) |
Radome material | Fiberglass |
Radome color | White |
Operating temperature | –40°C to +70°C (–40°F to +158°F) |
Operating humidity | 5 % to 95% |
Waterproof level | IP66 |
Wind resistance | 35 m/s (114.8 ft/s) |
Salt spray resistance | Neutral salt spray resistance for 96 hours (GB/T 2423.17-2008) |
Application scenario | Outdoor |
Installation method | Direct mounting |
