Aolynk UR210G-P_FR
H3C
New
1 Year
| Quantity: | |
|---|---|

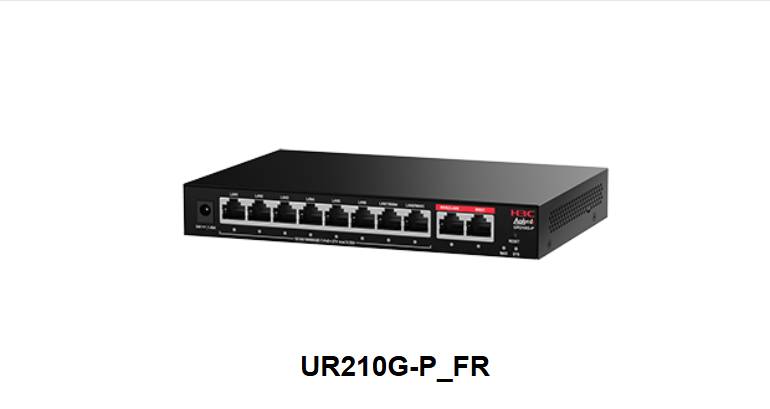

H3C Aolynk UR210G-P_FR Router
H3C Aolynk UR210G-P PoE Gateway is a high-performance enterprise-class router developed by New H3C Technologies Co., Ltd. (H3C) for small and medium-sized enterprise users. It adopts high-performance dual-core processor and advanced software architecture to provide higher bandwidth and VPN function performance. It’s mainly applied for high-speed Internet access of small and micro enterprises, schools, hotels, catering, retail, entertainment, villas and other scenarios.
Using high-performance dual-core CPU, combined with H3C's advanced hardware and software technology, to provide gigabit concurrent processing capabilities and excellent network experience
NAT sessions: 40,000
2 WANs by default, 2 LAN ports can be switched to WAN ports, up to 4 WANs can be accessed concurrently
Multiple WAN link load balancing modes are supported, such as telecom operator destination address based, WAN link bandwidth based, and policy-based routing
Built-in telecom operator address library, and provide one-click download official website of the latest carrier address library, easy to operate
Support HTTP and HTTPS URL filtering, website blacklist and whitelist, keyword fuzzy matching
Support the firewall function of packet filtering to flexibly define traffic control policies
Support the IP-based network traffic rate limiting mechanism.
Support Uweb management, configuration and upgrade of H3C Aolynk series wireless APs and switches
Zero configuration of AP and switch, plug and play
Support IPSec VPN, Support a variety of encryption algorithms, and facilitates enterprises to build virtual private networks over the Internet
Support hardware VPN encryption engine and provides high-speed VPN encryption capability
Support L2TP VPN and LNS and LAC modes
With the Aolynk Cloud network management platform, enterprises can enjoy professional network management and operation and maintenance services without having to purchase professional management servers and software, which greatly reduces the cost of network management for enterprise users and improves the network operation and maintenance management experience.
You can remotely log in to the web of device through the Aolynk Cloud network management platform for function configuration and remote diagnosis.
Name | UR210G-P |
Recommended number of clients | 200 |
Bandwidth | 1Gbps |
IPSec encryption performance | 100Mbps |
Number of IPSec VPN tunnels | 100 |
NAT sessions | 40,000 |
NAT mapping entry | 100 |
Number of supported Aolynk APs | 120+ |
Max number of supported VLAN | 16 |
CPU | Dual Core 880MHz |
RAM | 256MB |
Flash | 128MB |
WAN Ethernet port | 2*GE (1WAN port can be switched to LAN port) |
LAN Ethernet port | 8*GE (PoE+, single port Max 30W, 2 LAN ports can be switched to WAN ports) |
Power consumption of the whole machine | 80W |
PoE maximum power | 75W |
AC power supply | Rated range: 100 to 240V 50/60Hz |
Reset button | Support |
Overall dimensions (W x D x H, mm) | 190 x 125 x 27 |
Ambient temperature | 0 to 40 ° C |
Ambient humidity | 5 to 95% (no condensation) |
Certification | CE, CB, RoHS |
Note: Recommended number of clients and bandwidth are recommended values for comprehensive evaluation under specific experimental environment, and may vary according to the actual environment on site
Features | Description |
WAN Access | Support static IP address, DHCP, PPPoE Support link state detection, ICMP, DNS, NT Support static routing and policy-based routing |
LAN | Support port-based VLAN configuration, MAC address learning, broadcast storm suppression, and traffic mirroring |
QoS | Support limiting traffic per IP Support limiting traffic based on user groups |
Security Features | Defines firewall filtering policies based on source and destination IP addresses and ports |
Support MAC address filtering and MAC address whitelist | |
Support ARP scanning, ARP detection, and ARP protection | |
DDoS attack defense and statistics Prevent WAN port Ping Prevent TCP syn scanning Prevent TCP Stealth FIN scanning Prevent TCP Xmas Tree scanning Prevent TCP Null scanning Prevent UDP scanning features Prevent Land attack function Prevent Smurf attack function Prevent WinNuke attacks Prevent Ping of Death attacks Prevent SYN Flood attacks UDP Flood attack prevention function Prevent ICMP Flood attack function Prevent IP Spoofing Prevent fragmented packet attacks Prevent TearDrop attacks Prevent Fraggle attack feature | |
Support IP address-based and interface connection number limiting | |
Support abnormal host traffic protection | |
Support IP address traffic statistics and ranking | |
Multi-ssid configuration The SSID can be bound to different Vlans | |
Multiple WAN load balancing | Load balancing based on telecom operator destination address Support load balancing based on link bandwidth Load balancing by user (IP address) Support PBR specified line forwarding Support end-to-end link detection and backup |
Network Features | Support for DHCP Server Support NTP Client DDNS support IPTV support IPv6 support |
VPN | IPSec VPN support Support 100 IPSec connections Support AH and ESP protocols IKE automatically establishes SA The ESP Support 3DES and AES encryption algorithms Support MD5 and SHA-1 authentication algorithms IKE main mode and aggressive mode NAT-T traversal Support IPSec connection configuration by domain name (DDNS) Support L2TP VPN (LAC and LNS) |
Management and maintenance | Support WEB management pages Support AolynkCloud network management platform remote management |
