S10500 20G
H3C
New
1 Year
| Quantity: | |
|---|---|

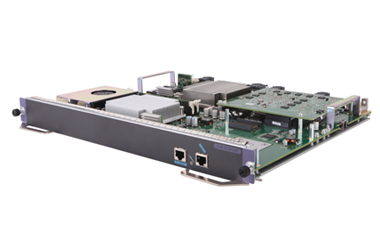

H3C S10500 20G Access Controller Module
Product ID | Product Description |
LSUM1WCMX40RT | H3C S10500 20G Access Controller Module |
Item | LSUM1WCMX20RT (20G AC module) LSUM1WCMX40RT (40G AC module) |
Applicable device | H3C S10500X switch series |
Dimensions (H × W × D) | 40 × 399 × 355 mm (1.57 × 15.71 × 13.98 in) |
Weight | 3.8 kg (8.38 lb) |
Management port | 1 × console port 1 × out-of-band management (OOBM) GE port |
Power consumption | < 180 W |
Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) |
Relative humidity (non-condensing) | Operating and storage humidity: 5% to 95% |
Safety standard | UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J |
EMC standards | ETSI EN 300 386 V1.3.3:2005 EN 55024: 1998+ A1: 2001 + A2: 2003 EN 55022 :2006 VCCI V-3:2007 ICES-003:2004 EN 61000-3-2:2000+A1:2001+A2:2005 EN 61000-3-3:1995+A1:2001+A2:2005 AS/NZS CISPR 22:2004 FCC PART 15:2005 GB 9254:1998 GB/T 17618:1998 |
MTBF | ≥ 55.6 years |
Item | LSUM1WCMX40RT | ||
Basic capabilities | Supported APs without a license | 0 | |
License type | 1/4/8/16/32/64/128/512/1024 | ||
Max number of manageable APs | 1024 | ||
Max number of configurable APs | 4096 | ||
Max number of SSIDs | 1024 | ||
Forwarding capacity | 20 Gbps | ||
802.11 MAC | 802.11 protocol suite | Supported | |
Hide SSID | Supported | ||
802.11g protection | Supported | ||
802.11n only | Supported | ||
Client quantity limit | SSID-based client quantity limit Radio-based client quantity limit | ||
Online client detection | Supported | ||
Automatic client aging | Supported | ||
Multi-country code | Supported | ||
User isolation | VLAN-based user isolation SSID-based user isolation | ||
20 MHz/40 MHz auto-switch in 40 MHz mode | Supported | ||
Local forwarding | Local forwarding based on SSID+VLAN | ||
CAPWAP | Auto AP | Supported | |
AC discovery (DHCP option 43 and DNS) | Supported | ||
IPv6 tunnel | Supported | ||
Network synchronization | Supported | ||
Jumbo frame forwarding | Supported | ||
AP preprovisioning | AP basic network settings such as static IP, VLAN, and AC's IP address | ||
NAT traversal between AP and AC | Supported | ||
Roaming | Intra-AC Layer 2 and Layer 3 roaming | Supported | |
Inter-AC Layer 2 and Layer 3 roaming | Supported | ||
Access control | Open system, shared key authentication | Supported | |
WEP-64/128, dynamic WEP | Supported | ||
WPA, WPA2 | Supported | ||
TKIP | Supported | ||
CCMP | Supported (11n recommended) | ||
SSHv1.5/v2.0 | Supported | ||
Wireless End-point Access Domination (EAD) | Supported | ||
Portal authentication | Supported, remote or external server | ||
Portal webpage redirection | SSID-based portal webpage redirection AP-based portal webpage redirection | ||
Portal by-pass proxy | Supported | ||
802.1X authentication | EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only) | ||
Local authentication | 802.1X authentication, portal authentication, MAC authentication | ||
LDAP authentication | 802.1X and portal access 802.1X EAP-GTC and EAP-TLS | ||
AP-based access control | Supported | ||
Guest access control | Supported | ||
VIP tunnel | Supported | ||
ARP anti-attack | Wireless SAVI | ||
SSID anti-spoofing | Username and SSID binding | ||
Domain- and SSID-based AAA server selection | Supported | ||
AAA server backup | Supported | ||
Local AAA server for wireless clients | Supported | ||
TACACS+ | Supported | ||
QoS | Priority mapping | Supported | |
Layer 2 to Layer 4 traffic classification | Supported | ||
Rate limit | Granularity of 8 Kbps | ||
802.11e/WMM | Supported | ||
User profile-based access control | Supported | ||
Intelligent bandwidth limit (equal bandwidth share algorithm) | Supported | ||
Intelligent bandwidth limit (user specific) | Supported | ||
Intelligent bandwidth guarantee | Free flow for packets coming from every SSID when traffic is not congested, and minimum bandwidth specified for each SSID when traffic is congested | ||
QoS optimization for SVP phone | Supported | ||
Call Admission Control (CAC) | CAC based on client quantity or bandwidth | ||
End-to-end QoS | Supported | ||
AP uplink rate limit | Supported | ||
WLAN resource management | Country code lock | Supported | |
Dynamic frequency selection (DFC) and transmit power control (TPC) | Supported | ||
Dynamic transmit rate control | Supported | ||
Coverage hole detection and correction | Supported | ||
Load balancing mode | Traffic-based load balancing Session-based load balancing Radio group based load balancing (dual-band supported) | ||
Intelligent load balancing | Supported | ||
AP load balancing group | Auto-discovery and flexible setting | ||
Security | Static blacklist | Supported | |
Dynamic blacklist | Supported | ||
Whitelist | Supported | ||
Others | Bonjour gateway | Supported | |
Hotspot 2.0 | Supported | ||
AC hierarchy | Central AC | ||
HA | IRF, license sharing, AC dual-link backup | ||
Third-party application | Facebook authentication, WeChat authentication | ||
