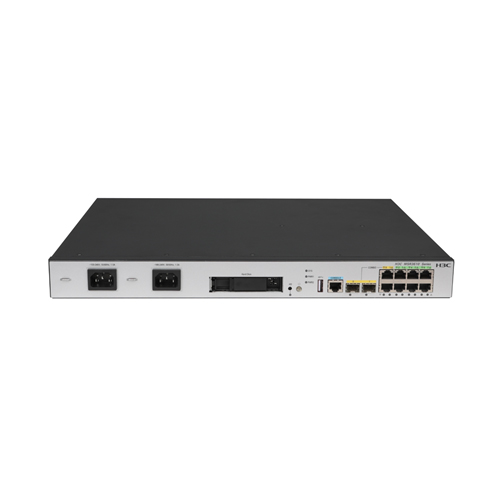

MSR3610-IE-DP
H3C
New
1 Year
| Quantity: | |
|---|---|
Runs H3C's state-of-art Comware network operating system and supports security, switching, wireless, and routing services.
Integrates computing and storage capabilities and supports an external drive.
Uses a professional hardware virtualization platform to group hardware resources including CPU, memory, storage, and interface in resources pools to enable flexible and dynamic resource allocation and adjustment based on the actual requirements.
Device management and operating status monitoring—Manages versions, configurations, groups, and regions.
CT service management—Configures VPN services, monitors operation state, controls bandwidth, and analyzes app statistics.
IT services management—Performs computing and storage resource status monitoring, service status management (start, stop, and restart), and new service online release.
Supports CT and IT service deployment from a USB drive, making it possible to deploy a large number of MSR3600 gateways in a short time.
Provides GE copper, GE fiber, RS232, Provides multiple slots for port expansion
Supports the standard Windows, CentOS, Ubuntu, and RedHat operating systems for quick and smooth integration with customized services of third parties.
Provides open RESTful APIs on the AD-EC platform for third parties to develop application-layer and value-added services.
Item | MSR3610-I-DP | MSR3610-IE-DP |
IP Forwarding Performance (IMIX) | 3.8 Gbps | 3.8 Gbps |
Forwarding Performance with ACL+NAT+QOS (IMIX) | 2.5 Gbps | 3.5 Gbps |
IPSec Forwarding Performance (1400byte) | 780 Mbps | 1.5 Gbps |
CPU | X86, Quad-core, 2.2 GHz | X86, eight-core, 2.2 GHz |
Memory (default/maximum) | 8 GB | 16/32 GB |
Flash | 4 GB (EMMC) | 64 GB (EMMC) |
HDD slot (2.5 inch) | 1 | 1 |
USB port | 1(USB3.0) | 1(USB3.0) |
Console port | 1 | 1 |
WAN ports | 2 × GE combo ports | 2 × GE combo ports |
LAN ports | 6 x GE ports(can be configured as WAN interfaces) | 6 x GE ports(can be configured as WAN interfaces) |
SIC slot | 4 | 4 |
Performance(1518B) | 3.9 Gbps | 3.9 Gbps |
Operating system | Support for KVM Support for Windows, CentOS, Ubuntu, and RedHat | Support for KVM Support for Windows, CentOS, Ubuntu, and RedHat |
Max power consumption | 54 W | 54 W |
Power redundancy | Supported | Supported |
Power voltage | AC: 100 VAC to 240 VAC @ 50 Hz/60 Hz | AC: 100 VAC to 240 VAC @ 50 Hz/60 Hz |
Height | 1 RU | 1 RU |
Dimensions (H × W × D) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) | |
Operating Temperature | Without a hard disk: 0°C to 45°C With hard disk: 5°C to 40°C | |
Operating Altitude | < 5000m | |
Operating Humidity | Without a hard disk: 5 to 95%, non-condensing With a hard disk: 10 to 80%, non-condensing | |
Storage temperature | –40°C to 70°C | |
FCC Part 15 Subpart B CLASS A ICES-003 CLASS A VCCI-CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254.1 | ||
Safety Standards Compliance | FDA 21 CFR Subchapter J UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1 | |
Environment Standards Compliance | IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-78 IEC 60068-2-30 IEC 60068-2-14 | |
Shock and vibration Standards Compliance | IEC 60068-2-64 IEC 60068-2-31 IEC 60068-2-27 | |
Item | Specification |
Layer 2 switching | Ethernet, Ethernet II, VLAN, 802.1p, 802.1Q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE Client, and PPPoE Server |
IP services | Unicast/multicast, TCP, UDP, IP option, IP unnumbered, policy-based routing, and NetStream ECMP UCMP |
IP application | Ping, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, NTP, and SNTP |
IPv4 routing | Static routing Dynamic routing: RIPv1/v2, OSPFv2, BGP, IS-IS Policy routing Multicast routing: IGMPv1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP |
IPv6 | IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, 6PE, and DS-LITE IPv6 tunneling: manual tunneling, automatic tunneling, GRE tunnel, 6to4, ISATAP Static routing Dynamic routing: RIPng, OSPFv3, IS-ISv6, BGP4+ IPv6 multicast: MLDv1/v2, PIM-DM, PIM-SM |
QoS | LR Committed access rate (CAR) FIFO, WFQ, CBQ Generic Traffic Shaping (GTS) Traffic classification |
Security | Portal, 802.1X Local authentication, RBAC, RADIUS, TACACS+ Basic Firewall Function, ASPF, ACL, filter, connection limit IKE, IPSec ADVPN, GDVPN, SSL VPN L2TP, NAT, PKI, RSA, SSHv1.5/2.0, URPF, mGRE, GRE ARP attack prevention Endpoint Admission Defense (EAD) AES, DES, 3DES,MD5, SHA1 |
MPLS | LDP, Static LSP L3VPN: MCE/multirole host L2VPN: Martini, Kompella, CCC PWs and static PWs |
High availability | VRRP, VRRPv3 Bandwidth-based load balancing and backup IP address-based load balancing and backup NQA collaboration with routing, VRRP or interface backup |
Management and maintenance | SNMP v1/v2c/v3, MIB, SYSLOG, RMON BiMS remote management, booting from USB drive CLI, file system, and dual image DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, SNMP Console port login, Telnet (VTY) login, SSH login, and FTP login EAA |
Virtualization | Integration of a highly available and high-performance open virtualization platform that supports third-party operating systems, such as Windows, CentOS, Ubuntu, and RedHat Complete lifecycle management of virtual machines, including VM creation, modification, startup, pause, recovery, hibernation, reboot, shutdown, and power-off Monitoring of critical VM resources, such as VM CPU, memory, disk I/O, and network I/O Support of high-performance virtualization Ethernet adapter and SR-IOV to virtualize the physical Ethernet adapter into several virtual adapters for VMs Support of fast app deployment, app deployment to VMs through USB disk, and unified app deployment throughout the network Complete troubleshooting and recovery mechanism Scheduled backup and manual backup Real-time monitoring of VM state VM anomaly detection and auto reboot |
