H3C MSR810-EI IPSec SDN OpenFlow SD-WAN Ready VPN Carrier Cloud Enterprise Router

Share to:

H3C MSR810-EI IPSec SDN OpenFlow SD-WAN Ready VPN Carrier Cloud Enterprise Router

H3C MSR810-EI is an enterprise-class multi-service router from H3C, belonging to the MSR2600 series, which is designed for enterprise WAN optimization and SDN/cloud network convergence, and is suitable for network core or branch deployment in finance, education, government, and SMEs.

Model:
MSR810-EI
Brand:
H3C
Condition:
New
Warranty:
1 Year

Availability:

Quantity:



Inquire Add to Basket

Product Description

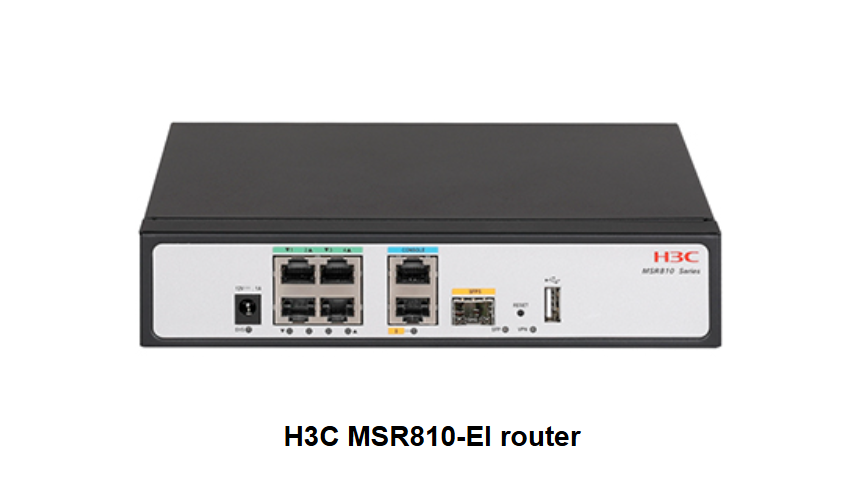

H3C MSR810-EI router

The MSR810 series can be deployed as an egress router for small- to medium-sized enterprise networks to operate with VPN, NAT, and IPSec service gateways. Together with other H3C products, the MSR810 can provide comprehensive network solutions for government, power, financial, tax, public security, railway, and education customers.

Advanced technologies

Uses H3C's leading Comware network operating system to provide intelligent service scheduling management mechanism and supports loose coupling of different service modules as well as the dynamic loading of processes and patches.

Powerful security features

Service security

Packet filtering, including stateful filtering, MAC address filtering, IP and port number filtering, and time range filtering.
Real-time traffic analysis.

Network security

Rich and comprehensive VPN technologies, including IPSec, L2TP, GRE, MPLS VPN and mix usage of different VPN technologies.
Routing security protection, including OSPF/RIP/IS-IS/BGP dynamic routing protocol, OSPFv3/RIPng/IS-ISv6/BGP IPSec encryption and rich routing policy control functions.

End device access security

Unified endpoint access binding authentication, including EAD secure check authentication, 802.1X authentication, endpoint MAC address authentication, web-based portal authentication, endpoint access static binding, and MAC address auto-learning and binding.
ARP attack prevention, including fixed source MAC address, ARP attack protection, ARP source suppression, ARP detection, source MAC consistency check and protection, ARP rate limit, and ARP active acknowledgement mechanism.

Equipment management security

Role-based access control that allocates resources based on roles, and provides users and roles mapping.
Control plane traffic restriction, traffic control and filtering based on protocol type, queue, known protocol and specific protocol.
Remote security management, such as SNMPv3, SSH, and HTTPS remote management.
Management behavior control and audit, including AAA server central authentication, command line authority and real-time report of operation records.

Granular control

Uses granular identification and control to rate limit and filter application layer services and ensure bandwidth and provides detailed network statistics for network optimization.
Performs load balancing based on bandwidth, user, user group, service, or application by using asymmetric link, traffic load balancing, and multi-topology dynamic routing technologies.
Supports flexible bandwidth sharing based on service, user, user group, link, and user bandwidth.

Intelligent network management

Comprehensive network management methods—Supports command line and SNMP.

Zero-configuration setup—Enables zero configuration setup and USB-based automatic configuration.

Comware embedded EAA function—Monitors the internal events and status of the system's software and hardware components. If a fault occurs, it collects diagnostic information and attempts to make automatic repairs as well as sending the diagnostic information to a specific email address.

High availability

Independent hardware processing module for monitoring and programmable components that supports online upgrade and auto loading to strengthen product reliability.

Millisecond link fault detection technology Bidirectional Forwarding Detection (BFD) and Track between BFD and static routing, RIP/OSPF/BGP/ISIS dynamic routing, VRRP, or interface backup.

Network quality analyzer (NQA) and Track between NQA and static routing, VRRP, or interface backup.

Multi-device redundancy and load balancing (VRRP/VRRPE).

Fast reroute, and GR/NSR.

Hardware Specifications

Item	MSR810-LM-EA	MSR810-EI
IP Forwarding Performance (IMIX)	400 Mbps	400 Mbps
Forwarding Performance with ACL+NAT+QOS (IMIX)	200 Mbps	200 Mbps
IPSec Forwarding Performance (1400byte)	70 Mbps	70 Mbps
AD-WAN Typical Encryption Performance (IMIX)	40 Mbps	40 Mbps
CPU	800MHz	800MHz
Memory	1 GB	1 GB
Flash(default/maximum)	256 MB	256 MB
External Flash	N/A	N/A
USB ports	1	1
Console ports	1	1
WAN ports	1 × GE copper port 1 × SFP port	1 × GE copper port 1 × SFP port
LAN port	4 × GE ports (can be configured as WAN interfaces)	4 × GE ports (can be configured as WAN interfaces)
WLAN	N/A	N/A
WLAN antenna	N/A	N/A
Built-in 3G/4G modem	TDD-LTE: · Band 38: 2570 to 2620 M · Band 40: 2300 to 2400 M · Band 41: 2496 to 2690 M FDD-LTE: · Band 1: UL: 1920 to 1980 M, DL: 2110 to 2170 M · Band 3: UL: 1710 to 1785 M, DL: 1805 to 1880 M · Band 5: UL: 824 to 849 M, DL: 869 to 894 M · Band 7: UL: 2500 to 2570 M, DL: 2620 to 2690 M · Band 8: UL: 880 to 915 M, DL: 925 to 960 M · Band 20: UL:832～862M, DL:791～821MHz · Band 28: UL: 703 to 748 M, DL: 758 to 803 M WCDMA/HSPA+: · Band 1: UL: 1920 to 1980 M, DL: 2110 to 2170 M · Band 5: UL: 824 to 849 M, DL: 869 to 894 M · Band 8: UL: 880 to 915 M, DL: 925 to 960 M GSM: · Band 3: UL: 1710 to 1785 M, DL: 1805 to 1880 M · Band 5: UL: 824 to 849 M, DL: 869 to 894 M · Band 8: UL: 880 to 915 M, DL: 925 to 960 M	N/A
3G/4G antenna	Stick-like/Magnetic antenna	N/A
SIM card slot	2 (dual-card one-standby)	N/A
Max power consumption	12W	24W
Power voltage(adapter)	External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz	External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz
Power voltage(device)	DC 12V 2A	DC 12V 2A
Dimensions (H × W × D)	44 x 210 x 140 mm	44 × 210 × 130 mm
Operating Temperature	0°C to 45°C	0°C to 45°C
Operating Altitude	< 5000m	< 5000m
Operating Humidity	5 to 95%, non-condensing	5 to 95%, non-condensing
EMC Standards Compliance	FCC Part 15 Subpart B CLASS B ICES-003 CLASS B VCCI CLASS B CISPR 32 CLASS B EN 55032 CLASS B AS/NZS CISPR32 CLASS B CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 ETSI EN 301 489-1 ETSI EN 301 489-52 GB/T 9254.1	FCC Part 15 Subpart B CLASS B ICES-003 CLASS B VCCI CLASS B CISPR 32 CLASS B EN 55032 CLASS B AS/NZS CISPR32 CLASS B CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254.1
Safety Standards Compliance	FDA 21 CFRSubchapter J GB 4943.1 UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1	FDA 21 CFRSubchapter J GB 4943.1 UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1
Radio & Health Standards Compliance	ETSI EN 301 908-1 ETSI EN 301 908-2 ETSI EN 301 908-13 EN 301 511 EN 50665 EN IEC 62311	N/A
Environment Standards Compliance	IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-78 IEC 60068-2-30 IEC 60068-2-14	IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-78 IEC 60068-2-30 IEC 60068-2-14
Shock and vibration Standards Compliance	IEC 60068-2-64 IEC 60068-2-31	IEC 60068-2-64 IEC 60068-2-31

Software specifications

Item	Specification
Layer 2 switching	Ethernet, Ethernet II, VLAN (port-based VLAN, guest VLAN), 802.3x, 802.1p, 802.1Q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server, and DDR
IP services	Unicast/multicast, TCP, UDP, IP option, IP unnumbered, policy-based routing, NetStream, and sFlow
IP application	Ping, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, NTP, and SNTP
IPv4 routing	Static routing Dynamic routing: RIPv1/v2, OSPFv2, BGP, IS-IS Route iteration Policy routing Equal-cost multi-path routing (ECMP) Multicast routing: IGMPv1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP
IPv6	IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, 6PE, and DS-LITE IPv6 tunneling: Manual tunneling, automatic tunneling, GRE tunnel, 6to4, ISATAP Static routing Dynamic routing: RIPng, OSPFv3, IS-ISv6, BGP4+ IPv6 multicast: MLDv1/v2, PIM-DM, PIM-SM
QoS	LR, port-based mirroring, Port Trust Mode, and port priority Committed access rate (CAR) FIFO, WFQ, CBQ Generic Traffic Shaping (GTS) Traffic classification
Security	PPPoE client & server, portal, 802.1X Local authentication, RBAC, RADIUS, TACACS+ Basic Firewall Function, ASPF, ACL, filter, connection limit IKE, IPsec L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, URPF, mGRE, GRE ARP attack prevention SSL VPN, ADVPN, GDVPN AES, DES, 3DES,MD5, SHA1
MPLS	LDP, Static LSP L3VPN: Inter-AS MPS VPN (Option 1/2/3), MPLS nested VPN, hierarchy of PE (HoPE), dual-homed CE, MCE, and multirole host L2VPN: Martini, Kompella, CCC PWs and static PWs MPLS TE, RSVP TE
High availability	VRRP, VRRPv3 Bandwidth-based load balancing and backup IP address-based load balancing and backup NQA collaboration with routing, VRRP or interface backup
Management and maintenance	SNMP v1/v2c/v3, MIB, SYSLOG, RMON BiMS remote management, booting from USB drive CLI, file system, and dual image DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, and SNMP Console port login, Telnet (VTY) login, SSH login, and FTP login

屏幕截图 2025-06-25 115759

Item	MSR810-LM-EA	MSR810-EI
IP Forwarding Performance (IMIX)	400 Mbps	400 Mbps
Forwarding Performance with ACL+NAT+QOS (IMIX)	200 Mbps	200 Mbps
IPSec Forwarding Performance (1400byte)	70 Mbps	70 Mbps
AD-WAN Typical Encryption Performance (IMIX)	40 Mbps	40 Mbps
CPU	800MHz	800MHz
Memory	1 GB	1 GB
Flash(default/maximum)	256 MB	256 MB
External Flash	N/A	N/A
USB ports	1	1
Console ports	1	1
WAN ports	1 × GE copper port 1 × SFP port	1 × GE copper port 1 × SFP port
LAN port	4 × GE ports (can be configured as WAN interfaces)	4 × GE ports (can be configured as WAN interfaces)
WLAN	N/A	N/A
WLAN antenna	N/A	N/A
Built-in 3G/4G modem	TDD-LTE: · Band 38: 2570 to 2620 M · Band 40: 2300 to 2400 M · Band 41: 2496 to 2690 M FDD-LTE: · Band 1: UL: 1920 to 1980 M, DL: 2110 to 2170 M · Band 3: UL: 1710 to 1785 M, DL: 1805 to 1880 M · Band 5: UL: 824 to 849 M, DL: 869 to 894 M · Band 7: UL: 2500 to 2570 M, DL: 2620 to 2690 M · Band 8: UL: 880 to 915 M, DL: 925 to 960 M · Band 20: UL:832～862M, DL:791～821MHz · Band 28: UL: 703 to 748 M, DL: 758 to 803 M WCDMA/HSPA+: · Band 1: UL: 1920 to 1980 M, DL: 2110 to 2170 M · Band 5: UL: 824 to 849 M, DL: 869 to 894 M · Band 8: UL: 880 to 915 M, DL: 925 to 960 M GSM: · Band 3: UL: 1710 to 1785 M, DL: 1805 to 1880 M · Band 5: UL: 824 to 849 M, DL: 869 to 894 M · Band 8: UL: 880 to 915 M, DL: 925 to 960 M	N/A
3G/4G antenna	Stick-like/Magnetic antenna	N/A
SIM card slot	2 (dual-card one-standby)	N/A
Max power consumption	12W	24W
Power voltage(adapter)	External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz	External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz
Power voltage(device)	DC 12V 2A	DC 12V 2A
Dimensions (H × W × D)	44 x 210 x 140 mm	44 × 210 × 130 mm
Operating Temperature	0°C to 45°C	0°C to 45°C
Operating Altitude	< 5000m	< 5000m
Operating Humidity	5 to 95%, non-condensing	5 to 95%, non-condensing
EMC Standards Compliance	FCC Part 15 Subpart B CLASS B ICES-003 CLASS B VCCI CLASS B CISPR 32 CLASS B EN 55032 CLASS B AS/NZS CISPR32 CLASS B CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 ETSI EN 301 489-1 ETSI EN 301 489-52 GB/T 9254.1	FCC Part 15 Subpart B CLASS B ICES-003 CLASS B VCCI CLASS B CISPR 32 CLASS B EN 55032 CLASS B AS/NZS CISPR32 CLASS B CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254.1
Safety Standards Compliance	FDA 21 CFRSubchapter J GB 4943.1 UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1	FDA 21 CFRSubchapter J GB 4943.1 UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1
Radio & Health Standards Compliance	ETSI EN 301 908-1 ETSI EN 301 908-2 ETSI EN 301 908-13 EN 301 511 EN 50665 EN IEC 62311	N/A
Environment Standards Compliance	IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-78 IEC 60068-2-30 IEC 60068-2-14	IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-78 IEC 60068-2-30 IEC 60068-2-14
Shock and vibration Standards Compliance	IEC 60068-2-64 IEC 60068-2-31	IEC 60068-2-64 IEC 60068-2-31

Item	Specification
Layer 2 switching	Ethernet, Ethernet II, VLAN (port-based VLAN, guest VLAN), 802.3x, 802.1p, 802.1Q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server, and DDR
IP services	Unicast/multicast, TCP, UDP, IP option, IP unnumbered, policy-based routing, NetStream, and sFlow
IP application	Ping, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, NTP, and SNTP
IPv4 routing	Static routing Dynamic routing: RIPv1/v2, OSPFv2, BGP, IS-IS Route iteration Policy routing Equal-cost multi-path routing (ECMP) Multicast routing: IGMPv1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP
IPv6	IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, 6PE, and DS-LITE IPv6 tunneling: Manual tunneling, automatic tunneling, GRE tunnel, 6to4, ISATAP Static routing Dynamic routing: RIPng, OSPFv3, IS-ISv6, BGP4+ IPv6 multicast: MLDv1/v2, PIM-DM, PIM-SM
QoS	LR, port-based mirroring, Port Trust Mode, and port priority Committed access rate (CAR) FIFO, WFQ, CBQ Generic Traffic Shaping (GTS) Traffic classification
Security	PPPoE client & server, portal, 802.1X Local authentication, RBAC, RADIUS, TACACS+ Basic Firewall Function, ASPF, ACL, filter, connection limit IKE, IPsec L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, URPF, mGRE, GRE ARP attack prevention SSL VPN, ADVPN, GDVPN AES, DES, 3DES,MD5, SHA1
MPLS	LDP, Static LSP L3VPN: Inter-AS MPS VPN (Option 1/2/3), MPLS nested VPN, hierarchy of PE (HoPE), dual-homed CE, MCE, and multirole host L2VPN: Martini, Kompella, CCC PWs and static PWs MPLS TE, RSVP TE
High availability	VRRP, VRRPv3 Bandwidth-based load balancing and backup IP address-based load balancing and backup NQA collaboration with routing, VRRP or interface backup
Management and maintenance	SNMP v1/v2c/v3, MIB, SYSLOG, RMON BiMS remote management, booting from USB drive CLI, file system, and dual image DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, and SNMP Console port login, Telnet (VTY) login, SSH login, and FTP login
