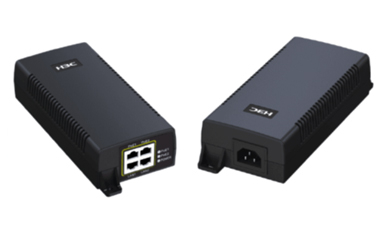

ADP060-55V-POE-GL
H3C
New
1 Year
| Quantity: | |
|---|---|
Item | Specification |
Size（W×D×H） | 208mm × 85mm × 46mm |
Weight | 437g |
Input Voltage | 100V AC～240V AC；50/60Hz |
Input Current | 1.5A Max, at 115Vac, Full load 0.75A Max, at 230Vac, Full load |
Input Connector* | IEC320 C14 |
AC Inrush Current | 30A Max. At 115Vac, Cold start. 60A Max. At 230Vac, Cold start |
Output Voltage | 55V |
Output rated current | 1.1A |
Total Output Power | 60W |
Output Connection | Pins 3,6, 4,5(+) Pins 1,2, 7,8 (-) |
Power Efficiency | Level V |
Protection | OCP,OVP,SCP |
Temperature | Operation: -30℃～55℃ Non-operation: -40℃～70℃ |
Humidity（Non-condensing） | 5%～95% |
Altitude | Up to 5000m |
EMC | EN 55032: RE,CE CISPR 32: RE,CE IEC 61000-4-2: ESD IEC 61000-4-3: RS IEC 61000-4-4: EFT IEC 61000-4-5: Surge IEC 61000-4-6: CS IEC 61000-4-11: DIPS |
Safety Approvals | CE,TUV, CCC |
* Note: AC power cord will be configured with the adapter according to the country or areas
