H3C RA5100-G-HI 5G Access IPv6 Ready ISP Networks Carrier-Grade Dual Power Enterprise Router

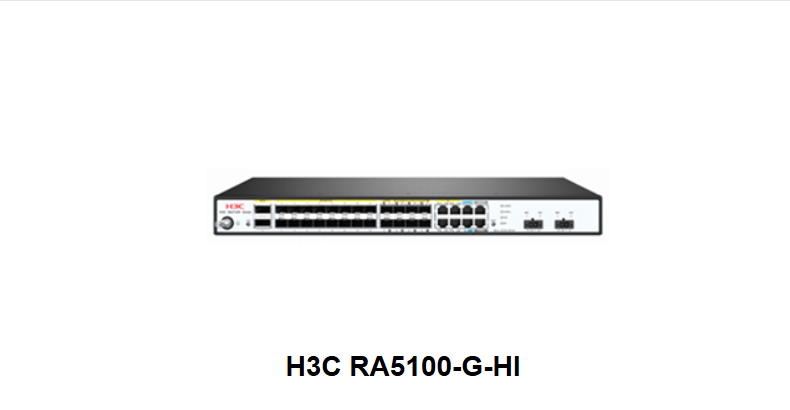

                                     H3C RA5100-G-HI Router

Advanced Hardware Architecture Design

RA5300 adopts dual master control design, the main and standby switching business is not interrupted, business card supports hot plug-in, improve the reliability of the whole machine operation;

RA5300 adopts non-blocking switching bus architecture, professional integrated service processing engine, and supports up to 100G ring network and line speed service processing capability.

Support GE, 10GE, 25GE, 50GE and 100GE business boards, provide flexible configuration model;

Hardware coprocessor is used to accelerate the processing of protocol messages such as clock synchronization, BFD and OAM, providing ns-level clock accuracy and millisecond level link fault detection.

Supports 100G FlexE interface, guarantees service isolation load and flexible bandwidth adjustment;

Mature Network Platform

The H3C mature Comware V7 modular cloud network operating system is adopted to improve the operation performance, make the routing convergence faster and improve the system availability.

Business modularization design concept supports loose coupling of business modularization, and can realize dynamic loading and upgrading of modules and patches.

Support Telemetry, Netconf, YANG, SNMP, provide SDN software define network to expanding;

Carrier-level reliability

Support abundant reliability characteristics to ensure the uninterrupted operation of network equipment, including:

Support BFD for ISIS, OSPF, BGP, PW, LDP to achieve fast convergence of network faults;

Support MPLS L2VPN FRR (Fast Rerouting), MPLS L3VPN FRR, OSPF/ISIS FRR to achieve fast handover of fault links;

Support a variety of service protection technologies: LFA, LSP (1:1) tunnel protection, PW Redundancy service protection, which can meet the millisecond level reliability requirements;

Support high-precision error detection function based on message verification, automatically triggers interface status, PW, routing, L3VPN for fast switching, to ensure high availability of services;

Overall and Efficient OAM

Supports BFD OAM, it can realize fast detection and detection of link faults.

Supports network quality detection functions such as Y. 1731, RFC2544, TWAMP Light, Y. 1564, etc.

Supports hardware coprocessor to process detection protocol messages, and achieves millisecond level detection accuracy.

Supporting hardware coprocessor to send and receive detection traffic, guaranteeing the detection capability of 10GE, 25GE, 50GE, 100GE links;

High Precision Clock Synchronization

Supports G. 8275.1, realizes high precision time synchronization through SyncE + PTP, provides ns level time synchronization guarantee;

SyncE is supported to achieve frequency synchronization, and its performance meets G. 8262.1 requirement.

Support PTP (Precision Time Protocol) IEEE 1588v2 protocol to achieve synchronization of time

Supports BMC (Best Master Clock) algorithm, avoids generating clock loops, and supports the selection and switching of high quality clock sources.

Support OC/BC/ TC multiple clock types;

Rich routing and IPv6 features

Support OSPF、ISIS、BGP、OSPFv3、BGP4+、ISISv6 and other rich dynamic routing characteristics;

Support comprehensive MPLS network characteristics, flexibly deploy MPLS L3VPN, MPLS L2VPN, TE (Traffic Engineering), IPv6 MPLS L3VPN, EVPN, Segment Routing and other applications to meet the needs of integrated services access;

Support IPv4 and IPv6 multicast, including: IGMPV1/V2/V3, IPv4 and IPv6 PIM-DM/SM, MBGP, MSDP, MLD;

Plug and Play, Efficient Operation and Maintenance

Standardized network management interface, support SNMP, NETCONF and other standard protocols , easy to adapt to the third party network management platform;

Support ISP DCN, meet the demand of plug- and play automatic deployment of equipment;

Supports network monitoring features such as Telemetry, flow classification statistics, Dying Gasp, etc.

The built-in EAA function monitors the internal events and states of the software and hardware components of the system, and provides automatic collection and troubleshooting mechanism of fault information.
