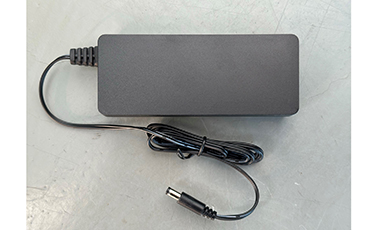

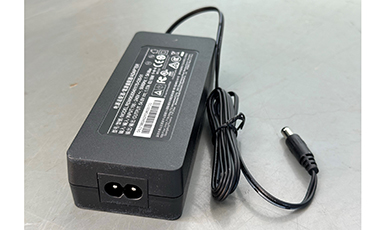

RDW06305401170-C55-51 is 63W power adapter for indoor wireless AP, and its Voltage input is from 90 to 264VAC, and output is 54VDC/1.17A.

Item	RDW06305401170-C55-51
Size（L×W×H）	129mm × 53mm × 30mm
Weight	202g
Input Voltage	90V AC～264V AC; 47~63Hz
Input Current	1.5A Max, at 90Vac, Full load
Input Connector*	IEC320 C7
Output Voltage	54V
Output rated current	1.17A
Output Power	63W
Output Connector
Temperature	Operation: -5℃～45℃ Non-operation: -40℃～70℃
Humidity（Non-condensing）	5%～95%
EMC	EN55032/ CISPR 22/FCC Part 15, class B/ GB9254 EN55032/ CISPR 22/FCC Part 15, class B /GB9254. EN 55024:1998 +A1:2001 +A2:2003, IEC 61000-4-4: EFT EN 55024:1998 +A1:2002 +A2:2003, IEC 61000-4-5: Surge EN 55024:1998 + A1:2002 +A2:2203, IEC 61000-4-2: ESD
Safety Approvals	UL60950 GB4943 EN62368

732

Item	RDW06305401170-C55-51
Size（L×W×H）	129mm × 53mm × 30mm
Weight	202g
Input Voltage	90V AC～264V AC; 47~63Hz
Input Current	1.5A Max, at 90Vac, Full load
Input Connector*	IEC320 C7
Output Voltage	54V
Output rated current	1.17A
Output Power	63W
Output Connector
Temperature	Operation: -5℃～45℃ Non-operation: -40℃～70℃
Humidity（Non-condensing）	5%～95%
EMC	EN55032/ CISPR 22/FCC Part 15, class B/ GB9254 EN55032/ CISPR 22/FCC Part 15, class B /GB9254. EN 55024:1998 +A1:2001 +A2:2003, IEC 61000-4-4: EFT EN 55024:1998 +A1:2002 +A2:2003, IEC 61000-4-5: Surge EN 55024:1998 + A1:2002 +A2:2203, IEC 61000-4-2: ESD
Safety Approvals	UL60950 GB4943 EN62368
