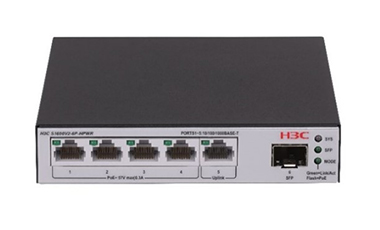

H3C S1600V2-6P-HPWR Gigabit Switch Access Web Managed Ethernet Port+Optical PoE+ Port Enterprise Switch

H3C S1600V2 Ethernet switch product is independently developed by New H3C Technologies Co., Ltd. (H3C). It is a web managed switch designed for network environments. It is easy to install, provides a rich set of features, and is widely used in small and medium-sized enterprises, commercial chains, CCTV, campuses, and other scenarios.
H3C S1600V2-10P switch models: 9GE+1*SFP

  • S1600V2-6P-HPWR

  • H3C

  • New

  • 1 Year

Availability:
Quantity:

H3C S1600V2-6P-HPWR Gigabit Access Web Managed Switch Series

Rich port types

All series support "Ethernet port + optical port" combination, adapting to various scenarios of networking needs, convenient and flexible networking;

All ports are equipped with line speed forwarding capability to meet the needs of different users.

Reliable Security Policy

Supports broadcast storm suppression to prevent excessive broadcast packets from being sent from other ports of the switch, which in turn affects the network.

Supports black hole MAC address configuration to filter out illegal users and safeguard network security.

Easy-to-use network management

Cloudnet and intelligent Web management functions fit smart and easy managing demand , the page is simple and easy to operate, reducing operation and maintenance costs.

Fast network for quick project creation

Supports automatically obtaining IP address from gateway and connecting to external network without configuration.

Green Design

The S1600V2 series switch implements a variety of green energy saving features, Energy-saving design significantly reduces the power consumption and failure points of the equipment, and at the same time reduces radiation to meet the radiation standards of household appliances, which is harmless to the human body;

The entire product meets the EU RoHS standards for environmental protection and safety of materials.


Software Specifications

Feature

S1600V2 switch series

Broadcast/Multicast/Unicast storm suppression

Black hole MAC support

Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression

Traffic control

802.3x traffic control and half-duplex backpressure

MAC address table

Static MAC address

Blackhole MAC address

VLAN

Port-based VLAN

DHCP

DHCP Client

DHCP snooping

Forwarding

Wire-speed/Line-rate architecture

Mirroring

Port mirroring

Management and

maintenance

Loopback-detection

Web management

EMC

FCC Part 15 Subpart B CLASS A

ICES-003 CLASS A

VCCI CLASS A

CISPR 32 CLASS A

EN 55032 CLASS A

AS/NZS CISPR32 CLASS A

CISPR 35

EN 55035

EN 61000-3-2

EN 61000-3-3

GB/T 9254.1

Safety

UL 62368-1

CAN/CSA C22.2 No 62368-1

IEC 62368-1

EN 62368-1

AS/NZS 62368-1

FDA 21 CFR Subchapter J

GB 4943.1



Hardware Specifications

Feature

S1600V2-6P-HPWR

Switching capacity

12Gbps

Forwarding capacity

8.93Mpps

Dimensions (W × D × H)

130×124×27 mm

Weight

≤0.5 kg

Networking interface

4*GE(poe+)+1GE+1*SFP

Port Surge

6KV

Input voltage

AC: The rated voltage range is 100V to 240V, 50/60Hz.

Total power consumption

MIN:
AC: 3W
MAX:
AC single 86W (PoE 73W)

Fan number

Fan-less


MTBF(Year)

88.60

V2-6P-HPWR
