H3C SR6602-X2 Modular VPN/NAT Support Carrier-Grade SD-WAN Ready Enterprise Router

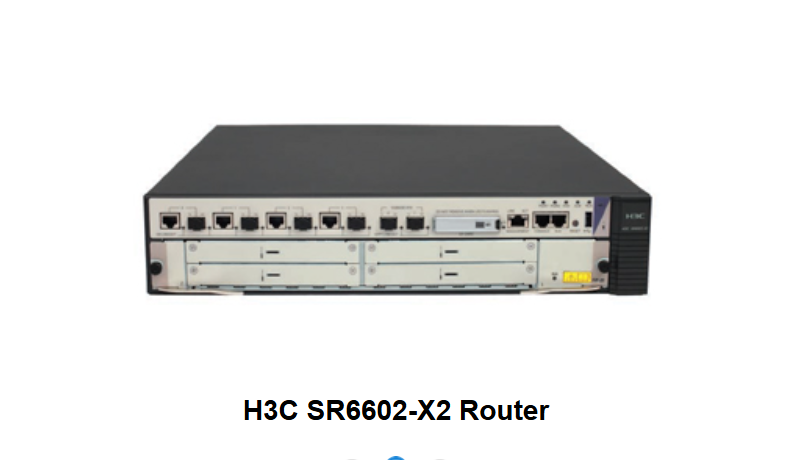

H3C SR6602-X2

The H3C SR6602-X is a high-end compact Aggregation Service Router for enterprise network and carrier customers, targeting at medium-sized vertical network aggregation, high-end business users and large branches operator-managed high-performance CPE market. The product works as a corporate VPN, NAT, IPSec and other services gateway. Along with other H3C networking products, it provides a comprehensive network solution to users in multiple industries from the government, finance, utilities, operators and medium-sized enterprises.

The H3C SR6602-X router is the first of its kind in the industry to provide fixed 10GE interfaces, with a new generation of higher-performance multi-core processing chip, enabling 10GE wire-speed processing performance. H3C SR6602-X software uses sophisticated commercial H3C Comware operating system and hardware is based on a new flexible interface design to maximize investment protection, fully meet the networking requirements of users in different industries while ensuring high performance and flexible configuration.

H3C SR6602-X series contains SR6602-X1 and SR6602-X2. SR6602-X1 provides 4GE fixed Combo interfaces and one service slot, supporting pluggable redundant power supply. SR6602-X2 provides 4GE fixed Combo, 2-port fixed 10GE and one service slot, supporting pluggable redundant power supply. SR6602-X uses the new FIP-20 and FIP-10 flexible interface platform. FIP-20 supports SR6600 High-speed Interface Module (HIM). FIP-10 is compatible with MSR series routers Multifunctional Interface Module (MIM) module to meet the user upgrade from narrowband to broadband access needs.

Industry-leading development concept

The H3C SR6602-X router is based on the industry-leading compact design, not only providing high density integrated high-speed ports on the 2U height chassis, supporting for FIP-20 and FIP-10 flexible interface platforms, but also achieving hot swappable and redundant power supplies and hot swappable fan modules, Thereby ensuring compatibility of the service modules and protecting customer’s investment while guaranteeing high reliability and network configuration flexibility.

Rich and flexible interface design

The H3C SR6602-X router interface platform has a flexible design with a strong expansion capability. FIP-10 can support four MIM and FIP-20 can support two HIM or two MIM, and support for HIM and MIM mixed configuration.

SR6602-X supports 10GE, GE, FE, POS OC-48/OC-12/OC-3, cPOS OC-3 (channelized to E3/T3 or E1/T1), ATM OC- 3, E3/T3, E1/T1, Serial and other WAN interfaces. Rich interface type makes SR6602-X not not only as a WAN aggregation router, but also as a local area network core router. Such a router can meet flat networking needs, reducing network tiers, to protect user investment.

The SR6602-X file system provides a wide variety of storage media, supporting CF card and USB, in addition to meeting growing customer demand for storage capacity, at the same time providing users with flexible storage and different interfaces for file management.

Powerful routing capabilities

The H3C SR6602-X router supports a large-capacity routing table, while supporting rich routing policies and powerful policy based routing. SR6602-X allows flexible control and scheduling of network traffic, to meet different business characteristics for the Enterprise and carrier market. In addition, H3C SR6602-X also fully supports IPv4/IPv6 static routing and dynamic routing protocols, such as RIP/RIPng, OSP /OSPFv3, IS-IS/IS-ISv6, BGP/BGP4 + and more..

Professional routing gateway

With the public IP address resource depletion as well as the proliferation of user scale, performance requirements of NAT gateway is gradually increasing from campus network users. The H3C SR6602-X with its advanced high-performance multi-core processing technology provides dedicated core to process NAT forwarding. NAT forwarding performance can reach over 10Gbps with concurrent 2,000,000 NAT connections, 256 bytes and mixed IMIX Internet packets. The powerful NAT forwarding performance meets the challenges of large campus network gateway performance requirements, as well as other future network expansion requirements

At the same time, more and more companies want to use public networks to set up VPNs to connect geographically separated branches. SR6602-X supports comprehensive L2TP, IPSec and GRE tunneling technology. Independent hardware encryption and hardware kernel, providing 8Gbps IPSec data encryption processing power without increasing the investment, 6000 IPSec tunnel, 18000 L2TP tunnel and 4000 GRE tunnels. High-performance encryption capabilities and a large capacity can meet a variety of large tunnel encryption gateway requirements and ensure user data security in the WAN transportation

Intelligent service bandwidth management

WAN carries an important range of business traffic. Due to the presence of WAN high convergence ratio itself, congestion, delay, packet loss and other characteristics, how to maximize the use of network bandwidth resources in such an environment, improving system transmission reliability, is an important issue for WAN equipment. H3C leverages years of enterprise network experience, and has accumulated numerous requirements for enterprise network bandwidth applications, and formed a complete set of service bandwidth management mechanisms after analysis and research.

Including:

Active/Standby Network Bandwidth Management: in case of the resource constraints of main network connection, a portion of the data traffic re-routing to the backup network for data transmission according to pre defined routing policy. The idle resources can be fully utilized up to100%.

UCMP (Unequal Cost Multipath) intelligent load sharing: UCMP is different from traditional ECMP. Its greatest feature is the use of weights to distinguish the use of bandwidth, making two different bandwidths egress tunnels to bear different data traffic flows according to the different bandwidth.

Bandwidth reservation and resources sharing: the network can be divided into certain exclusive bandwidths for each department to ensure business-critical QoS, with the remaining bandwidth shared, to meet unexpected traffic demands.

Improve bandwidth utilization with hierarchical CAR: Multi-level CAR processing techniques, through multi-level processing sees bandwidth re-allocation, bandwidth utilization increase dramatically.

Advanced hierarchical queuing scheduling HQoS (Hierarchical Quality of Service): With the expansion of user numbers, increase of service types, network devices cannot only distinguish traffic, but are also capable of handling multiple users, a variety of services, a variety of flows and other transport objects for unified management and hierarchical scheduling. Obviously, it is difficult to achieve these requirements via traditional QoS technology. HQoS adopts the multi-layer scheduling queues, such as physical level, logical level, application or service level, and other scheduling levels. Each level can use the different features for traffic management to achieve multi-level traffic management, which can better help carriers to achieve multi-user, multi- service management.

Comprehensive network security

SR6602-X builds a variety of security features to provide users with a full range of network security:

Comprehensive firewall features: support packet filtering firewall, stateful inspection firewall, packet filtering various attacks, and the provision of a log filter. Specific ACL acceleration algorithm eliminates firewall performance degradation by applying the number of ACL filtering rules.

Comprehensive built-in means anti-attack measures.

Supports a variety of ARP anti-attack techniques, such as: ARP rate-limit, ARP DHCPR security authentication, ARP authorization, ARP active acknowledgment, source MAC consistency check and protection and more, which can be a good protection mechanism against rampant ARP attacks within the network, ensure network stability.

Single-packet attack protection: Effective protection against Fraggle, ICMP Redirect, ICMP Unreachable, LAND, Large ICMP, Route Record, Smurf, Source Route, TCP Flag, Tracert, WinNuke single-packet attacks and other Single-packet attacks.

Scanning attack protection: the attacker uses the network scanning tools to scan host addresses or ports, detection of the target system network topology and the type of service is enabled on the target system to prepare for further intrusion.

Flooding attack protection: effectively prevents SYN Flood attacks, ICMP Flood attack, and UDP Flood.

Carrier-class reliability design

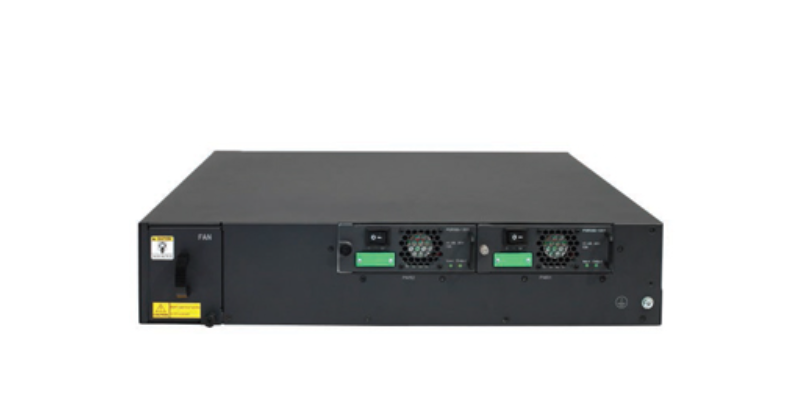

SR6602-X adheres to the high-end design concept to provide users with comprehensive reliability guarantee: in hardware, providing hot swappable redundant power supplies, with AC or DC power input, and ensuring operation in case of single power failure. All interface modules support the hot swappable capability, ensuring uninterrupted services in the case of plug or replace individual modules, and provides hot patching technology to achieve a smooth software upgrade.

Support MPLS TE Fast ReRoute (FRR), with Fast Routing Backup (FRB) features, combined with Bidirectional Forwarding Detection (BFD) functions, to achieve fast link switchover.

Support IP FRR, working with static routing/policy routing/PBR/RIP/IS-IS/OSPF, combined with BFD functions, to achieve fast routing link switchover.

Support IGP fast convergence.

Supports Virtual Routing Redundancy Protocol (VRRP), combined with a BFD fault detection mechanism to achieve fast VRRP switchover. In addition, supporting Virtual Router Redundancy Protocol Extended (VRRPE), multiple virtual routers can achieve load balancing.

Supports OSPF/IS-IS/BGP/MPLS LDP/MPLS RSVP-TE GR (Graceful Restart) functions to achieve nonstop forwarding.
