WA538
H3C
New
1 Year
| Quantity: | |
|---|---|
Product ID | Product Description |

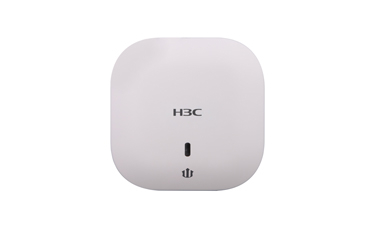

EWP-WA538-WW-FIT | H3C WA538 Internal Antennas 8 Streams Triple Radio 802.11ac/n Wave 2 Access Point,FIT,WW |
H3C 802.11ac Wave2 series AP complies with 802.11ac Wave2 standard and features maximum four streams 1733Mbps wireless transfer rate for 5GHz (WA560 and WA538) and total 3Gbps speed of combining 2.4GHz and 5GHz (WA538). With the smart adaptive antenna array technology, it can increase the scope of coverage, improve access density and operation stability, and provide a better mobile cloud access and wireless network total cost of ownership (TCO). The WA500 series is available for easy maintenance and management from the H3C Oasis cloud platform.
H3C 802.11ac Wave2 series AP supports Dual uplink ports, which remove any bottleneck that limits the upstream speed in wireless products with Fast Ethernet ports, and provide a smooth upgrade path that allows for faster transmission and diversified RF deployment strategies.
Dual GE ports also provide uplink transmission backup that will remove a single point of failure on the wired transmission.
H3C innovative triple band technology offers customers 5GHz+5GHz+2.4GHz unparalleled high density and extremely high performance access. The total speed combined 2.4GHz and 5GHz can reach 3Gbps on WA538.
The triple band access solution is extremely useful in high density scene such as meeting room or big classroom.
H3C 802.11ac Wave2 series AP supports Multi-user MIMO (MU-MIMO) technology, MU-MIMO has become the quintessential feature for wave2 AP. MU-MIMO technology which allows the AP to transmit data to multiple terminal devices simultaneously. According to terminal stream quantity, H3C 802.11ac Wave2 series AP can concurrently transmit data to multiple terminals with single stream. This improves data transmission efficiency, raises the number of users accessing the AP and provides better user experience.
H3C 802.11ac Wave2 series AP employs a green design which supports dynamic MIMO power saving (DMPS), enhanced automatic power save delivery (E-APSD), and smart identification of real terminal network requirements. It can dynamically adjust the MIMO working mode and efficiently put terminals to sleep from time to time.
Green-AP mode supports single radio standby and allows for more precise control in power saving.
H3C 802.11ac Wave2 series AP supports the innovative per-packet power control technology, which reduces standby power consumption and improves the battery lives of mobile devices without losing packets.
H3C 802.11ac Wave2 series AP is fully compliant with IPv6 and implements a dual IPv4/IPv6 protocol stacks. Existing IPv4 and IPv6 wired networks can work in parallel and seamlessly to register WLAN with WX series ACs, so that it never runs as an information silo.
Real Time Spectrum Guard (RTSG) is the innovative H3C professional state-monitoring program for the wireless spectrum. H3C 802.11ac Wave2 series AP supports the internal RF data acquisition module to achieve deeply integrated monitoring and real time spectrum protection.
The RTSG Console is integrated into the iMC (intelligent Management Center), and performs data acquisition through the CAPWAP tunnel management and Sensor AP. It can achieve 24x7 wireless signal quality monitoring, trend assessment and unauthorized interference alert. Through active probe and 2.4GHz/5GHz RF interference source (WiFi or non-WiFi) in every band, it provides a graphic representation of real-time FFT plot of the spectral density plot, spectrum diagram, the duty cycle map, event spectrum diagram, channel gain and interference gain. It can also automatically identify the source of interference, to determine the location of rogue wireless equipment, to ensure the wireless network is always in great shape. Combined with H3C iMC IAR (Intelligent Analysis Report) module, it can maintain a complete history of RF quality in the coverage area, including its trace and playback, automatically generate customized trend, compliance and audit reports.
To cater for the different supervision demands in user's wireless environment, the RTSG solution can be deployed in either Local mode or Monitor mode. In Local Mode, you can maintain normal user access and data packet forwarding without compromising effective spectrum protection.
H3C iMC End-user Admission Defense (EAD) integrates network access and endpoint security products, which ensure only complied wireless clients with mandated enterprise security policies to access network, reducing threat levels from infected wireless clients and raising the bar and improving the overall security of the wireless network. When working with a security policy server, it can remind users, isolate and boot them off the network when their systems are infected or not patched properly.
H3C 802.11ac Wave2 series AP can work as a remote probing and analysis sensor device. It can intercept WiFi packets nearby and save to a local device in real-time for troubleshooting and optimization analysis. Remote probing can conduct a non-convergent image for working channels, or a polling of all channels to satisfy wireless network monitoring and maintenance requirements.
Anchor AC mode is designed for networks of all sizes, including SMB. In Anchor AC mode, AP will serve as a virtual controller for the entire network. (Not included WA530,WA510H,WA560)
H3C uses built-in hardware filtering to minimize the impact of interference from 3G/4G cellular networks.
Product ID | Product Description |
EWP-WA538-WW-FIT | H3C WA538 Internal Antennas 8 Streams Triple Radio 802.11ac/n Wave 2 Access Point,FIT,WW |
H3C 802.11ac Wave2 series AP complies with 802.11ac Wave2 standard and features maximum four streams 1733Mbps wireless transfer rate for 5GHz (WA560 and WA538) and total 3Gbps speed of combining 2.4GHz and 5GHz (WA538). With the smart adaptive antenna array technology, it can increase the scope of coverage, improve access density and operation stability, and provide a better mobile cloud access and wireless network total cost of ownership (TCO). The WA500 series is available for easy maintenance and management from the H3C Oasis cloud platform.
H3C 802.11ac Wave2 series AP supports Dual uplink ports, which remove any bottleneck that limits the upstream speed in wireless products with Fast Ethernet ports, and provide a smooth upgrade path that allows for faster transmission and diversified RF deployment strategies.
Dual GE ports also provide uplink transmission backup that will remove a single point of failure on the wired transmission.
H3C innovative triple band technology offers customers 5GHz+5GHz+2.4GHz unparalleled high density and extremely high performance access. The total speed combined 2.4GHz and 5GHz can reach 3Gbps on WA538.
The triple band access solution is extremely useful in high density scene such as meeting room or big classroom.
H3C 802.11ac Wave2 series AP supports Multi-user MIMO (MU-MIMO) technology, MU-MIMO has become the quintessential feature for wave2 AP. MU-MIMO technology which allows the AP to transmit data to multiple terminal devices simultaneously. According to terminal stream quantity, H3C 802.11ac Wave2 series AP can concurrently transmit data to multiple terminals with single stream. This improves data transmission efficiency, raises the number of users accessing the AP and provides better user experience.
H3C 802.11ac Wave2 series AP employs a green design which supports dynamic MIMO power saving (DMPS), enhanced automatic power save delivery (E-APSD), and smart identification of real terminal network requirements. It can dynamically adjust the MIMO working mode and efficiently put terminals to sleep from time to time.
Green-AP mode supports single radio standby and allows for more precise control in power saving.
H3C 802.11ac Wave2 series AP supports the innovative per-packet power control technology, which reduces standby power consumption and improves the battery lives of mobile devices without losing packets.
H3C 802.11ac Wave2 series AP is fully compliant with IPv6 and implements a dual IPv4/IPv6 protocol stacks. Existing IPv4 and IPv6 wired networks can work in parallel and seamlessly to register WLAN with WX series ACs, so that it never runs as an information silo.
Real Time Spectrum Guard (RTSG) is the innovative H3C professional state-monitoring program for the wireless spectrum. H3C 802.11ac Wave2 series AP supports the internal RF data acquisition module to achieve deeply integrated monitoring and real time spectrum protection.
The RTSG Console is integrated into the iMC (intelligent Management Center), and performs data acquisition through the CAPWAP tunnel management and Sensor AP. It can achieve 24x7 wireless signal quality monitoring, trend assessment and unauthorized interference alert. Through active probe and 2.4GHz/5GHz RF interference source (WiFi or non-WiFi) in every band, it provides a graphic representation of real-time FFT plot of the spectral density plot, spectrum diagram, the duty cycle map, event spectrum diagram, channel gain and interference gain. It can also automatically identify the source of interference, to determine the location of rogue wireless equipment, to ensure the wireless network is always in great shape. Combined with H3C iMC IAR (Intelligent Analysis Report) module, it can maintain a complete history of RF quality in the coverage area, including its trace and playback, automatically generate customized trend, compliance and audit reports.
To cater for the different supervision demands in user's wireless environment, the RTSG solution can be deployed in either Local mode or Monitor mode. In Local Mode, you can maintain normal user access and data packet forwarding without compromising effective spectrum protection.
H3C iMC End-user Admission Defense (EAD) integrates network access and endpoint security products, which ensure only complied wireless clients with mandated enterprise security policies to access network, reducing threat levels from infected wireless clients and raising the bar and improving the overall security of the wireless network. When working with a security policy server, it can remind users, isolate and boot them off the network when their systems are infected or not patched properly.
H3C 802.11ac Wave2 series AP can work as a remote probing and analysis sensor device. It can intercept WiFi packets nearby and save to a local device in real-time for troubleshooting and optimization analysis. Remote probing can conduct a non-convergent image for working channels, or a polling of all channels to satisfy wireless network monitoring and maintenance requirements.
Anchor AC mode is designed for networks of all sizes, including SMB. In Anchor AC mode, AP will serve as a virtual controller for the entire network. (Not included WA530,WA510H,WA560)
H3C uses built-in hardware filtering to minimize the impact of interference from 3G/4G cellular networks.
