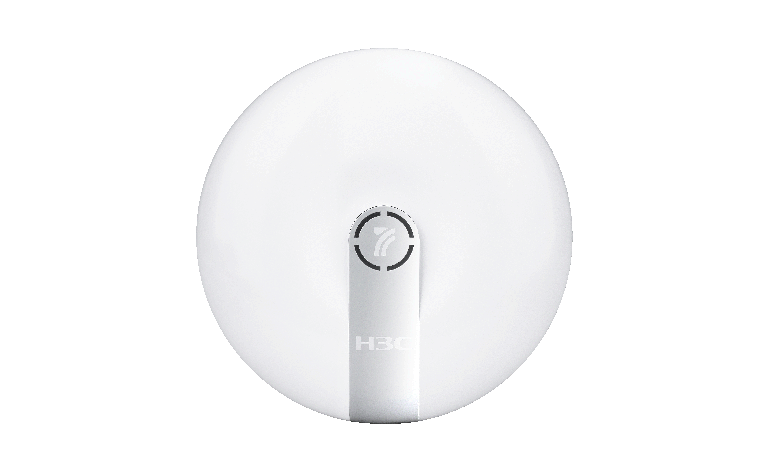

Name | WA7220-HI |
Weight | 670g |
Dimensions (W × D × H) | 220 mm × 220 mm × 40 mm |

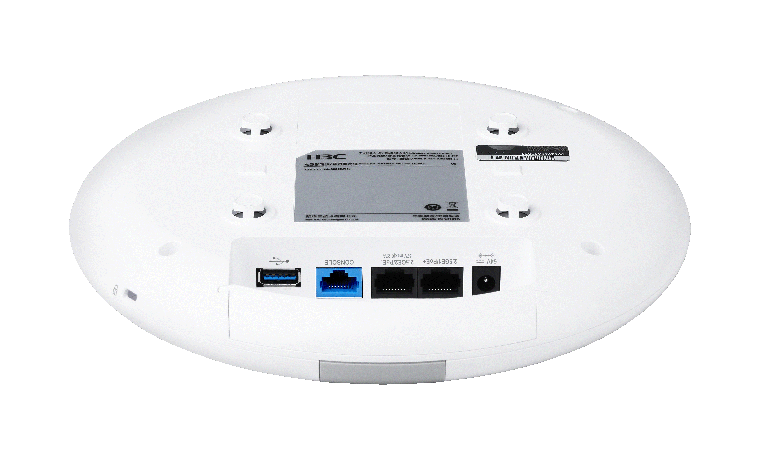

Interface | 1 x 100/1000M/2.5G Ethernet, RJ-45, PoE input 1 x 100/1000M/2.5G Ethernet, RJ-45, PoE output |
Console port | 1 × Management console port (RJ-45) |
USB port | 1(2.0) at 2.5W |
PoE input | 1 x 100/1000M/2.5G Ethernet, 802.3at/802.3af |
PoE output | 1 x 100/1000M/2.5G Ethernet, 802.3af |
Local power supply | 54V DC |
Antenna Type | Built-in omni-directional antenna |
Antenna Gain | 6GHz peak gain: 4.4dBi 5GHz peak gain: 4.0dBi 2.4GHz peak gain: 3.0dBi Note: The equivalent antenna gain is 3.1dBi in 6GHz, 3.2dBi in 5GHz and 1.9dBi in 2.4GHz |
Built-in IoT Module | BLE5.3 |
Frequencybands | 2.400to2.4835GHzISM
5.150to5.250GHzU-NII-1
5.250to5.350GHzU-NII-2A
5.470to5.725GHzU-NII-2C
5.725to5.850GHzU-NII-3/ISM
5.925to6.425GHzU-NII-5
6.425to6.525GHzU-NII-6
6.525to6.875GHzU-NII-7
6.875to7.125GHzU-NII-8 Note: The available bands and channels are dependent on the configured regulatory domain (country) |
Modulation technology | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps |
Modulation mode | 11b: DSSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM 11be: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM |
Maximum transmit power | 6G: 26 dBm 5G: 26 dBm 2.4G: 26 dBm Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations |
Adjustable power granularity | 1 dBm |
Reset/restoration to factory default | support |
Kensington Lock | support |
Installation | wall mounting/ceiling mounting |
LED | Alternating flashing mode, yellow/green/blue for different working states |
Temperature | Operating temperature: -10°C to +50°C Storage temperature: -40°C to +70°C |
Humidity | Operating humidity: 5% to 95% (non-condensing) Storage humidity: 5% to 95% (non-condensing) |
Protection class | IP41 |
Overall power consumption | Power Source | 6GHz/5GHz MIMO | 2.4GHz MIMO | Link speed | PSE | power consumption |
802.3at | 2*2 | 2*2 | 2.5Gbps | N | 16.4W |
802.3af | 1*1 | 1*1 | 2.5Gbps | N | 13.6W |
DC | 2*2 | 2*2 | 2.5Gbps | Y | 33.9W |
Safety Standards | IEC/EN 62368-1 GB 4943.1 |
EMC Standards | EN 301 489-1 EN 301 489-3 EN 301 489-17 EN 60601-1-2 EN 55032 EN 55035 | CISPR 32 CISPR 35 AS/NZS CISPR32 ICES-003 Issue 7 GB/T 9254.1 GB/T 9254.2 GB 17625.1 GB 17625.2 | IEC/EN 61000-4-2 IEC/EN 61000-4-3 IEC/EN 61000-4-4 IEC/EN 61000-4-5 IEC/EN 61000-4-6 IEC/EN 61000-4-8 IEC/EN 61000-4-11 IEC/EN 61000-3-2 IEC/EN 61000-3-3 |
Radio Standards | ETSI EN 300 328 ETSI EN 301 893, FCC Part 15E, ETSI EN 300 440 ETSI EN 303 687 |
RoHS Standards | DIRECTIVE 2011/65/EU (EU) 2015/863 |
Health Standards | EN 50385:2017 EN IEC 62311:2020 |
MTBF (25°C) | 2379224 hours |
