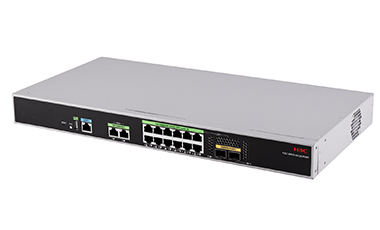

WSG1812X-PWR
H3C
New
1 Year
| Quantity: | |
|---|---|
The WSG1812X-PWR Wireless Integrated Multi-Service Gateway includes AP license as following by default, which protects customer’s investment to maximum, which also give SMB/SME a great opportunity to add new AP with the wireless network expansion without additional cost. The number of licenses is up to 64, and 32 licenses are built-in by default. Which means WSG1812X-PWR can manage 32 ordinary AP or 64 wall-plate AP by default. Need to purchase extra license to enlarge the ordinary AP number. (Version supported since WSG1800X-CMW710-E5623)
model | AP license by default |
WSG1812X-PWR | 32 |
AC Model | Max AP Qty. | License | ||
WA6020/WA6120/WA6126/WA6120X | WA6022H/WA6120H | Default | Add-on | |
WSG1812X-PWR | 64 | 0 | 32 | 32 |
0 | 64 | 32 | 0 | |
32 | 32 | 32 | 16 | |
The WSG1812X-PWR Wireless Integrated Multi-Service Gateway integrates PoE, gateway, security and AC function in one box, which is perfect for SOHO, SMB and SME environment. WSG1812X-PWR supports full enterprise controller feature sets, in addition, WSG1812X-PWR supports gateway function, such as PPPOE, NAT, dynamic IP address, and static IP address setting function.
The WSG1812X-PWR all LAN ports support 802.3af/802.3at PoE function, which saves TCO to customer’s existing environment and reduce the single points of failure at the same time. Single port can provide maximum 30W (150W in total of whole machine) providing power to connected devices, such as IP phones, wireless APs, and high-power cameras.
In addition to 802.11a/b/g/ac AP management, the WSG1812X-PWR can work together with H3C 802.11ax based SMB APs (See ordering information for details) to provide wireless access speed several times faster than a traditional 802.11a/b/g/ac/ network.
In a wireless network of centralized forwarding mode, all wireless traffic is sent to an AC for processing which the forwarding capability of the AC may become a bottleneck. Especially on wireless networks where APs are deployed at branches, ACs are deployed at the headquarters, and APs and ACs are connected over a WAN. In this scenario, Distributed forwarding is more suitable. The WSG1812X-PWR supports both distributed forwarding modes and centralized forwarding mode and it can set SSID based forwarding as needed.
Item | WSG1812X-PWR |
Dimensions (WxDxH) | 440*220*43.6mm |
Weight | 2.9kg |
Wireless throughput | 4Gbps |
Port | LAN：2*SFP Plus + 12*PoE+ WAN：2 GE + 1*USB |
Power supplies | 100V AC~240V AC:50/60Hz |
PoE output budget | 12*PoE+, 150W whole machine |
Operating and storage temperature | 0℃~45℃/-40℃~70℃ |
Operating and storage relative humidity | 5%~95% |
Safety Compliance | UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 EN60601-1-2 FDA 21 CFR Subchapter J |
EMC | ETSI EN 300 386 V1.3.3:2005 EN 55024: 1998+ A1: 2001 + A2: 2003 EN 55022 :2006 VCCI V-3:2007 ICES-003:2004 EN 61000-3-2:2000+A1:2001+A2:2005 EN 61000-3-3:1995+A1:2001+A2:2005 AS/NZS CISPR 22:2004 FCC PART 15:2005 GB 9254:1998 GB/T 17618:1998 |
MTBF | ≥50000hours |
Software specifications
Item | Feature | WSG1812X-PWR |
Basic functions | Number of managed APs by default | 32 ordinary AP or 64 wall-plate AP |
Maximum number of managed APs | 64 | |
Maximum users of authentication | 1024 | |
802.11MAC | 802.11 Protocols | √ |
The number of SSID of whole machine | 32 | |
SSID hiding | √ | |
11G protection | √ | |
11n only | √ | |
Use number limit | Supported: SSID based, per RF based | |
Keepalive | √ | |
Idle | √ | |
Multi-country code assignment | √ | |
Wireless user isolation | Supported: VLAN based wireless users 2-layer isolation SSID based wireless user 2-layer isolation | |
20MHz/40MHz auto-switch in 40MHz mode | √ | |
Local forwarding | Local forwarding based on SSID+VLAN | |
CAPWAP | Automatic AP registration | √ |
AC discovery (DHCP option43, DNS) | √ | |
IPv6 tunnel | √ | |
Clock synchronization | √ | |
Jumbo frame forwarding | √ | |
Assign basic AP network parameter through AC | Supported: Static IP, VLAN, connected AC address | |
L2/L3 connection between AP and AC | √ | |
NAT traversal between AP and AC | √ | |
Roaming | Intra-AC, Inter-AP L2 and L3 roaming | √ |
Inter-AC, Inter-AP L2 and L3 roaming | √ | |
GW Features | NAT | √ |
PPPoE | √ | |
DDNS | √ | |
SSL VPN | √ | |
IPSEC VPN | √ | |
RIP | √ | |
GRE | √ | |
Access control | Open system, Shared-Key | √ |
WEP-64/128, dynamic WEP | √ | |
WPA,WPA2,WPA3 | √ | |
TKIP | √ | |
CCMP | √(11n recommended) | |
SSH v1.5/v2.0 | √ | |
Portal authentication | Supported: Remote Authentication, external server | |
Portal page redirection | Supported: SSID based, AP Portal page push | |
Portal by-pass Proxy | √ | |
802.1x authentication | EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only) | |
Local authentication | 802.1X, Portal, MAC authentication | |
LDAP authentication | 802.1X and Portal EAP-GTC and EAP-TLS supported by 802.1X login | |
AP location-based user access control | √ | |
Guest Access control | √ | |
VIP channel | √ | |
ARP attack detection | Supported: Wireless SAVI | |
SSID anti-spoofing | SSID + user name binding | |
AAA server selection based on SSID and domain | √ | |
AAA server back up | √ | |
Local AAA server for wireless user | √ | |
TACACS+ | √ | |
QoS | Priority mapping | √ |
L2-L4 packet filtering and traffic classification | √ | |
Rate limit | Supported with granularity of 8Kbps | |
802.11e/WMM | √ | |
Access control based on user profile | √ | |
Intelligent bandwidth limit (equal bandwidth share algorithm) | √ | |
Intelligent bandwidth limit (user specific) | √ | |
Intelligent bandwidth guarantee | Supported: Free flow for packets coming from every SSID When traffic is not congested, and guarantee a minimum bandwidth for each SSID when traffic is congested | |
QoS Optimization for SVP phone | √ | |
CAC(Call Admission Control) | Supported: based on user number/bandwidth | |
End-to-end QoS | √ | |
AP upload speed limit | √ | |
RF management | Country code lock | √ |
Static channel and power configuration | √ | |
Auto channel and power configuration | √ | |
Auto transmission rate adjustment | √ | |
Coverage hole detection and correction | √ | |
Load balancing | Supported: based on traffic, user & frequency (dual-frequency supported) | |
Intelligent load balancing | √ | |
AP load balancing group | Supported: auto-discovery and flexible setting | |
Security | Static blacklist | √ |
Dynamic blacklist | √ | |
White list | √ | |
Rogue AP detection | Supported: SSID based, BSSID, device OUI | |
Rouge AP countermeasure | √ | |
Flooding attack detection | √ | |
Spoof attack detection | √ | |
Weak IV attack detection | √ | |
WIPS/WIDS | Supported: 7-layer mobile security |
